General Description
The Sita Manual Call Point allows for user activation of the fire alarm system. Once
operated the device latches into the alarm position and requires manually resetting
via a special key. The MCP is an addressable unit that attaches to the loop. Digital
communication technology to the control panel is implemented allowing for accurate
data transfer at high transmission speeds.
Before Installation
The MCP must be installed in compliance with the control panel installation manual.
The installation must also meet the requirements of any local authority.
Spacing
Fike recommends spacing of call points in accordance with any local authority.
Device Installation
All wiring must be installed in compliance with the recommendations laid out by any local authority as well as any special
recommendations documented in the control panel installation manual. All wiring must be installed in compliance with
the recommendations laid out by any local authority as well as any special recommendations documented in the control
panel installation manual. The cabling used should be of a 2-core 1.5mm
following characteristics:
Max Capacitance Core to Screen ...................................................180pF / m
Max Capacitance Core to Core ......................................................100pF / m
Max Inductance ..............................................................................1.0mH / km
Max Resistance Two Core Screened 1.5mm² ................................12.1Ω / km
It is to be wired in the form of a screened 2-core loop returning to the control panel. The use of spurs on this
system is not permitted. Cables may be terminated into the connectors, as shown overleaf. If the device is flush
mounted then the loop cabling must be attached to the device via a suitable connection block (not supplied). Cut off
crimp fork terminals, strip ends for desired length and twist conductor strands together neatly as shown below. Terminate
your cables directly into a flying terminal block. If using a metal back box, do not connect the screen to the back box
earth terminal or allow it to come into contact with the metal box
This document is only intended to be a guideline and is not applicable to all
situations. Information subject to full disclaimer at www.fike.com/disclaimer
INSTALLATION AND MAINTENANCE
INSTRUCTIONS

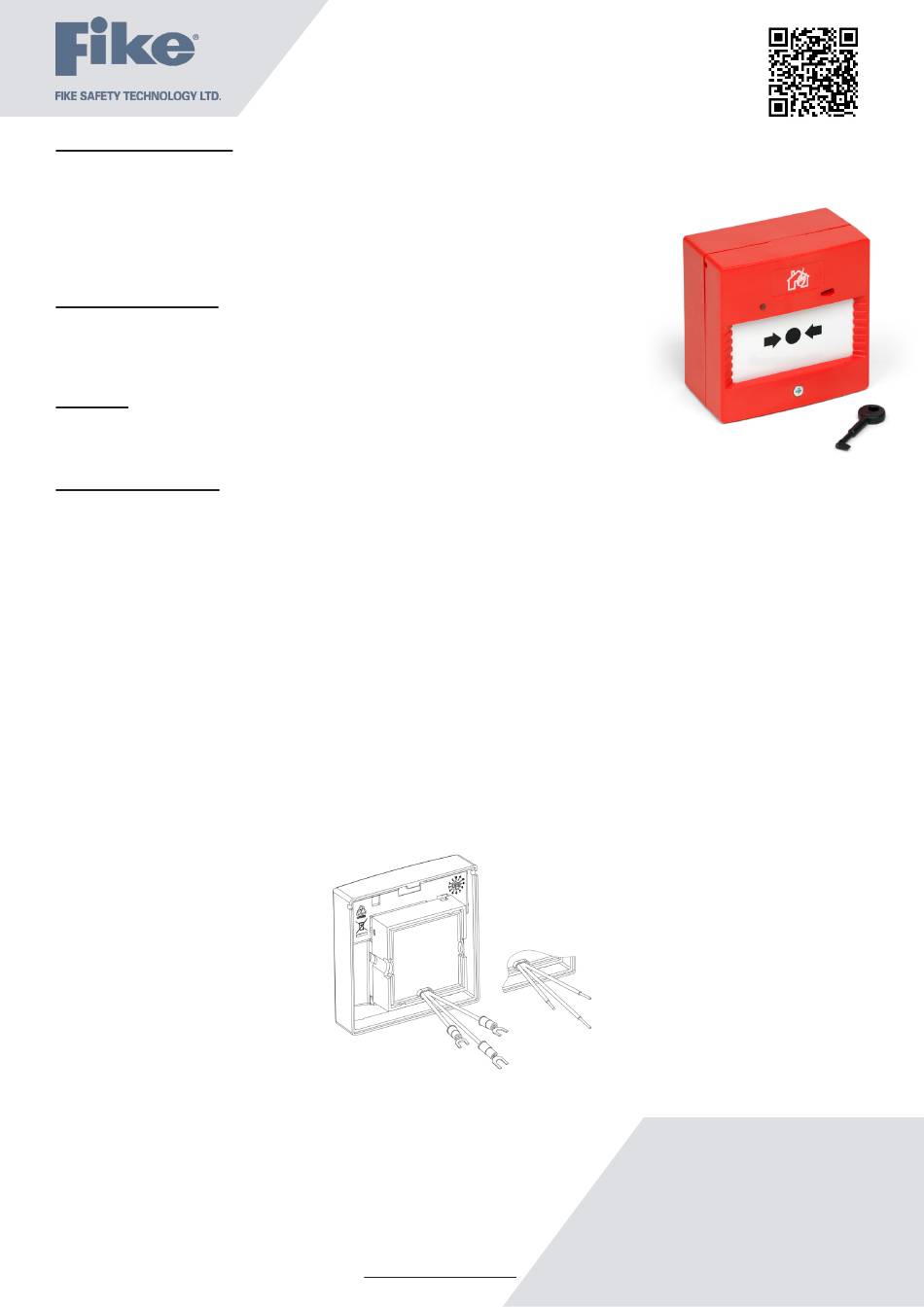

403-0006 SITA MANUAL CALL POINT
http://www.fike.co.uk/
resource-downloads/addressable/
screened, fire resistant type, with the
2
Document No. 26-1075 Issue 6
Subject to change
