INSTALLATION AND MAINTENANCE INSTRUCTIONS
803-0006 Sita Loop I/O Module Mk2

General Description

The Loop I/O module provides an interface between ancillary devices and the loop. It can be configured as an input
allowing for reporting from other systems / devices or as an output to control external systems. Digital
communication technology to the control panel is implemented, allowing for accurate data transfer at high
transmission speeds. This device is only compatible with the Sita200plus, Duonet and Quadnet range of control
panel.

Before Installation

The I/O module must be installed in compliance with the control panel installation manual. The installation must also
meet the requirements of any local authority and BS5839 Pt1 : 2002 + A2 : 2008.

Positioning

The module should be mounted securely and care should be taken to ensure the device is accessible for future
maintenance.

Device Installation

All wiring must be installed in compliance with the recommendations laid out by BS5839 Pt1 : 2002 as well as any
special recommendations documented in the control panel installation manual. The cabling used should be of a
2
2-core 1.5mm screened, fire resistant type, and is to be wired in the form of a screened 2-core loop
returning to the control panel. The use of spurs on this system is not permitted. Care should be taken when
terminating devices to ensure all cables are correctly sleeved and connections are secure. Improper connections
will prevent a system from responding properly in the event of a fire.
The Loop IN +Ve (positive) and the Loop OUT +Ve (positive) connections are split within the module, for cable
continuity readings at the commissioning stage they must be temporarily removed and connected through. Please
remember that all high voltage testing must be carried out before the installation of the electronics, otherwise the
electronics will be damaged. Please also note that the SCRN terminal should only be connected to the loop screen
and NOT the building earth.
Once all testing has been carried out on the cabling and continuity & insulation has been proven, the I/O Unit can
be connected.

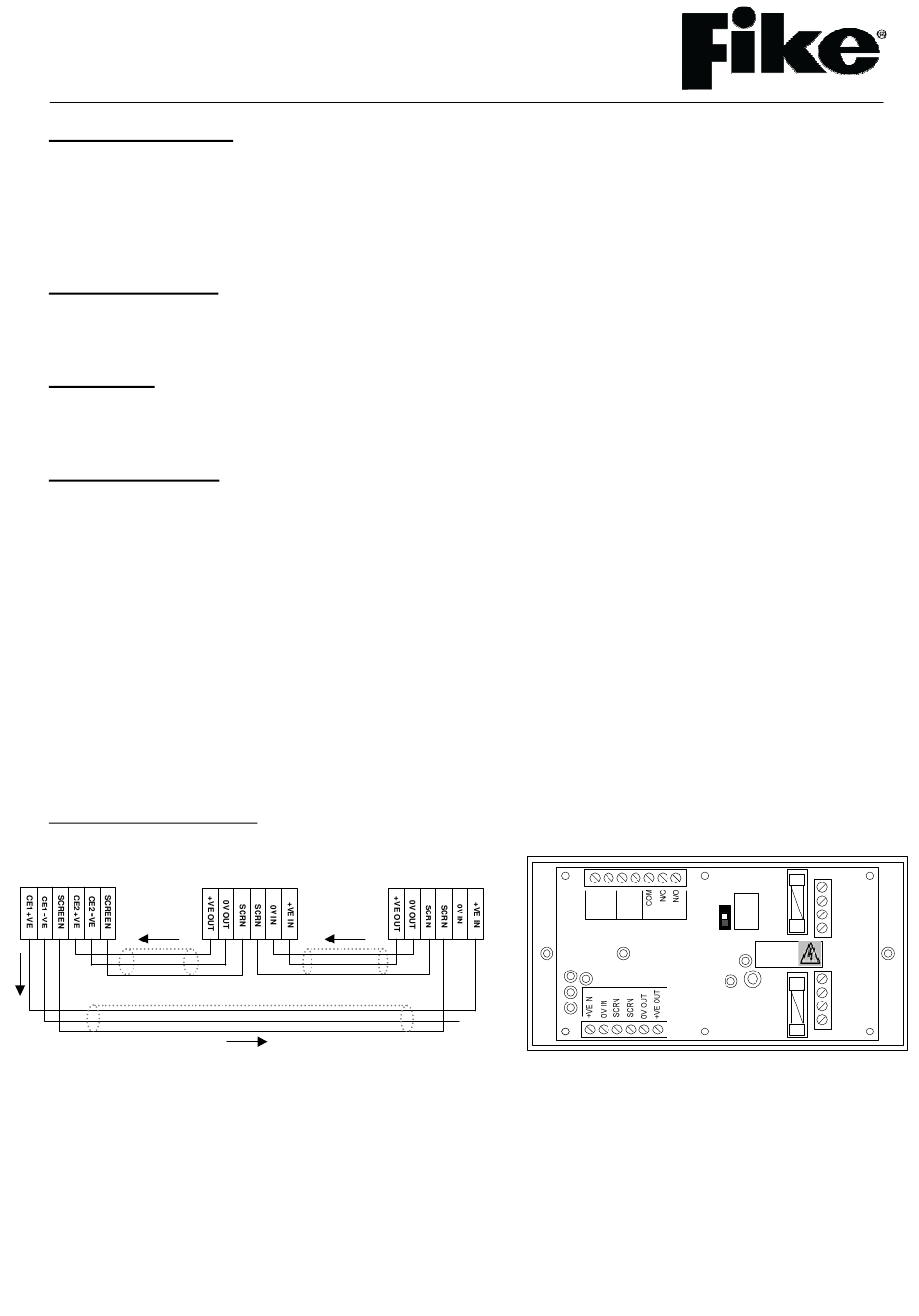

Connection Schematic

CONTROL PANEL
(LOOP END 1) (LOOP END 2)
Please see the circuit boards for actual locations of each connection
Before installing the module remember to note the serial number of the device (located on the rear of the unit) on to
your drawings or configuration sheets to enable you to prove its location later. The address allocation for the device
is carried out automatically by the control panel whilst in initialisation mode, so addresses do not need to be set
manually. See the system Installation and Operating Instructions for further details.
LOOP I/O MODULE
(LAST DEVICE ON LOOP)
terminal.
LOOP I/O MODULE
(FIRST DEVICE ON LOOP)
+ - + -
680R FR
LED
3K3 EOL
LOW
ON
AL
VOLTAGE
MAX LOAD
230V 3A
FUSES = 3.15AT
LOOP
26-0555 Issue 6
NC2
COM2
NO2
EARTH
CAUTION
High Voltage
may be
present
NC1
COM1
NO1
EARTH
