D A B 1
S P E C I F I C A T I O N S
DAB1
DAB1 Distributed Audio System
6-Zone, 4-source distributed audio and
control system
Can be controlled by up to 6 optional
Sonance keypads (DAB1 or K2), included
DAB1 remote or RS-232 connection
Built-in FM/AM tuner w/12 presets
Extensive macro capability (from keypads,
remote or RS-232 control)
6 built-in 30 watt x 2 power amplifiers
Programmable, common, and zone-specific
IR outputs maximize system control
flexibility
Line-level audio outputs, IR links and sync
connections allow multiple DAB1s to be
bridged into a single system (up to 4
DAB1s for up to 24 zones)
DAB Program Manager programming
software makes it easy to configure even a
sophisticated system
Individual Zones can be set up for Max
volume, default ("turn-on") volume, paging
volume, bass, treble, and balance
Input level matching keeps all external
sources at same volume level
Specifications:
Tuner: AM/FM Domestic and International
Source Inputs: 4 sources (either internal tuner
and 3 external sources or 4 external sources)
Audio Outputs: 6 speaker level outs, 6 line
level outs (fixed or variable)
Power Output: 30 watts RMS
Amplifier: Class AB, THD 0.05%, 20Hz –
20kHz @ 8 ohms
Expansion: Up to 24 zones (three additional
DAB1 systems) via RCA outputs
Voltage: 110V or 230V (by qualified service
personnel), 2 switched 110 volt outlets on
rear of DAB1
IR Total: 14 outputs - 4 programmable, 4
common, 6 individual zone
Network Connections: RS232 and RS485
Shipping Weight: 42 lbs. (19 kgs)
Accessories

DAB1 Keypad

Pre-programmable in-wall keypad.
Extensive macro capability from any button
3 Control levels: Press, Press Twice, Press-
and-Hold
4 Interchangeable hard source buttons.
Buttons can be renamed with labels
included in each DAB 1 keypad box.
Built-in IR receiver (defeatable)
Keypad backlighting
(adjustable/defeatable)
Easily programmable with DAB1 Program
Manager software
Mounts in a single-gang electrical box
Includes white bezel — other colors (black,
almond, ivory) available separately
Overall Dimensions (WxHxD): 2.75" x 4.5" x
1.6" (69.8mm x 114.3mm x 40.6mm)
In Wall Dimensions (WxHxD): 1.75" x 4.1" x
1.6" (44.4mm x 104.1mm x 40.6mm)
DAB1 Remote
Volume, source and mute controls for zone
Dedicated tuner control buttons (band,
tuning, preset)
Programmable source control buttons
All zones on ('Party Mode') and all zones
off controls
6 Zone System

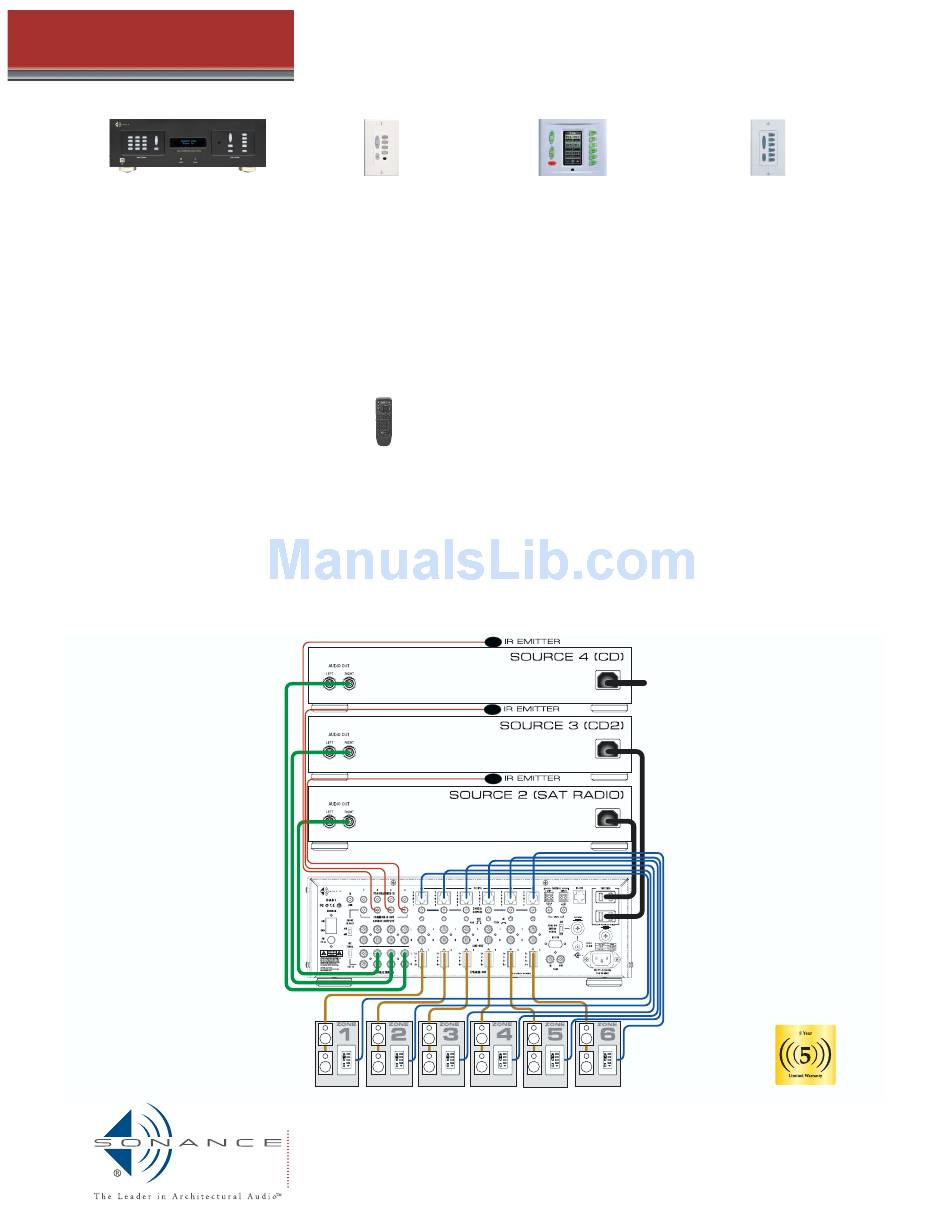

DAB1
DAB1
DAB1
KEYPAD
KEYPAD
KEYPAD
•212
SONANCE
AVENIDA FABRICANTE
SAN CLEMENTE
©2004
.
.
SONANCE
ALL RIGHTS RESERVED
SONAMP IS A REGISTERED TRADEMARK OF SONANCE
ALL OTHER TRADEMARKS ARE TRADEMARKS OF THEIR RESPECTIVE COMPANIES
.
.
TAKE THE TOUR AT WWW
SONANCE
COM
K2 Keypad
Programmable in-wall keypad with
touchscreen control
Backlit LCD touchscreen displays relevant
control buttons for selected source
6 Interchangeable hard source buttons
Membrane kit included for re-labeling of
source buttons
Built-in IR receiver and IR output (defeatable).
Speaker relay output w/status input
K2 Program Manager software for easy
programming and configuration
Mounts in a double-gang electrical box
Includes white bezel — other colors (black,
almond, ivory) available separately
Specifications:
One IR output (200mA)
One half-duplex RS-485 port (RJ 45
connection). For use with future RS-485
compatible
products
One power sense input
One relay output
One monitored auxillary input
One keypad sync I/O port for keeping multiple
keypads synched to the same page/source
Fully programmable/configurable using Nav
Program software
Software includes a tool to create a scrollable
list of CD titles or songs. CD titles can also be
manually programmed
Overall Dimensions (WxHxD): 4.5" x 4.5" x
1.83" (114.3mm x 114.3mm x 46.5mm)
In Wall Dimensions (WxHxD): 3.66" x 3.23" x
1.83" (93mm x 82mm x 46.5mm)
Includes programming cable
Includes white faceplate - additional colors
available: black, ivory and almond
DAB1
DAB1
DAB1
KEYPAD
KEYPAD
KEYPAD
,
92672-7531 •
:800-582-7777• 949-492-7777•
CA
TEL
.
ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
K1 Keypad
Programmable In-Wall Keypad
Single gang, shallow depth
Next generation to Navigator Master and
associated components
Easy to use and program
Flexible programming capabilities for use
with a majority of control systems
Easily Programmable via Navigator Manager
Software
Specifications:
Hard Key Buttons: Volume Up/ Down, Channel
Up/Down, 6 interchangeable hard Function
Keys and Power On/Off.
One IR output (200mA)
IR passthrough
One half-duplex RS485 port (RJ 45
connection) for future products. Not active at
this time.
One power sense input
One speaker relay trigger output
One keypad sync I/O port for keeping multiple
keypads synched to the same page/source
Programming Port: 3-pin serial
Color: Decora® White
Fits in single-gang J-Box or P-Ring
Comes with extra membrane buttons for
easy customization
Includes programming cable
Optional wallplate colors: black, almond, ivory
Overall Dimensions (WxHxD): 2.75" x 4.5" x
1.6" (69.8mm x 114.3mm x 40.6mm)
In Wall Dimensions (WxHxD): 1.75" x 4.1" x
1.6" (44.4mm x 104.1mm x 40.6mm)
:800-538-5151•949-361-5151
FAX
.
33-3368/8.04
