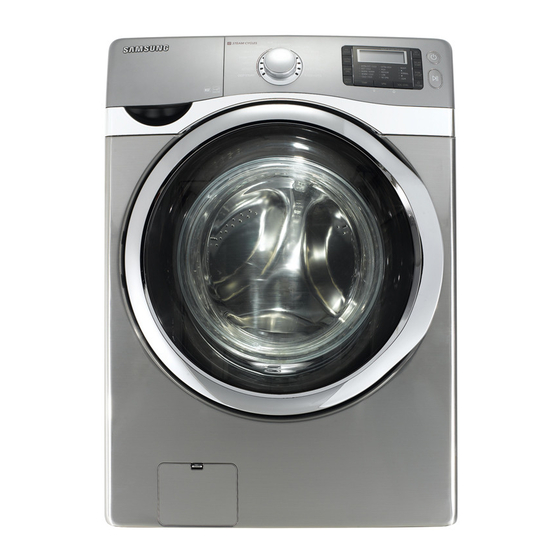

Samsung WF511AB Series Fast Track Troubleshooting

Model:
WF511AB*
Quick Test Mode
Note:
This test erases all faults and memory

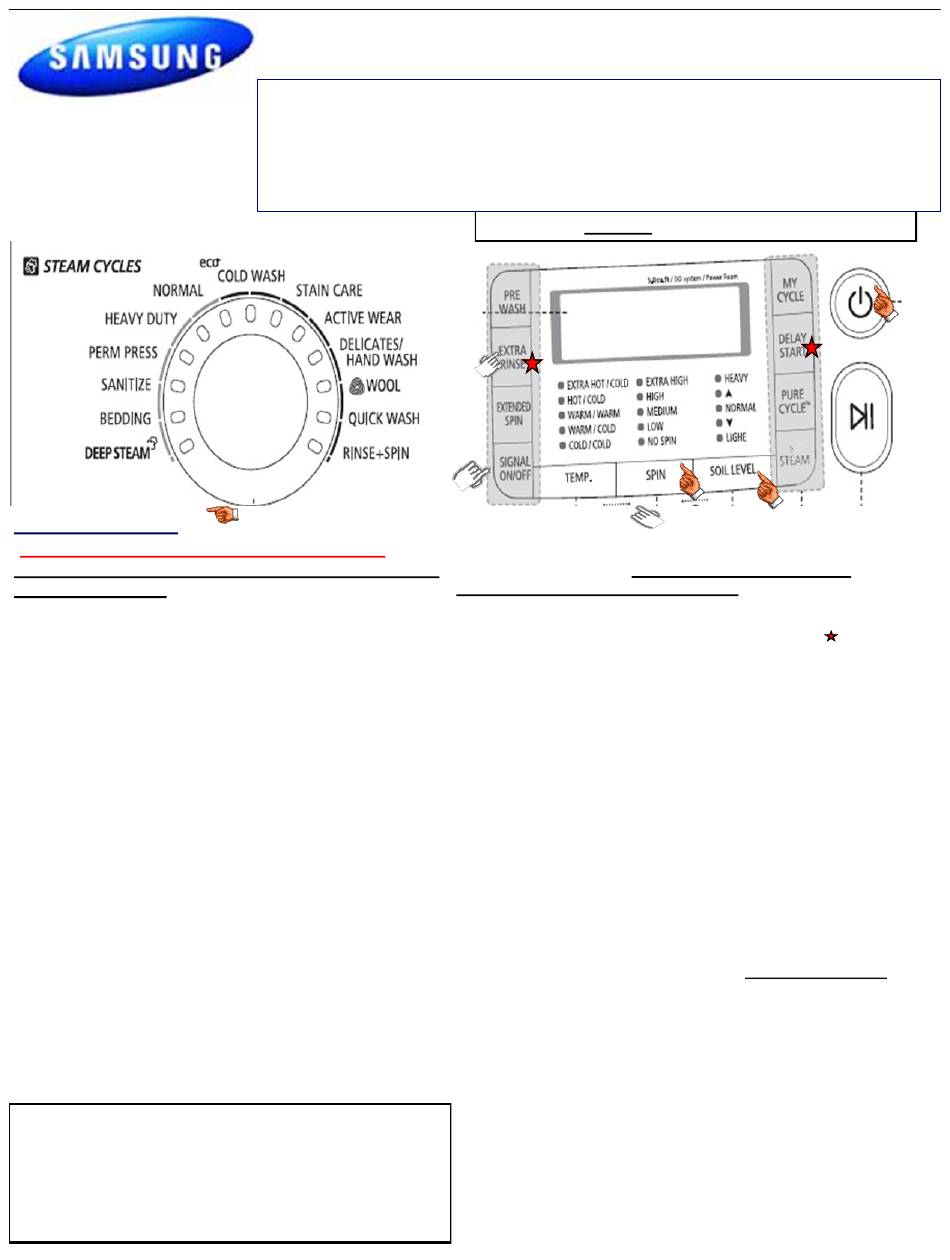

To enter press Soil, Signal, & Power simultaneously
with the power off.
1. All LED's light up and the washer beeps as it en-
ters the Quick Test Mode.
2. The unit displays the software version for a
second then clears the EEprom. If EEEE is dis-
played the PCB ass'y is defective.
3. When the version is displayed, turn the Jog-Dial
CCW so that the version disappears. Each step of
the Jog-Dial displays the following; cycle count, wa-
ter level frequency, water temperature, EP condition,
test, spin, version.
Press the following keys to test the various compo-
nents.
Water valves: (lock the door first)
cycle in this order: Pre-Wash, Cold, Bleach, Cold &
Bleach, Hot & then off.
Door Lock/Unlock: Press Spin Key.
Circulation/Drain Pump: Press Signal Key.
Water heater: Press Soil Level Key.
Motor test: When either Test or Spin is displayed on
the LCD, press Start/Pause key.
Test mode: You can test the clockwise and counter-
clockwise movement of the motor. However, the water
level must satisfy the heater water level (24300) to enter
Test mode.
Spin mode: You can test the motor at a high rpm.
EEPROM Clear Check
Power on. Press Delay Start, Signal and Power Key at
the same time. Good = Good Fail = FAiL
All memory will be cleared, including Fault Codes.
This should be done when the Main PCB is re-
placed.
WF511
Fast Track Troubleshooting
IMPORTANT SAFETY NOTICE – "For Technicians Only" This service data sheet is
intended for use by persons having electrical, electronic, and mechanical experience
and knowledge at a level generally considered acceptable in the appliance repair trade.
Any attempt to repair a major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible, nor assume any liability for
injury or damage of any kind arising from the use of this data sheet.
:
Press Temp Key to
12/21/2011
Publication # rsWF511 Revision Date 12/21/2011
Service Mode:
This mode allows more detailed operation tests and trou-
bleshooting, to enter press Signal & Extra Rinse
simultaneously with the power on.
While in Service Mode the following tests can be per-
formed:
Quick Spin Test = Delay Start & Extra Rinse:
erates the drum motor from 0 to maximum RPM over a
few minutes. Note: Stay with the washer during this test,
out of balance detection is bypassed and the door may
not lock. Press the Start/Pause button during the test to hold
its spinning speed for 10 minutes before going back to Quick
Spin Test Mode.
Cycle Count = Press the Signal button to see how many
times the unit was used.
Soft Ware # = Press the Soil button to see the software ver-
sion information.
Fast Time Down = Start cycle then enter service mode.
Press the Temp button to advance to the next cycle.
Fault Code Test = Press the Spin button to view the stored
fault codes – then turn Jog Dial to view error codes (Push
Start/Pause while the code is displayed to view the cycle num-
ber when the error occurred).
Peripheral (Main PCB) input Tests; Select Extra Rinse
(display shows ln).
1. Water Temperature; Turn the Jog-Dial so that the Heavy
Duty LED is turned on. The Water Temperature will be dis-
played in Fahrenheit.
2. Door status; Turn the Jog-Dial so that the Permanent
Press LED is turned on. The door status will be displayed
(OP if open, CL if closed).
3. Door lock; Turn the Jog-Dial so that the Sanitize LED is
turned on. The door lock Switch status will be displayed (UL if
unlocked, Lo if locked).
4. Water Frequency; Turn the Jog-Dial so that the Bedding
LED is turned on. The Water Frequency will be displayed.
This accel-
1
