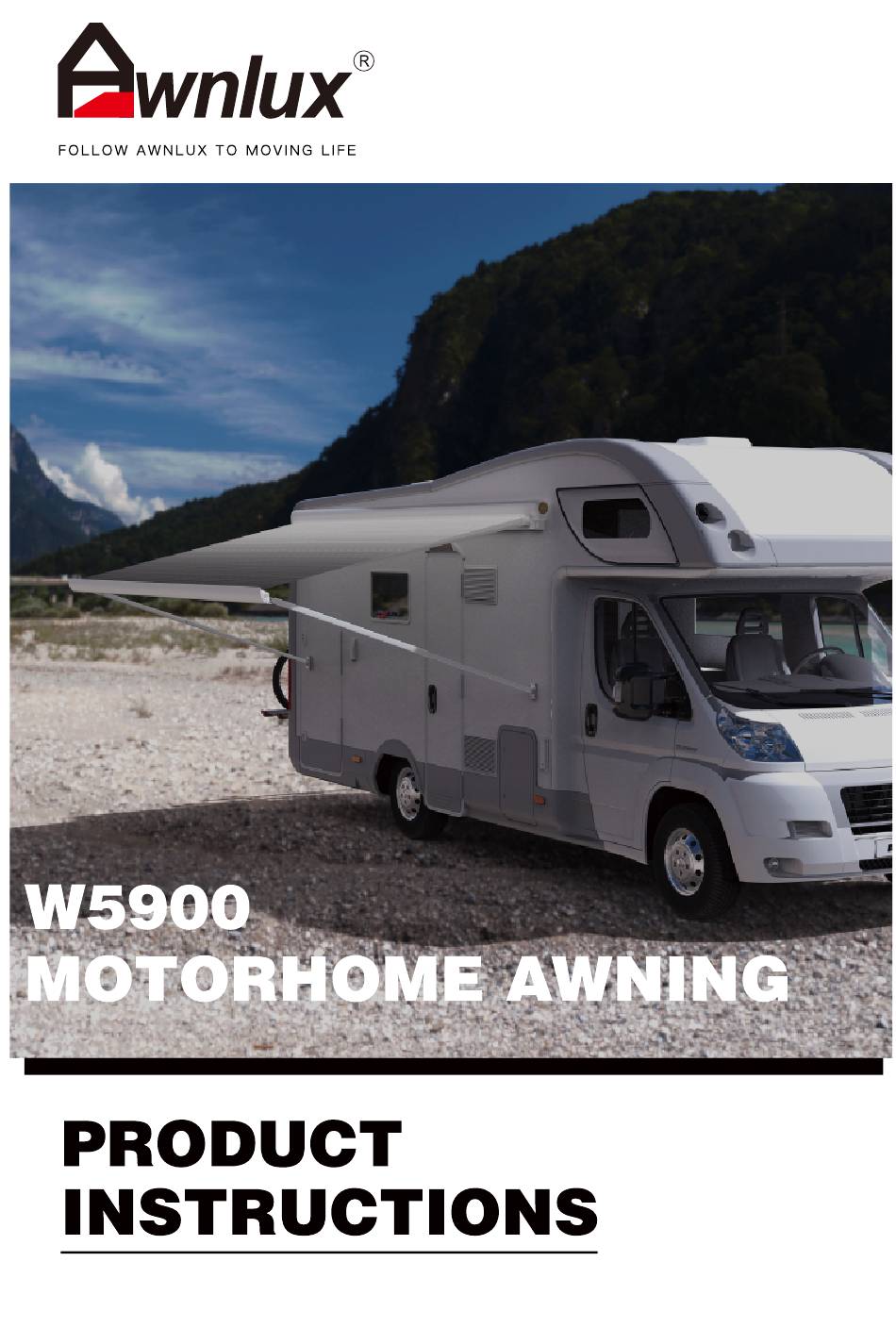

Summary of Contents for AWNLUX W5900
-
Page 2: Package Contents
Package Contents Manual Control Bracket Leg Bracket Handle Crank Manual Motorized and Crank handle Bracket Leg Bracket Switch Handle Crank Adjust Stick Manual P . 1... - Page 3 Installatin instruction 1. The installation must be carried out by qualified persons. 2. Check the installation area of the car body, and confirm that the installation part has been strengthened. (if not strengthened, you can ask the RV factory to strengthen it.) 3.
- Page 4 Installatin instruction 6. Follow the steps as shown to hang the awning on the brackets and adjust it to the proper position. bracket When the mounting position of awning is not vertical, please add a spacer between the mounting bracket and the vehicle body, to ensure that the bracket can be installed vertically and the awning can be opened normally.
- Page 5 If your awning is motorized operation, wiring and switch installation are as follows(Pic.1 Blue White Black Pic.1 1.Please cut the holes on the car according to the switch bottom shell measurements(It is recommended to determine the opening size according to the physical measurement).
- Page 6 Usage lnstallations Fig.1: In order to avoid unnecessary strain on the awning as well as on the vehicle side, we suggest to take out the legs at about 1 m from the opening. Fig.2: Grasp the leg near its hinge joint and pull it towards you. Fig.3: Unhook the leg and pull out the leg as show in the figure.After extending the awning completely, adjust the legs at the proper height.
- Page 7 The support poles are hidden inside the awning front bar. Support Pole Adjust the Pull the support poles a bit out from the support hook,then rotate the poles and keep them poles height standing on the ground. as needed. P . 6...
- Page 8 Usage lnstallations Standard pegs are 4 pieces, if you need to make your awning more stable, extra pegs and rope should be bought by yourself. Installations of the wall brackets Fabric retracting direction Please retract the fabric according to the picture Fabric winding direction as Pic.
-
Page 9: Troubleshooting
Trouble Shooting Your awning has left our warehouse with optimized adjustment.The arms may lower itself with the time.The necessary re-adjustment should be done as follows; For arms and fabric adjustments, please use ONLY the shown top bolt ! Turn the nut LEFT/RIGHT for perfect re-positioning. - Page 10 Trouble Shooting When awning can't open or closed completely, you have to make bellow adjustments by green stick; Inside motor structure When awning can't completely be open, please adjust the upper hole in "+" direction. When awning fabric completely is open, but motor still working, please adjust it the upper hole in "-"...
-
Page 11: Explode Diagram
Explode Diagram Manual control Motorized control P . 10...
