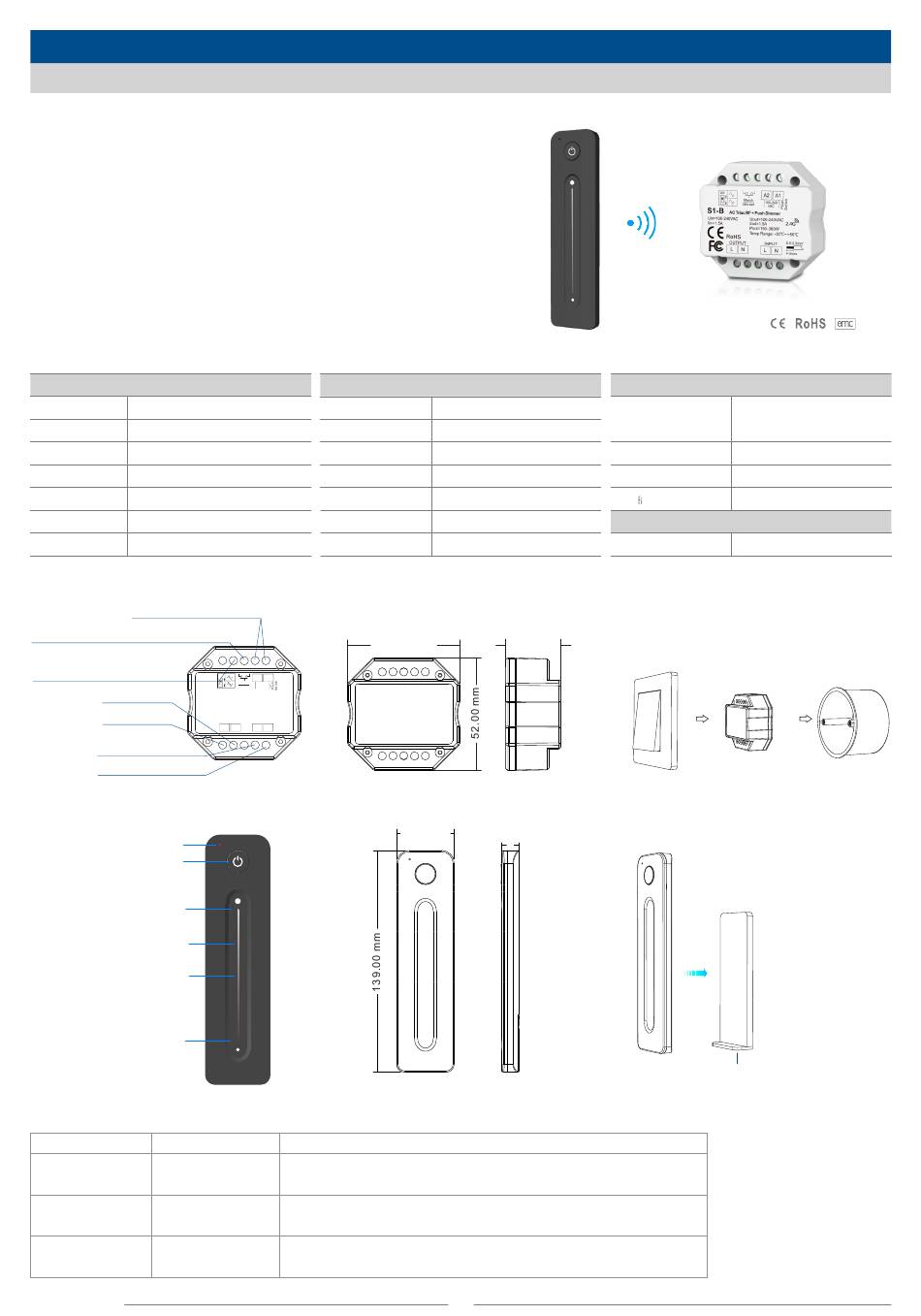

AC Triac RF + Push Dimmer Kit
Model No.: S1-B+R11
RF dimming/Leading edge or trailing edge/Min brightness settable/Push Dim/Wall junction box mounting
Features
● RF + Push AC phase-cut dimmer, 1 channel output.
● To dim and switch single color dimmable LED lamps,
traditional incandescent and halogen lights.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Min brightness can be set by key.
● Light on/off fade time 3s selectable.
● Connect with external push switch to achieve on/off and dimming function.
● Easy to be inserted into standard 86*86mm wall box.
Technical Parameters
Triac Dimmer's Input and Output
Input voltage
AC100-240V
Output voltage
AC100-240V
Output current
Max 1.5A
Output power
150-360W
Dimming signal
RF 2.4GHz + Push Dim
Dimming level
256 levels
Dimming range
0-100%
Mechanical Structures and Installations
ACPushswitch
Match / Min brightness set key
DIP switch for Leading edge
or trailing edge phase-cut select
AC N output
AC L output
AC L input
AC N input
Remote function
LED indicator
On/Off
100%
Bright touch slide
50%
1%
Compatible Load Types
Load Type
Maximum Load
200W @ 220V
Dimmable LED lamps
100W @ 110V
Triac Dimmable
200W @ 220V
LED drivers
100W @ 110V
Incandescent lighting,
400W @ 220V
HV Halogen lamps
200W @ 110V
User Manual Ver 1.0.0
LED Remote's Input and Output
Output signal
Working voltage
Working current
Standby current
Standby time
RF Control distance
52.00 mm
O N
A2
A1
Match
100-240
Min set
VAC
OUTPUT
INPUT
L
N
L
N
Due to variety of LED lamp designs, maximum number of LED lamps
is further dependent on power factor result when connected to dimmer.
Maximum permitted number of drivers is 200W divided by driver nameplate
power rating, and make sure the surge current is no more than 2 times 65A.
RF(2.4GHz)
3VDC(CR2032)
<5mA
<10μA
<1 years
30m(Barrier-free space)
26.00 mm
36.00 mm
11.00 mm
Remarks
1
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Radio Equipment(RED)
ETSI EN 300 328 V2.2.2
CE,EMC,LVD,RED
Certi cation
Environment
Operation temperature
O
Ta: -30
C ~ +55
Typical Wall Junction Box Mounting
Back holder with magnet
LVD
O
C
