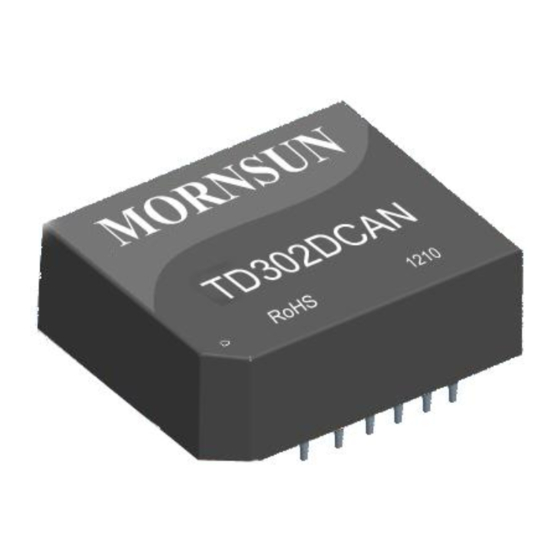

MORNSUN TD302DCAN Manual

DUPLEX UNIVERSAL CAN
ISOLATION TRANSCEIVER
MODULE
——
TD302DCAN（3.3V Power supply）
TD502DCAN（5.0V Power supply）

PART NUMBER SYSTEM

TD302DCAN
s
Port ignal type
Package
Channel number
Power distribution output
Power input
Digital bus product type

SELECTION GUIDE

Model
TD302DCAN
TD502DCAN

ELECTRICAL CHARACTERISTICS

Input Parameters Of Power
Supply
Input Parameters
Output Parameters

TRANSMISSION SPECIFICATIONS

Data Rate
The Number of Nodes

ISOLATION SPECIFICATIONS

Electrical Isolation
Isolation Voltage

EMC SPECIFICATIONS

CE
EMI
RE
EMS
ESD
RS
The copyright and authority for the interpretation of the products are reserved by MORNSUN
RoHS
type
Static current
Power dissipation
Serial interface
Pin current
CAN bus interface
The max DC voltage of bus pin
Bus protection
1Mbps (max.)
110 nodes (min.)
Two-port isolation (input and output)
2500VDC(Tested for 1 minute and leakage current < 5mA,humidity < 95%)
CISPR22/EN55022 CLASS A
CISPR22/EN55022 CLASS A
Contact ±4KV
IEC/EN61000-4-2
IEC/EN61000-4-3 10V/m

FEATURES

l Two-port electrical isolation between input
and output
l Integrated Isolated DC/DC converter
l 2500VDC isolation
l Operating temperature range:
-40℃~+105℃
l High speed data rate : 1 Mbps
l Complies with ISO 11898 standard
l An unpowered node does not disturb the bus
lines
l Connect up to 110 nodes on one bus
l Low electromagnetic radiation
l High electromagnetic immunity
l Product has complete EMC recommended
circuit

GENERAL DESCRIPTION

Duplex universal CAN isolation transceiver TD302DCAN/
TD502DCAN series are CAN bus transceiver module with
integrated power isolation power, signal isolation chip ,and
CAN transceiver chip .
The main function of Products is to switch from logic level to
CAN bus difference level, achieve signal isolation. The product
is with constant-voltage source isolation power. It can achieve
2500 VDC electrical isolation. Products can be easily
embedded in the user equipment, achieve function of CAN bus
network connection easily.
Power Input
3.0V~3.6V
4.5V~5.5V
TD302DCAN≤80mA TD502DCAN≤50mA
< 0.6W
Compatible with the CAN control port of +5V and +3.3V
≤2mA;I ≤2mA
I
TXD RXD
Up to standard of ISO-11898, twisted-pair output
-36V~+36V
Over-voltage bus protected,
high-voltage transient protected
（External Circuit Refer to Figure 1-①）
（External Circuit Refer to Figure 1-②）
（External Circuit Refer to Figure 1-③）
perf. Criteria B
perf. Criteria A
TD_2DCAN 2013.04.03-A/0
thermally protected and
Page 1 of 3
