OVERVIEW

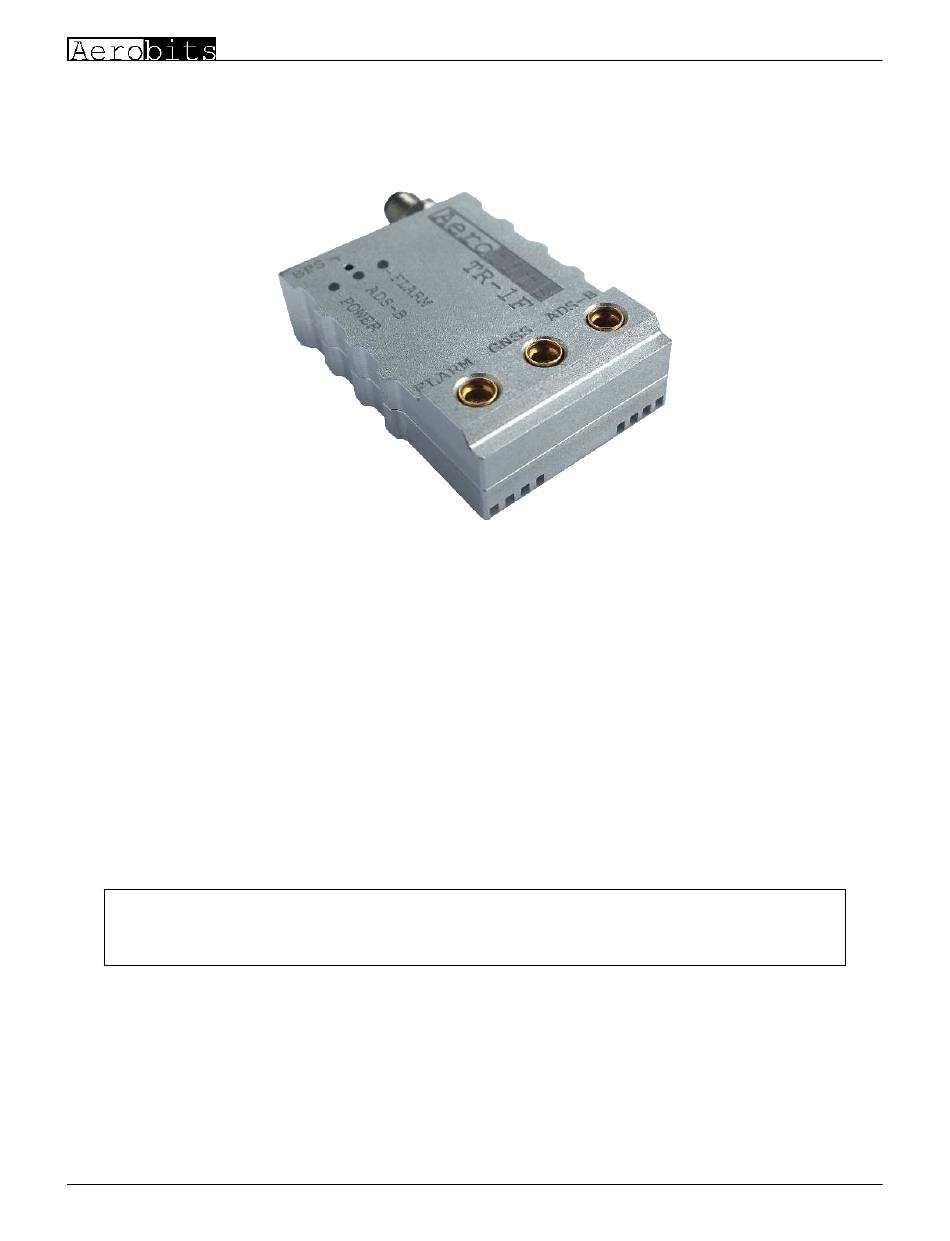

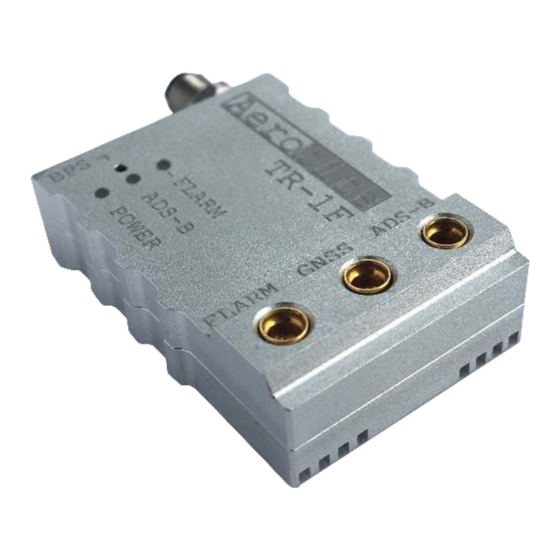

TR  1 F belongs to the generation of the smallest transceivers on market and supports two technologies: ADS­B and FLARM.
It has been developed to support civil and commercial Unmanned Aircraft Systems as well as General Aviation. The device
operates on 1090MHz and 868 MHz and allows to receive and transmit ADS  B and FALRM data with defined 0.25, 0.5 or 1 Watt
output power for ADS­B and 0,025W for FALRM. The transceiver does not require external devices to operate. It is equipped
with a high quality multi  G NSS receiver and a pressure sensor. The aluminium housing and ESD protection guarantee high
resistance of the device to work in difficult conditions. TR  1 F opens the way to the safe integration of UAS into non­segregated
airspace, implementation of the Detect and Avoid algorithms and reduce separation between airspace users.
NOTICE: The device to operate on FLARM frequency requires FLARM UAS licence. The licence can be obtained with the
device from Aerobits upon purchase.
WARNING
ICAO addresses are used to provide a unique identity normally allocated to an individual aircraft or registration.
Address becomes a part of the aircraft's Certificate of Registration and MUST be given by Civil Aviation
BASIC FEATURES
• Real­time aircraft tracking on 1090MHz and 868 MHz
• Patented FPGA  I n  T he  L oop TM technology with the capability of receiving thousands of frames per second
• Integrated GNSS source and pressure sensor
Revision: 09­March­20
This document is subject to change without notice. For technical questions, contact:
TR­1F
0.25/0.5/1 Watt ADS­B and FLARM Transceiver
Please do not use random ICAO!
Authority and registered in aircraft database.
1
TR­1F
ADS­B In/Out
Document Number: 090320
