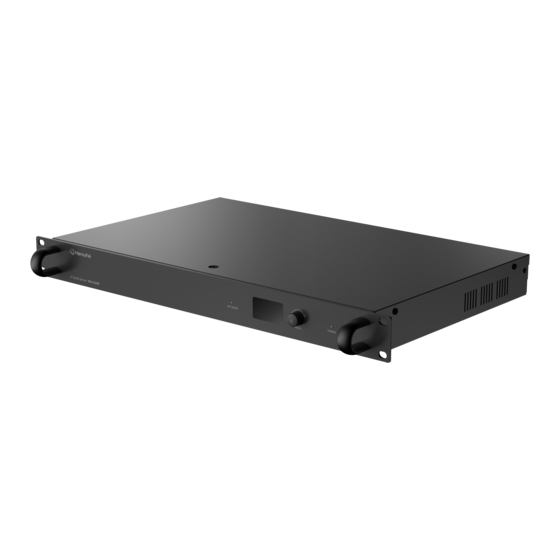

IP AUDIO SERVER
User Manual
SPA-S1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPA-S1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Hanwha Vision SPA-S1000

Summary of Contents for Hanwha Vision SPA-S1000

  • Page 1 IP AUDIO SERVER User Manual SPA-S1000...
  • Page 2 ※ Appearance, specification, etc. of the product is subject to change for performance improvements without prior notice. The latest update is available on the official Hanwha Vision website. (www.HanwhaVision.com) ※ The ID for the initial login is “admin, ” and a password should be set.
  • Page 3 overview WARNING CAUTION TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
  • Page 4 overview IMPORTANT SAFETY INSTRUCTIONS 23. Do not attempt to service this apparatus yourself. 1. Read these instructions. 24. Do not place a glass of water on the product. 2. Keep these instructions. 25. Do not install near any magnetic sources. 3.

  • Page 5: Table Of Contents

    Table of Contents OVERVIEW Important Safety Instructions ENVIRONMENT SETTINGS System Management At a Glance Network Settings Broadcast System Configuration Diagram Time Settings Connecting To Power And A Network STARTING Connecting to a PC USE AUDIO SERVER Home Screen Configuration Access Product Operation Mode Logging In System Settings...

  • Page 6: At A Glance

    overview AT A GLANCE Front Name Function Description Power switch Power on/off switch. Power input terminal Power input terminal (DC 24 V) DC (DC 24 V) DC Network Terminal Connects Network cable. NETWORK POWER MODE A button that returns the product settings to the factory default values. Press the button for approximately 12 seconds to reset and reboot the product.

  • Page 7: Broadcast System Configuration Diagram

    BROADCAST SYSTEM CONFIGURATION DIAGRAM CONNECTING TO POWER AND A NETWORK You can configure the broadcast system by connecting speakers or microphones to the audio server. The audio server provides the same operating GUI with the controller mode speaker and it can control multiple IP Audio Server speakers via button mode or the event &...

  • Page 8: Access Product

    Please refer to the manual of the Device Manager Program for more information. The Network microphone can receive power via PoE, or the DC power adapter can be used. The Device Manager Program ( ) is available on the official Hanwha Vision website (https://www.HanwhaVision.com) by clicking <Support> - <Online Tool>. ACCESS PRODUCT Various functions, including Operation Mode, System Settings, Maintenance, Environment Setting, and Operation Settings, are available on the product website.
  • Page 9 8.8.4.4). You can update to the latest firmware for the product using the device manager. Check the firmware distribution information for each product on the Hanwha Vision website (https://www.HanwhaVision.com) and download the latest firmware (modelname_version.imkp) to your PC. You can also download the latest firmware to your PC from Device Manager.
  • Page 10 start 2. When the firmware update is completed and the system is rebooted, the status will change to <Please wait Registering with the product’s initial IP address until the program starts.>. After it reaches 100%, it will change to <Success> If you connect only one product to the switch hub, it is possible to set up the password even on the web 3.

  • Page 11: Logging In

    LOGGING IN A maximum of five users can log in to the product at the same time. The <Exceed the maximum user> screen will appear if there is an attempt to log in while the maximum number of users are logged in, and it will show the currently connected PC IP addresses.

  • Page 12: System Management

    2. Click the [Upload] button in <System Upgrade>. account if they are forgotten. 3. Select the upgrade file (model name_version.imkp) that you downloaded from the official Hanwha Vision Viewing the supported menu by account website (https://www.HanwhaVision.com) in advance and click [Open].
  • Page 13 Unlock Account Setting the System Check Time For all accounts except the admin account, if you enter the wrong password more than 5 times when logging Sets the time for the system check. The system reboots automatically at the set time every day. in, the account will be locked for 30 seconds and you will not be able to log in.

  • Page 14: Network Settings

    • When the system initialization is completed, previously registered product information should The system restarts automatically if the network settings are changed. be deleted from the controller mode speaker or audio server (SPA-S1000), and you must register if you wish to use the product.

  • Page 15: Time Settings

    To accurately schedule the broadcasting time, we recommend installing a separate time server device using GPS signals or enter the audio server IP (SPA-S1000) with high time accuracy into the <Time Server Address> field of other products to synchronize the time information with the audio server.

  • Page 16: Home Screen Configuration

    ~ Source Type: The source type of the Source Device will be displayed. Go to the Official Website If you click <Hanwha>, the screen will move to the Hanwha Vision Official Website. ~ Source Priority: The priority of the Source Device will be displayed.
  • Page 17 Output Device Audio Monitoring The speakers registered as the <Zone> of the area for broadcasting will be displayed in the Output Device You can monitor the status of the Output Device speakers registered in the <Zone> of the area to broadcast. list.
  • Page 18 use audio server ~ The output monitoring device can be controlled by clicking [Play] and [Stop]. Button Mode You can broadcast either by selecting the buttons of the source device and output device connected to the The audio automatically stops 1 minute after it starts playing. product or by the set Event &...
  • Page 19 ~ Source Control: BGM or TTS lists of the selected source device are displayed. ~ Group : You can select an output group among the set groups, and duplicate selection is also possible. When you select a zone speaker to broadcast and select <Start Broadcasting> or <Stop The selected group will be displayed as highlighted.
  • Page 20 use audio server ~ Event & Preset: If you select a CP number set in the <Event & Preset> menu, it will be activated. (Up to 16 supported) If you press the number which is set as Zone or Group mode on the microphone device during the broadcast of the sound source in <Button Mode>...

  • Page 21: System Settings

    SYSTEM SETTINGS Control Mode When you run <Start Broadcasting>, <Stop Broadcasting> from the <Operate> ; <Button Mode>, you Registers the device, source, and zone and sets the Event & Preset and annual schedules. can control the zone devices with either the TCP or UDP method. If the system is initialized or the network setting (User, DHCP) is changed after you register the device, you should Depending on the UNICAST, MULTICAST setting of <Source Registration>...
  • Page 22 If you select MULTICAST, a MultiCast IP address (e.g., 224.124.0.*) and <Port> You should not use the <Controller> mode speaker and audio server (SPA-S1000) simultaneously in the same network. number are automatically allocated to the <Trans IP>. If a speaker and microphone are repeatedly registered, the device may not be controllable.
  • Page 23 Registering an RM Microphone ~ Transmission Method: If you select UNICAST, <Trans IP> will be deactivated, and the device’s IP address will be used. You can enter the <Port> number in the input window Register a microphone to broadcast via speakers. automatically or manually, and it should not overlap with another device.
  • Page 24 use audio server Register Zone Group Setting You can register the speaker to the <Zone> of the region for broadcasting. <Zone> refers to one speaker set You can set the <Zone> to be broadcast by grouping it. as an output device. 1.
  • Page 25 All Event & Preset List PUSH MONITOR CHIME POWER NET1 NET2 PUSH -6dB +3dB +6dB MONITOR CHIME VOLUME POWER NET1 NET2 -6dB +3dB +6dB VOLUME MENU PRESET MENU ALARM PREV PoE+ PRESET NEXT ALARM PREV CHIME PoE+ NEXT STATUS RESET CHIME STATUS RESET...
  • Page 26 use audio server Event Registration Setting - If you select the IP address as the microphone, the model name of the <Device Name> will be displayed and the CP can be selected from button_1~5. If you press the Contact Closure Number from among the five buttons on the left side of the microphone and press the <TALK>...
  • Page 27 Broadcasting Routing/DSP/Source Stream Settings Setting Local File Play When an event occurs, the BGM audio stored in the speaker which is selected as zone will be played. When an event occurs, you can broadcast the BGM sound source (mp3, wav) and TTS of the registered Local file playback does not support TTS sound sources, and is unrelated to the speaker's source source device to the designated zone.
  • Page 28 use audio server Annual Scheduler Schedule Setting Screen It is a screen where you can set schedules. Broadcast reservations can be set. With the scheduler, you can perform scheduled broadcasts to as many zones (output speakers) as you want using the audio source of the speaker selected as a source device in the <Source Registration> menu. The broadcast sound source can be used by directly entering sound source files (mp3, wav) or TTS phrases stored in the source device registered for the annual scheduler.
  • Page 29 ~ Select Day: During the set dates, it runs only on selected days of the week. If you select days of the week, <Everyday> and <Once> are deactivated. If you set up the <Once> or <Everyday> function, check that the set schedule is accurate on the [Weekly Calendar], [Daily ~ Once: Even during the set period of the dates, it runs only once on the first date.
  • Page 30 use audio server ~ TTS: Enter sentences with the language to be used in the <Text for TTS> and select the language and Holiday Setup Event gender in Select Speaker. Click the [Holiday] button on the scheduler settings screen - Select language: English (US, GB), German, Spanish, French, and Russian are supported. and the <Holiday>...

  • Page 31: Maintenance

    MAINTENANCE View Log You can check logs generated in the product. Failover History Management The log items are different for each product, and they are recorded when the log operation occurs. The failure history for the product can be input and managed. 1.
  • Page 32 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
