PLANO-LOCK2-ONE
OneSmart
Electronic interface unit for devices with dry contact inputs (e.g. sectional doors or automated gates).
Power supply 12-32Vdc or 12-24Vac, Two normally open output contacts: 1A 30Vdc.
Integrated 433.92MHz radio receiver for remote controls.
WiFi connection for OneSmart App.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLANO-LOCK2-ONE and is the answer not in the manual?

Questions and answers

Related Manuals for Nexta Tech PLANO-LOCK2-ONE

Summary of Contents for Nexta Tech PLANO-LOCK2-ONE

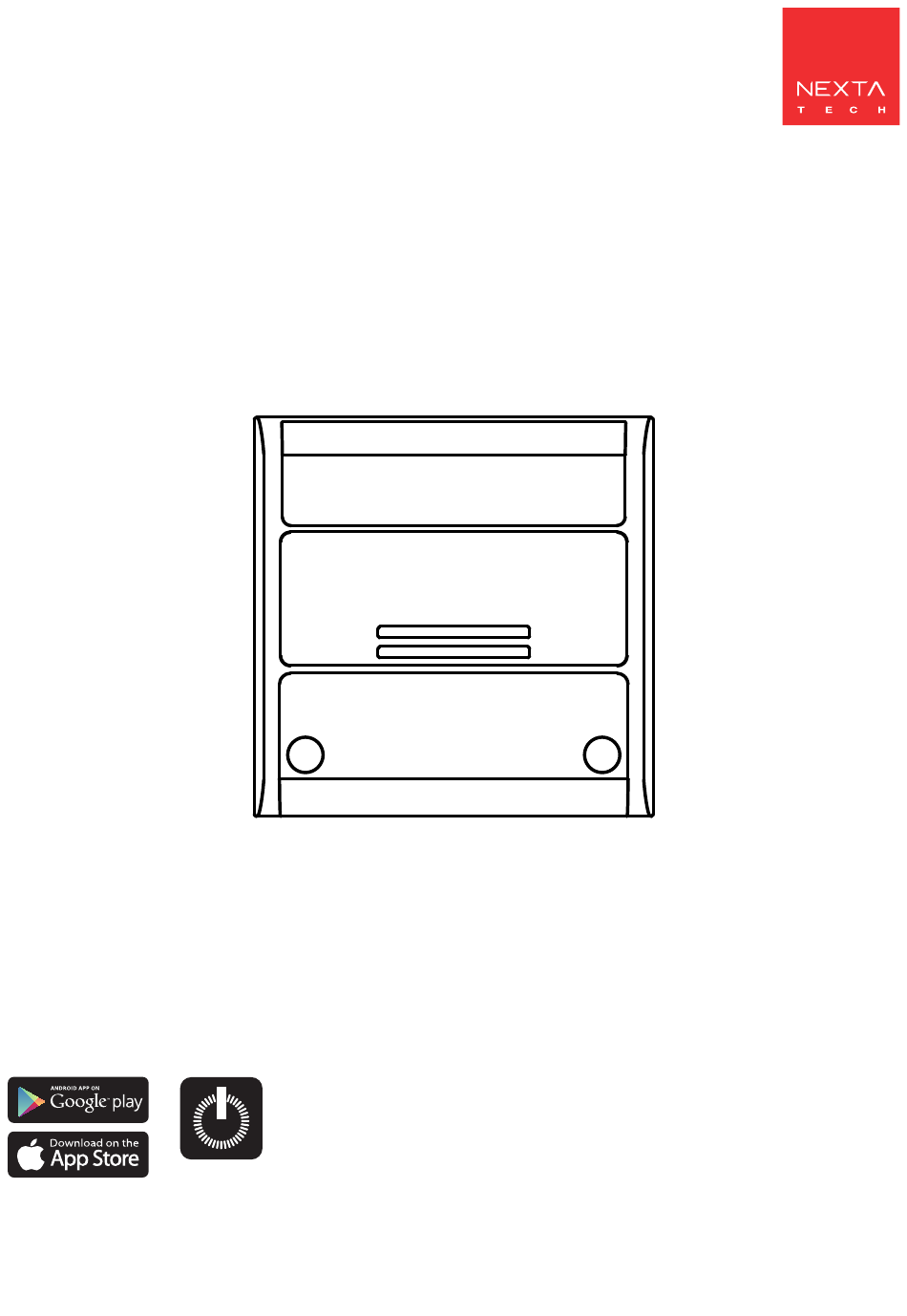

  • Page 1 PLANO-LOCK2-ONE OneSmart Electronic interface unit for devices with dry contact inputs (e.g. sectional doors or automated gates). Power supply 12-32Vdc or 12-24Vac, Two normally open output contacts: 1A 30Vdc. Integrated 433.92MHz radio receiver for remote controls. WiFi connection for OneSmart App.
  • Page 2 INDEX 1 - PRODUCT FEATURES 1.1 - TECHNICAL DATA page 3 2 - CONNECTION DIAGRAMS 2.1 - START CONTACT CONNECTION DIAGRAM page 4 3 - USE OF THE CONTROL UNIT 3.1 - TYPICAL INSTALLATION page 6 3.2 - USE VIA RADIO page 7 3.3 - USE WITH SMARTPHONE APPLICATION page 7...
  • Page 3 1 - PRODUCT FEATURES 1.1 TECHNICAL DATA Power supply 12-32 Vdc or 12-24Vac One NO contact (1A 30Vdc) for start function of the automation 1 Output One NO contact (1A 30Vdc) for start function of the automation 2 1 input for automation 1 signaling dry contacts, Status signaling inputs 1 input for automation 2 signaling dry contacts N°...
  • Page 4 2 - CONNECTION DIAGRAMS RECOMMENDATIONS • Installation must be carried out only by professional technicians in accordance with the applicable electrical and safety regulations. • All connections shall be operated without electrical voltage. • Use proper cables. • Don’t cut the antenna •...

  • Page 5: Device Option

    USE VIA WIRE The start contact of the Plano control unit is connected in parallel to any wire commands (e.g. buttons or key selectors) directly to the automation control unit. USE VIA RADIO TRANSMITTER To send start command via radio transmitter, you need to program it on the Plano control unit, see paragraph 5 USE VIA APP In order to send start commands from application, it is necessary to do the procedure for associating the control unit with the application, see paragraph 6.
  • Page 6 3 - USE OF THE CONTROL UNIT 3.1 TYPICAL INSTALLATION The system can be controlled by a radio commands, smartphone App OneSmart or voice commands. The installation can operate with only radio controls or application only. Instead, to use voice commands, at least the App configuration must be completed. CONTROL UNIT RADIOTRANSMITTER CONFIGURATION...
  • Page 7 3.2 USE VIA RADIO To control the automation via radio you must have compatible transmitters and therefore must carry out the association procedure, see paragraph 4. 3.3 USE VIA SMARTPHONE APP ONESMART The configuration procedures described in paragraph 5 above must be followed to control the lights by smartphone App. 3.4 USE WITH VOICE CONTROL The configuration procedures described in paragraph 6 above must be followed to control the lights by voice commands.

  • Page 8: Radio Programming

    4 - MANAGEMENT WITH REMOTE CONTROL This procedure lets you programme/delete compatible 433.92MHz transmitters. Multifunctional transmitters, codes: With multifunctional transmitters the transmitter control modes depend on the model used. Generic (wireless bus) transmitters, codes: The functions of the generic transmitters is “start of the automation”. 4.1 - RADIO PROGRAMMING This procedure lets you programme compatible multifunctional or generic transmitters.
  • Page 9 4.2 - DELETION OF REMOTE CONTROL These procedures let you delete from the memory transmitters that have already been programmed. STEP 1 Hold the receiver button 1 down (about 5 seconds.) until the LED begins to Flash. ACTION: Hold tbutton 1 down LED: Flashes red DELETION OF SINGLE DELETION OF ALL...

  • Page 10: App Connection

    5 - CONTROL WITH APP ONE SMART These procedures allow you to manage the light from your device (example: mobile phone) through the application and to control the system remotely. 5.1 - APP CONNECTION This procedure connects the control unit Plano-One to the application. It shall be repeated for each control unit on the installation.
  • Page 11 5.2 - USE OF THE APP ONE SMART After all the control units have been set up, the installation can be managed by the application. The “Home” menu (1) shows all the associated devices. To send a command to a device, select it. Pressing “Smart”...
  • Page 12 6 - CONTROL BY VOICE COMMANDS You can use this procedure to associate a “OneSmart” account with a Google or Alexa account to enable the voice commands. 6.1 - CONNECTION TO “GOOGLE HOME” PROCEDURE WARNING: before proceeding with this procedure, you must have set up the “OneSmart” account, see paragraph 6. 1.
  • Page 13 6.2 - COONECTION TO “AMAZON ALEXA” PROCEDURE WARNING: before proceeding with this procedure, you must have set up the “OneSmart” account, see paragraph 6. 1. Download the App “Amazon Alexa” 2. After starting the application, you will need to create an account Amazon. Complete the procedure.
  • Page 14 6.3 - USING VOICE CONTROLS In order to set up voice commands, you must create a scene on OneSmart and then associate it with a Google or Alexa routine by choosing the phrase to pronounce to match the most appropriate action. Speech controls for automation control depend on the operation of START contact at the automation plant.
  • Page 15 6.3c - CREATING A ALEXA ROUTINE 1 - On Alexa application, select the menu (1) 2 - Select “Routinese” (2), and then add a new one 3 - Enter the name (3), the phrase you want to pronounce (4), and “add an action” (5) select “Smart Home”, then select “Control scene”.

  • Page 16: Advanced Programs

    7 - ADVANCED PROGRAMS VIEWING THE DOOR STATUS ON THE APP To display the status of the door (open, closed, partially open) on the app, you must connect the contacts to the control unit. The control unit can work with: - one normally closed contact with no voltage when opening typically this means there is one micro limit switch for when the door opens, connected to the relevant input (terminal 6, 7).
  • Page 17 NORMALLY CLOSED CONTACTS WITH NO VOLTAGE 8. Closing NC contact for automation 2 7. Common 6. Closing NC contact for automation 1 NORMALLY OPEN CONTACTS WITH NO VOLTAGE 8. Closing NO contact for automation 2 7. Common 6. Closing NO contact for automation 1 ONE CONTACT WITH 12-24 VDC (WARNING LIGHT) OPERATOR CONTROL UNIT 6.
  • Page 18 7.1 - SETTING THE CONTACT FOR LIMIT SWITCHES Default: No limit switches This procedure is used to set the type of contacts of limit switches. PROCEDURE STEP 1 With a paper clip makes a long press of the “hidden” button. The LED turns on light blue/pink/yellow cyclically.
  • Page 19 7.2 - SETTING THE CONTACT FOR LIMIT SWITCHES Default: No limit switches This procedure is used to set the type of contacts of limit switches. PROCEDURE STEP 1 With a paper clip makes a long press of the “hidden” button. The LED turns on light blue/pink/yellow cyclically.
  • Page 20 7.3 - SETTING OF THE CONTACT TYPE OF THE LIMIT SWITCHES AS WARNING LIGHT FOR AUTOMATION 1 AND 2 With the following procedure it is possible to set the type of contact for both automations as a warning light. PROCEDURE STEP 1 With a paper clip makes a long press of the “hidden”...
  • Page 21 7.4 - RESET OF THE CONTROL UNIT This procedure let you take the control unit back to factory settings. ATTENTION: the only parameter that will not be removed will be the association with the ONESMART application. To edit or delete also this parameter, reed the procedure. PROCEDURE STEP 1 Hold the receiver button P1 down (about 4 seconds.) until...

  • Page 22: First Checks

    8 - INSIGHTS 8.1 – ISSUES WHEN CONNECTING THE CONTROL UNIT WITH WIFI If you’re having problems connecting the control unit to the router, we suggest to: FIRST CHECKS: - check if the network used to connect the control unit is running at 2.4GHz (not 5GHz) - the smartphone you use must be connected to the same WiFi on which you want to connect the device - please check if the entered password is correct STEPS TO DO:...
  • Page 24 V1.2 Nexta Tech company brand of Team srl via G.Oberdan 90, 33074 Fontanafredda (PN) - Italy Ph. +39 0434 998682 Email: info@nexta-tech.com Web: www.nexta-tech.com...
