Summary of Contents for ROLTEK RLTK420

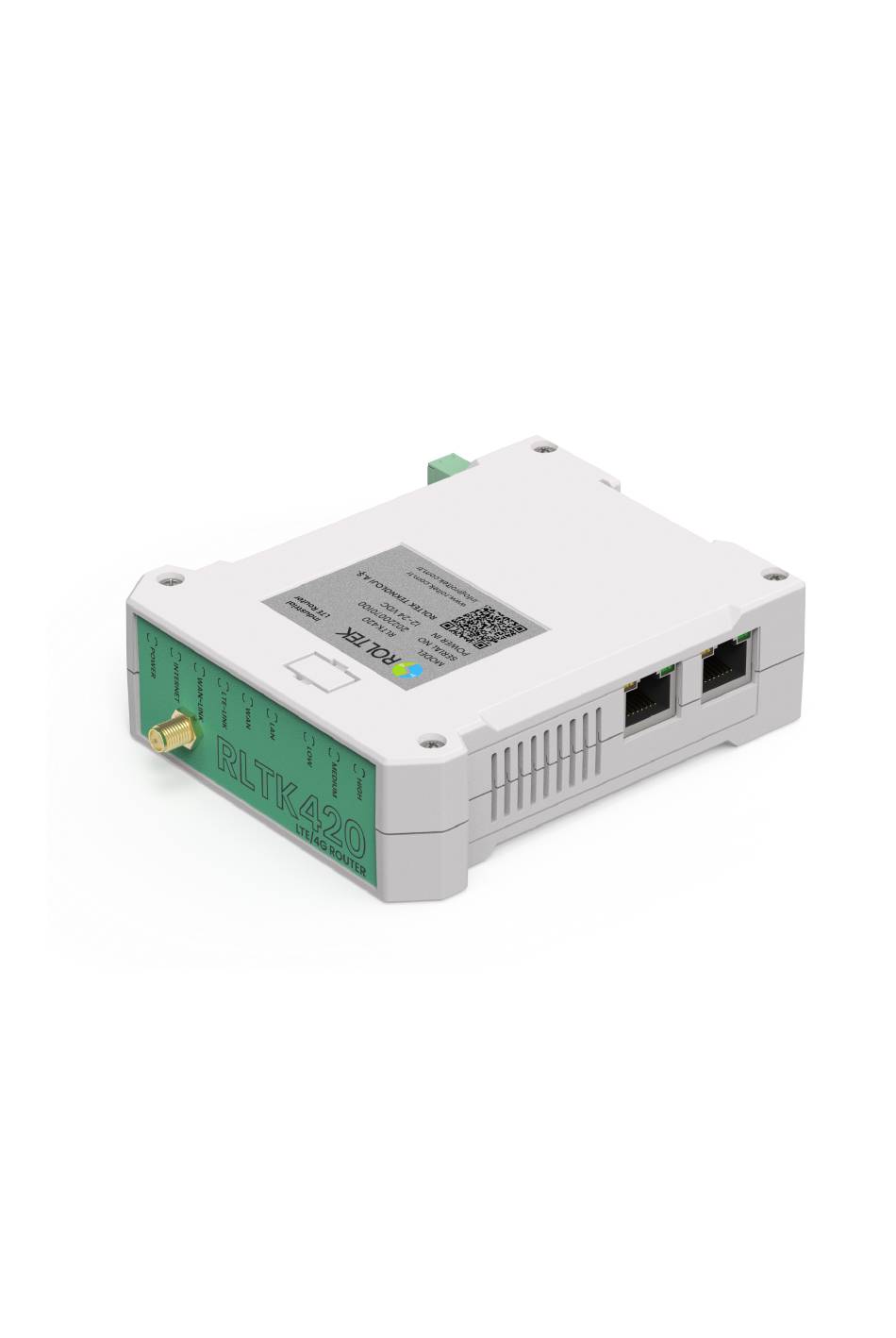

- Page 1 RLTK420 Routers Quick Start Guide...
-
Page 2: Side View
RLTK420 | QUICK START GUIDE SIDE VIEW SIDE VIEW Index Numbers and Functions Wiring/ Index Number Function SMA - Antenna COM IN Com In(-) IN 1 Digital İnput IN 2 Digital İnput IN 3 Digital İnput IN 4 Digital İnput IN 5 Digital İnput... - Page 3 RLTK420 | QUICK START GUIDE IN 6 Digital İnput COM IN Com In(-) O1 NO Output 1 NO O1 COM Output 1 COM O2 NO Output 2 NO O2 COM Output 2 COM PWR - PWR + DC IN – ( 10 – 26VDC )
-
Page 4: Hardware Installation
RLTK420 | QUICK START GUIDE FIGURE-2 Hardware Installation ⚠ Follow these steps before powering on the device;⚠ ● The power connection of the device is shown in red in figure-1. Polarization is important in the power connection. ● The sim card can be inserted into its slot as shown in green in figure 1. The orientation of the sim card is important. - Page 5 RLTK420 | QUICK START GUIDE After turning on the device and assigning an IP to the computer, the interface can be accessed by typing 192.168.2.1 in the web browser. To access the interface, click Advanced and proceed to 192.168.2.1 (not secure).
- Page 6 RLTK420 | QUICK START GUIDE If the login is successful the following page should pop up.
- Page 7 RLTK420 | QUICK START GUIDE...
-
Page 8: Common Errors And Solutions
RLTK420 | QUICK START GUIDE On this screen, it is possible to monitor the status of the device. In the System section, Local Time shows the current time and date value if the device was able to establish a connection over LTE. Uptime shows how long the device has been on. -
Page 9: Safety Warnings
RLTK420 | QUICK START GUIDE If the communication between devices is not healthy and there are constant breaks, RSSI measurement should be done. If the value obtained in the signal strength measurement is 55 or less, check the antenna connections. If the problem continues, consult the technical team. -
Page 10: Safety Standards
RLTK420 | QUICK START GUIDE ● Do not use the device in case of liquid contact.Consult the technical team ● The device is not resistant to drops and shocks. Permanent damage to the device may occur as a result of falling and hitting. - Page 11 RLTK420 | QUICK START GUIDE Commercial Rights Roltek Technology reserves the right to make changes on the product and the manual without giving any information. It cannot be reproduced and published without permission.
