DIES
INCLUDED OPTIONAL
PFT205
PFT245
PFT210
PFT250
PFT215
PFT255
PFT220
PFT260
PUNCHES
INCLUDED
PFT305
PFT335
PFT310
PFT340
PFT315
PFT350
PFT320
PFT355
PFT330
PFT383
OPTIONAL
PFT325
PART NO.
DESCRIPTION
PFT205
Die – 3/16" (4.75 mm) 45° & DIN
PFT210
Die – 1/4" 45° & DIN
PFT215
Die – 5/16" (8 mm) 45° & DIN
PFT220
Die – 3/8" 45°
PFT305
Punch – 3/16" (4.75 mm) 45° OP1
PFT310
Punch – 1/4" 45° OP1
PFT315
Punch – 5/16" (8 mm) 45° OP1
PFT320
Punch – 3/8" 45° OP1
PFT330
Punch – 3/16" (4.75 mm) DIN
PFT335
Punch – 1/4" DIN
PART NO.
DESCRIPTION
PFT245
Die – 3/16" (4.75 mm) 37°
PFT250
Die – 1/4" 37°
PFT255
Die – 5/16" 37°
INCLUDED IN KIT
PART NO.
PFT340
PFT350
PFT355
PFT383
PFT610
PFT615
PFT620
PFT625
PFT630
OPTIONAL (Sold Separately)
PART NO.
PFT260
PFT325
DESCRIPTION
Punch – 5/16" (8 mm) DIN
Punch – 3/16" & 1/4" 45° OP2
Punch – 5/16" x 3/8" 45° OP2
Punch – OP0
PFT409 Yoke Set Screw Handle
PFT409 Yoke
PFT409 Yoke Handle
PFT409 Hydraulic Handle
PFT409 Case
DESCRIPTION
Die – 3/8" 37°
Punch – 3/16" (4.75 mm) 37° OP2
Rev 1 9/21
Advertisement
Table of Contents

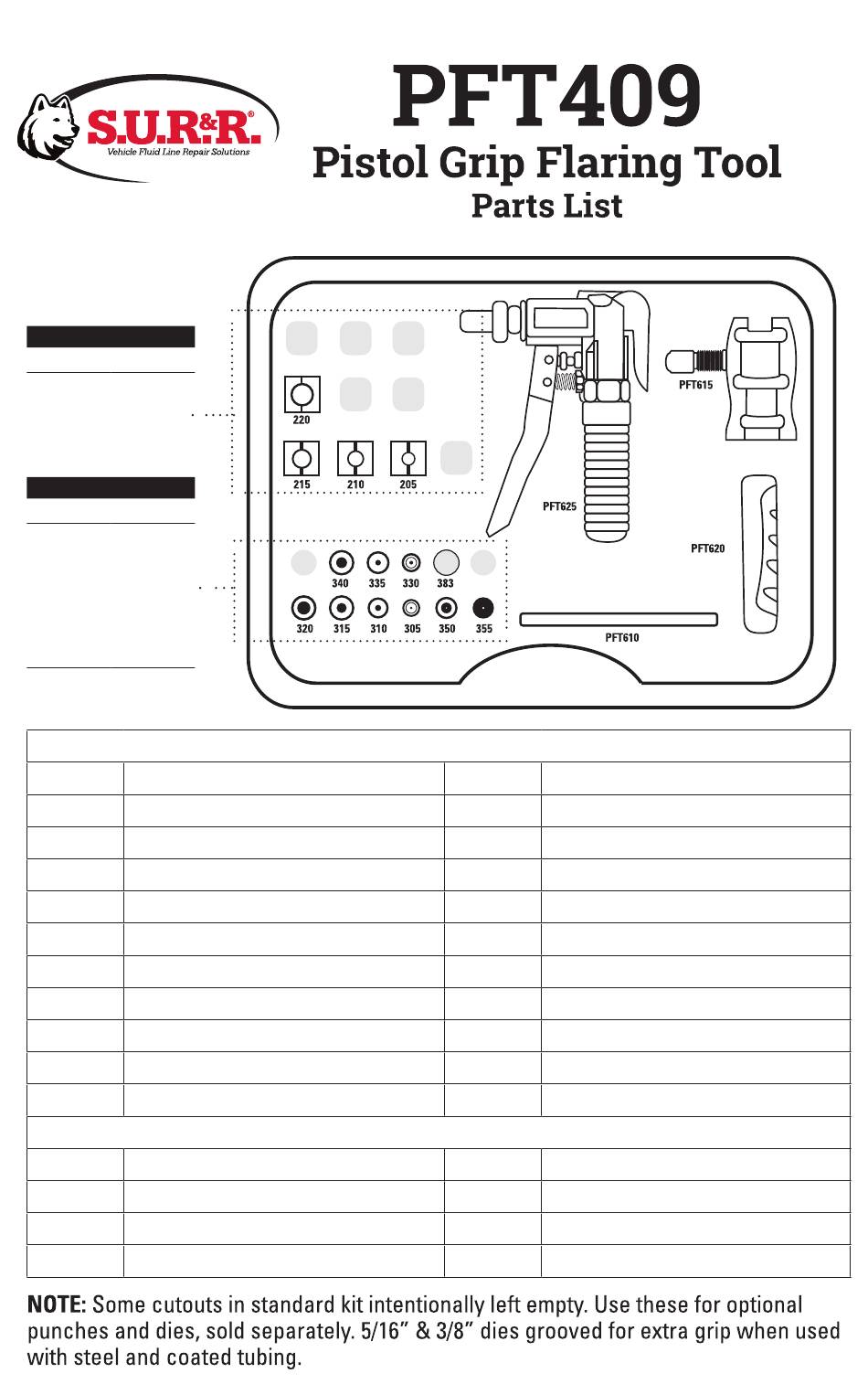

Summary of Contents for SUR&R PFT409
- Page 1 PFT220 Die – 3/8” 45° PFT383 Punch – OP0 PFT305 Punch – 3/16” (4.75 mm) 45° OP1 PFT610 PFT409 Yoke Set Screw Handle PFT310 Punch – 1/4” 45° OP1 PFT615 PFT409 Yoke PFT315 Punch – 5/16” (8 mm) 45° OP1...
- Page 2 PFT409 Pistol Grip Flaring Tool Instructions 1. Make sure tubing end is cut straight and deburred. 2. Install handle into threaded hole in bottom of yoke. (Fig. 1) 3. Select die set which corresponds to desired flare. 4. Install die set vertically into yoke, such that the interface between the two halves is visible.
