DURA ZKCDMX-R Instruction Manual

RGB DMX controller with remote control
Cod. ZKCDMX-R
Instruction manual
PRODUCT SPECIFICATION
DMX series adopt the advanced micro-computer control technology
and converted the DMX512/1990 digital signal widely used interna-
tionally to the analog control signal. 1~3 channels output for option
and each channel able to achieve 256 gradations of controling. It is
mainly used for the controlling of buildings and LED for lighting. This
controller is also able to change the DMX control & self-changing
program freely by IR remote and make it be with many kinds of
changing effect.
FEATURES
- Meets DMX512/1990
- With 3 channels output and Max.5A/CH output
- Decoder can diagnose and indicate DMX512 signal status (Not
Connected, Pause, Normal); easy to use.
- Can set the DMX address more easily by DIP SWITCH
- It can achieve asynchronous color changing effect under working
with DMX control system
- With many kinds of self-changing effect, and it is able to adjust the
speed, brightness...etc
- Mode, suspend protection, output short circuit protection
- With IR remote function, and the red LED will be flashing once the
IR signal found.
- Easy to connect and install
- Modularizing and can be matched with different LED module ne-
atly
- With the light color selection mechanism is able to control the light
with 1~3 colors - 256-level brightness, full-color controll
- Uses Logarithmic dimming curve with a smooth dimming effect.
TECH-PARAMETER
Decode CH.: 3CH
Signal Input: DMX-512/1990 standard digital signal
Signal output: 0~24V , Max. 5A
Power Supply: DC12~24V
Power Dis.: <1W
Power output: 12V: <180W; 24V: <360W
IR Remote distance: ≤10m
Work Temp.: 0~70°C
Size: 175mm x 45mm x 35mm
Weight: ≤300g
Duralamp S.p.A.
Via Pratese 164 - 500145 Firenze

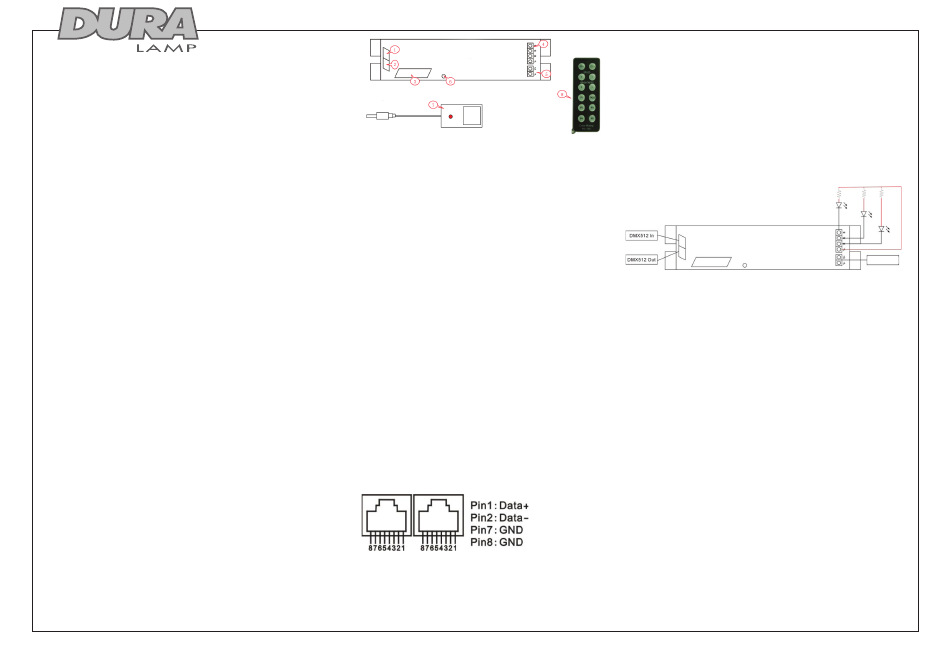

(1) DMX signal input interface(RJ45)
(2) DMX signal output interface(RJ45)
(3) Address setting interface
(4) Driver output interface
(5) Power input interface
(6) IR receiver jack
(7) External IR receiver
(8) Remote control
REMOTE CONTROL INSTRUCTION
DMX: Press this button and get into DMX control, the devi-
ce will start to receive the DMX signal
P1-P5: 5 regular changing modes
P1: 8 regular colors changing (Red, Orange, Yellow, Green,
Cyan, Blue, Purple, White)
P2-P5: Full-color changing and the chaning mode as
follwing.
LOCK: Pause and keep changing
FADE: Changed from jumped change to gradual change on
regular mode (only used for P2-P5)
BRIGHTNESS: 16-level brightness adjust for presaved
program
+ Brightness increase 1 level
- Brightness decrease 1 level
SPEED: 16-level speed adjust for presaved program
+ Speed increase 1 level
- Speed decrease 1 level
INTERFACE INTRODUCTION
DMX signal interface
- Address code setting on/off
How to use See "DMX series address DIP switch"
- Power Input Interface: DC12~24V input
- Driver output interface
Common anode,V+ and R,G,B interface, can drive kinds of RGB
module or single-color module, can regulate output current according
to the actual load.
OPERATING INSTRUCTION
ZKCDMX-R Decoder is controlled by DMX-512, and its fore-end
connect with the DMX512 signal transmit device. This instruction is
only for LED driver.
TYPICAL APPLICATIONS
Circuit Diagram 1
Connecting of DMX-512 Signal
DMX signal cable used the RVSP and DMX signal tells positive(+)
from negative (-). While welding the DMX signal cable plug,there
must pay much attention to know postive (+) from negative (-), and
then connect the DMX512 signal cable with the corresponding input
interface of ZKCDMX-R correctly.
Connect a signal terminal at the end of the whole connection.
www.duralamp.it
R R R
DC 12/24V
