V120 Assets GPS Tracker
User Manual
V0.93
ADVANCE VISION ELECTRONICS CO., LTD.
6F., No.,199, Lide St., Zhonghe Dist., New Taipei City 23556, Taiwan, R.O.C
TEL: +886 2 8228-2088 FAX: +886 2 8228-1200
www.avecl.com info@avecl.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the V120 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADVANCE VISION ELECTRONICS V120

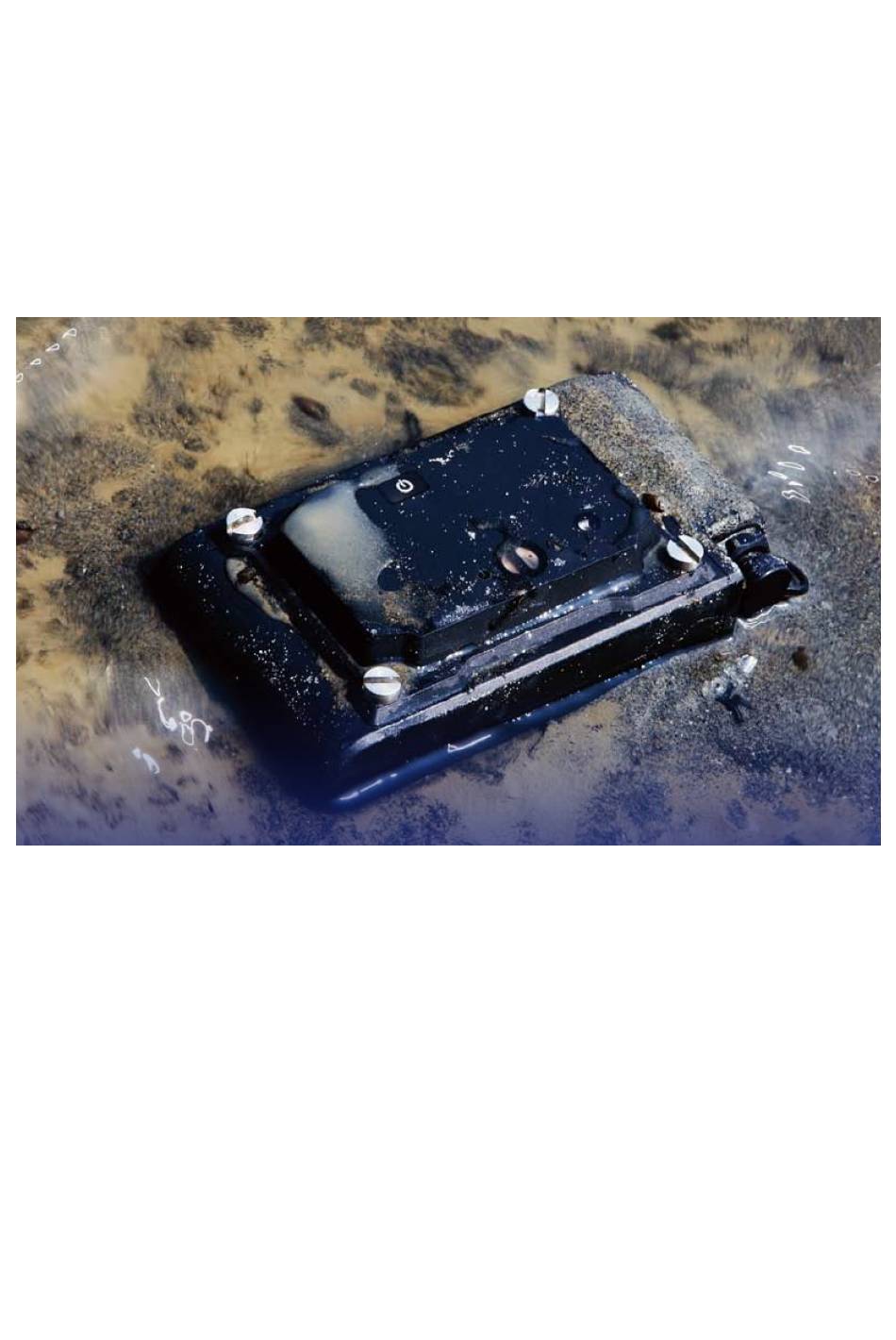

  • Page 1 V120 Assets GPS Tracker User Manual V0.93 ADVANCE VISION ELECTRONICS CO., LTD. 6F., No.,199, Lide St., Zhonghe Dist., New Taipei City 23556, Taiwan, R.O.C TEL: +886 2 8228-2088 FAX: +886 2 8228-1200 www.avecl.com info@avecl.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Warning……………………………………..………………3 2. Features……………………………………..……………...4 3. Specification……………………………………………….5 4. Introduction………………………………………………..6 5. Battery Charging………………………………………….7 6. SIM Card Installation……………………………………..8 7. Operating………………………………………………….10...
  • Page 3: Warning

    USE RESPONSIBLY. READ ALL INSTRUCTIONS AND SAFETY INFORMATION BEFORE USE TO AVOID INJURY. Advance Vision Electronics Co., Ltd. will not accept any responsibility whatsoever for accidents resulting from failure to observe common sense precautions. Your personal judgment, traffic regulations, and common sense must always take precedence over any directions produced by GPS tracker or the mapping software of backend.
  • Page 4: Features

    2. Features:  GSM/SMS/GPRS Communication.  Quad-Band GSM (850/900/1800/1900MHz) / GPRS Class10.  Support Quick GPS Fix (AGPS).  Real-Time tracking.  Buffer Storage for recording 5,000 data positions.  Geofence Function.  Impact Detection / Movement / Low Battery / Over Speed Alert. ...
  • Page 5: Specification

    3. Specification: GSM Frequency GSM 850/900/1800/1900 system GPS Channels 50-channel acquisition 14-channel tracking GPS Start Time Hot Start: 1 sec, Warm Start: 32 sec, Cold Start: 32 sec Position Accuracy Position 2.5m CEP Default Datum WGS84 Operating Temperature -20°C~ 55°C Humidity 5%~ 95% Non-condensing Dimension...
  • Page 6: Introduction

    4. Introduction:     Front  Back  Power Key   Screw  DC Connector  Magnet...
  • Page 7: Battery Charging

    5. Battery Charging: First time to use: Please make sure that rechargeable battery is completely charged. (to charge over 12 hours) Charging: The orange LED will start flashing when the device is low battery, at this time please put the charger into the device and then the orange LED lights will become constant light, to be fully charged after orange LED will extinguish and return to the green LED flashing.
  • Page 8: Sim Card Installation

    6. SIM Card Installation: Open the screw Open the top cover...
  • Page 9 Install the SIM card Close the top cover and tighten the screws...
  • Page 10: Operating

    7. Operating Turn on: Hold the power key until the LED is lit up Turn off: Hold the power key until the LED is light off LED status: Constant Blink Quickly Blink Slowly Light (Once per second) (Once every 3 seconds) 1.
  • Page 11 Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
  • Page 12 CE Marking This device has been tested to and conforms to the regulatory requirements of the European Union and has attained CE Marking. The CE Mark is a conformity marking consisting of the letters “CE”. The CE Mark applies to products regulated by certain European health, safety and environmental protection legislation.
