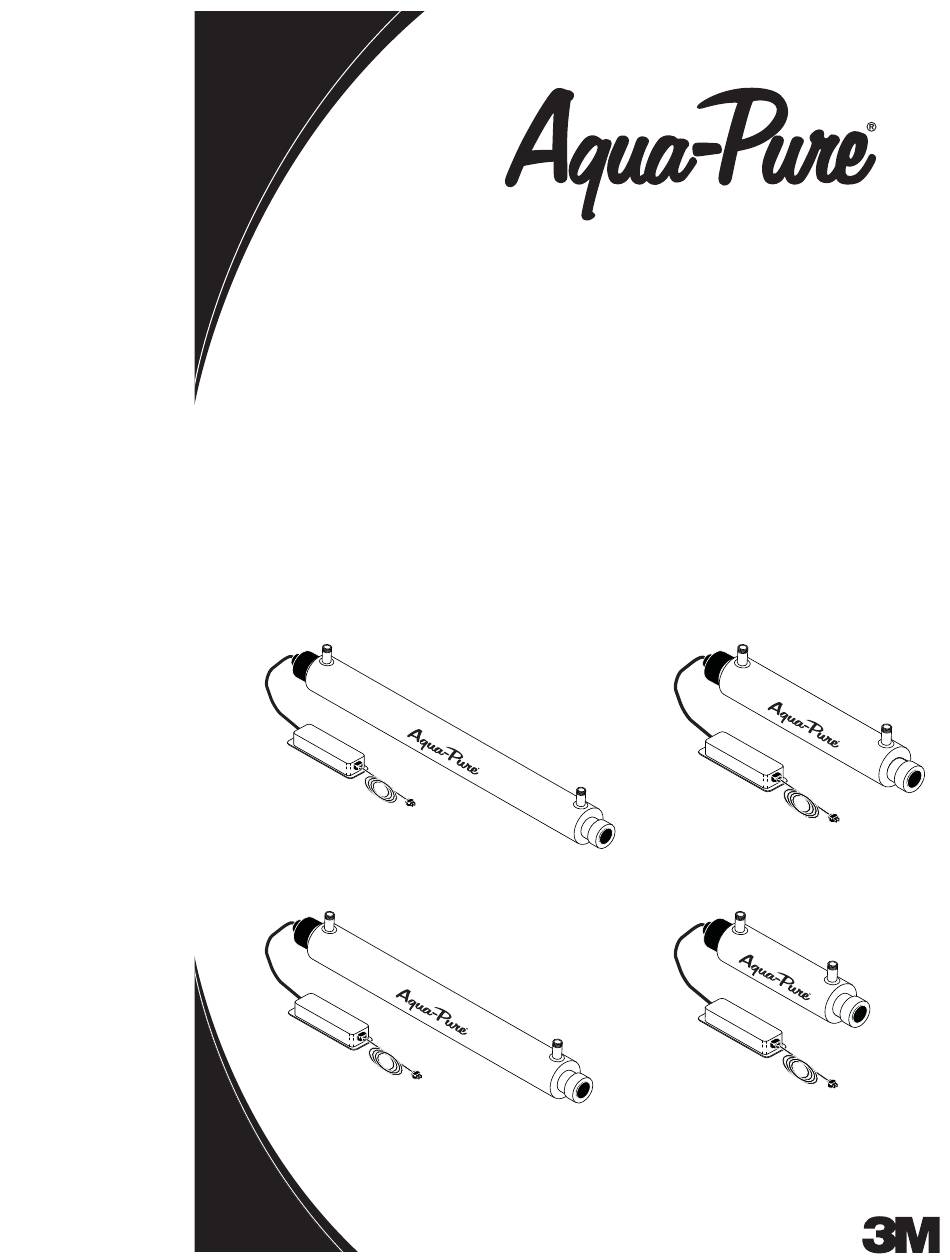

Installation and Operating Instructions For
APUV Series Ultraviolet Light Systems
Models: APUV1
APUV2
APUV5
APUV8
Installer: Please leave this manual with homeowner.
Homeowner: Please retain for operation and future maintenance instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APUV Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for aqua-pure APUV Series

  • Page 1 Installation and Operating Instructions For APUV Series Ultraviolet Light Systems Models: APUV1 APUV2 APUV5 APUV8 Installer: Please leave this manual with homeowner. Homeowner: Please retain for operation and future maintenance instructions.
  • Page 2 APUV Series Ultraviolet Light Systems. Retain these instructions for future reference. The Aqua-Pure APUV Series Ultraviolet Light Systems are intended for use in irradiating water with powerful ultraviolet light and have not been evaluated for other uses. These filters are typically installed at the point-of-use or point-of-entry, and must be installed as specified in these installation instructions.
  • Page 3 WATER CHEMISTRY Water quality is extremely important for the optimum performance of your ultraviolet light system. Only install the ultraviolet light system when: • Total Iron - count is less than 0.3 ppm (0.3 mg/l) • Hydrogen Sulfide - count is less than 0.05 ppm (0.05 mg/l) •...
  • Page 4 Note: If the ballast enters alarm condition, power must be removed for 30 seconds to allow ballast to reset. Note: As the system requires time to reach its full operating capacity, please allow the Ultraviolet Light System to operate 3-5 minutes prior to using the water from the unit. In addition, to clear any air from the system, open the faucet and allow water to run through the Ultraviolet Light System for 2-3 minutes (when using an RO application, run the water for 30-45 seconds).
  • Page 5 PARTS BREAKDOWN Lamps 5605831 for APUV1 Ultraviolet Light System 5605833 for APUV2 Ultraviolet Light System 5605835 for APUV5 Ultraviolet Light System 5605837 for APUV8 Ultraviolet Light System Quartz Sleeves 5605832 for APUV1 Ultraviolet Light System 5605834 for APUV2 Ultraviolet Light System 5605836 for APUV5 Ultraviolet Light System 5605838 for APUV8 Ultraviolet Light System Ballast...
  • Page 6 SPECIFICATIONS Model Type APUV1 APUV2 APUV5 APUV8 Flow Rate 1 gpm 2 gpm 5 gpm 8 gpm (3.8 lpm) (7.5 lpm) (18.9 lpm) (30.3 lpm) (0.24 m /hr) (0.45 m /hr) (1.14m /hr) (1.80 m /hr) Dimensions Length 15" 18.5" 22"...
  • Page 7 Meriden, CT 06450, U.S.A. Tel (800) 222-7880 3M is a trademark of 3M Company. (203) 237-5541 Aqua-Pure is a trademark of 3M Company used under license. Fax (203) 238-8701 © 2013 3M Company. All rights reserved. www.3Mpurification.com Please recycle. Printed in U.S.A.
