Energy Management Unit
CET-HD-EMU-1
Product User Manual
1
CET-HD-EMU-1 Energy Management Unit User Manual (V2)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CET-HD-EMU-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Combined Energy CET-HD-EMU-1

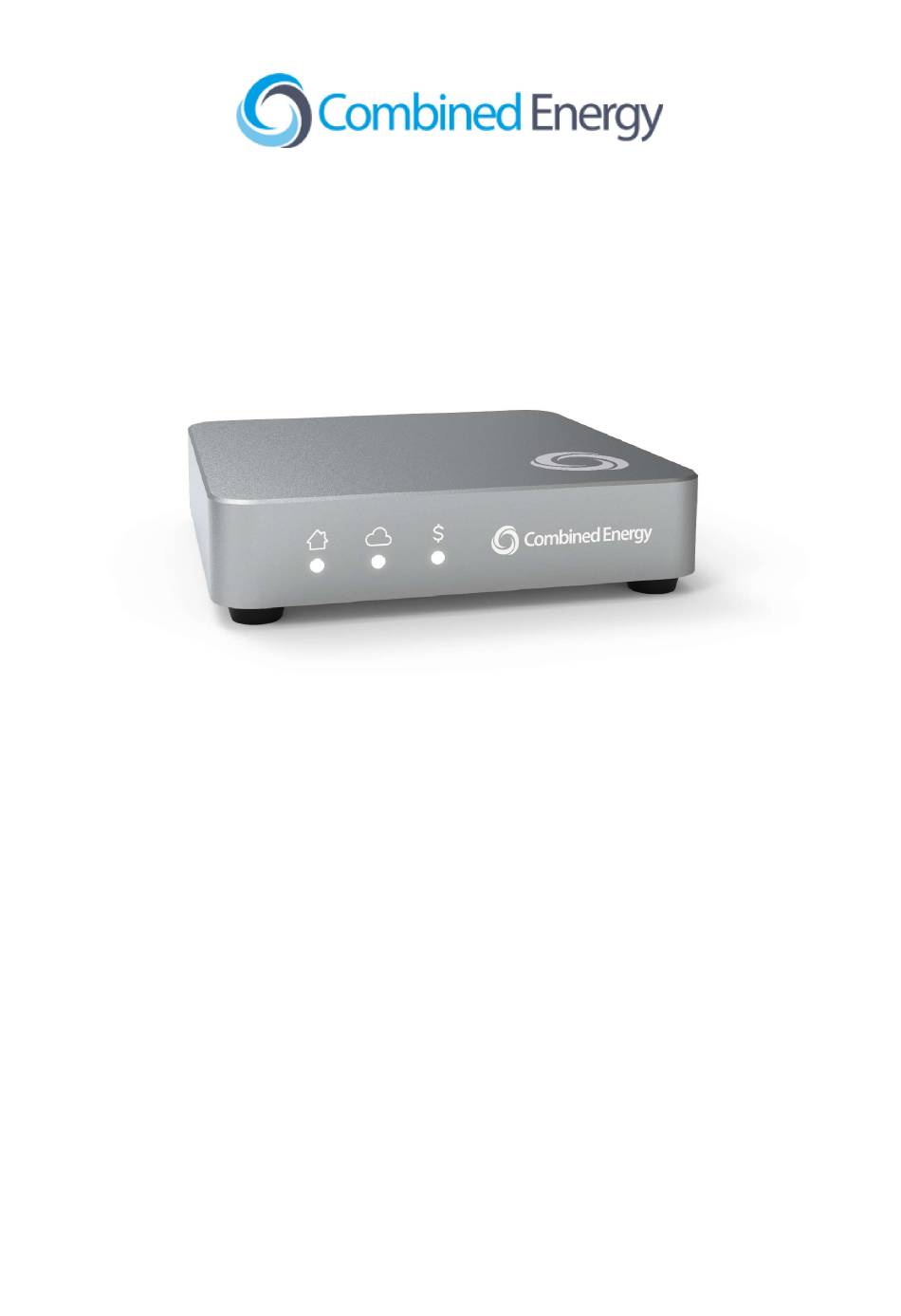

  • Page 1 Energy Management Unit CET-HD-EMU-1 Product User Manual CET-HD-EMU-1 Energy Management Unit User Manual (V2)
  • Page 2: Table Of Contents

    Table of Contents Safety Notices Introduction Technical Specifications Product Features Setup Guide Requirements Installation Connection Option 1: Wired Ethernet Connection Option 2: Wi-Fi Connection Option 3: Cellular User Interface Standard Light Indications Button CET-HD-EMU-1 Energy Management Unit User Manual (V2)
  • Page 3: Safety Notices

    11. This product incorporates a lithium battery for time keeping purposes. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. 12. This product should be unplugged during lightning storms. CET-HD-EMU-1 Energy Management Unit User Manual (V2)
  • Page 4: Introduction

    USB cellular modems for standalone operation. Historical energy consumption and cost data collected by the EMU from smart appliances and load control adapters in the home can be viewed on the Combined Energy atHome website. Site commissioning and configuration is performed via a web interface available through the Combined Energy atHome web service.
  • Page 5: Technical Specifications

    Dimensions: 144 x 144 x 36.4mm Mass: 0.47kg Operating Temperature Range: 0C to +40C Standards: ● IEC 60950-1, AS/NZS 60950-1 - Information Technology Directive ● EN 50561-1 – Electromagnetic Compatibility for PLC products CET-HD-EMU-1 Energy Management Unit User Manual (V2)
  • Page 6: Product Features

    1 x Wired Ethernet (10/100 Base-T) Human Interfaces: ● Tactile switch for manual network reset and diagnostics view ● Three LEDs for network status and price signal indications Included Accessories: ● 1.2m Power Cable ● 1.2m Ethernet Cable CET-HD-EMU-1 Energy Management Unit User Manual (V2)
  • Page 7: Setup Guide

    USB modem and data plan are required for this option) 2. You must have a user account set up with Combined Energy to use the EMU. This account should have been created for you by the company that is installing your energy management system.
  • Page 8: Installation

    The socket-outlet shall be installed near the equipment and shall be easily accessible. 3. Follow the appropriate connection setup guide below depending on your chosen connection method: Connection Option 1: Wired Ethernet Use an Ethernet cable to connect the EMU to the Internet router. CET-HD-EMU-1 Energy Management Unit User Manual (V2)
  • Page 9 ● Check if you have any other devices that use Ethernet in your home (e.g. laptops, PCs), as sometimes it may not be obvious which device is the router (rather than a modem, for example). ● Use one of the alternative connection methods. CET-HD-EMU-1 Energy Management Unit User Manual (V2)
  • Page 10: Connection Option 2: Wi-Fi

    Wi-Fi extender to your home network, following the installation instructions included with the Wi-Fi extender. Connect the EMU Ethernet cable to the Wi-Fi extender to provide an Internet connection to the EMU. CET-HD-EMU-1 Energy Management Unit User Manual (V2)
  • Page 11: Connection Option 3: Cellular

    Connection Option 3: Cellular A compatible USB cellular modem is required for this connection option. Please contact Combined Energy for information on supported USB cellular modems. 1. Ensure the USB cellular modem has a SIM inserted with an active data service.
  • Page 12: User Interface

    This can be done by pressing and holding the tactile push button on the back panel of the EMU for at least 20 seconds and releasing the button when the lights turn RED. CET-HD-EMU-1 Energy Management Unit User Manual (V2)
