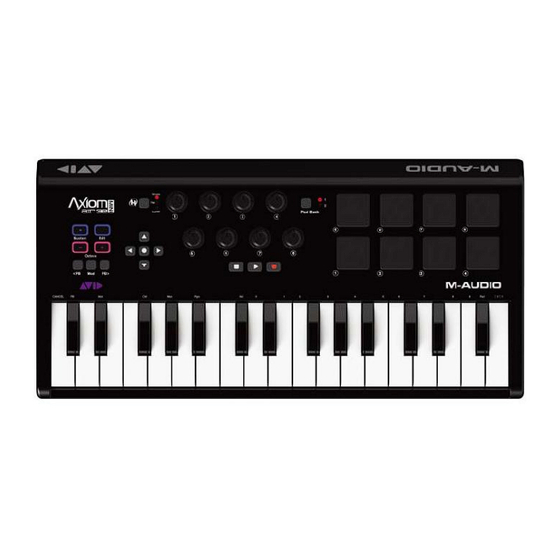

- Page 1 Mini Keyboard Axiom A.I.R. Mini 32 SERVICE MANUAL...
-
Page 2: Table Of Contents
Contents Specifications..........................3 Panel Description.........................4 General Exploded Drawing and List.....................6 Circuit Boards..........................7 Parts List.............................11 PCB Boards..........................17 Diagnosis.............................21 Spare Part List..........................23... -
Page 3: Specifications
Specifications Specifications 32 Velocity sensitive keys Note range: C to G Low profile, filled front mini-keys Pitch bend buttons Pitch bend control Modulation button Modulation control 2 – oct + / oct -, multi color Octave/Transpose buttons “Play” Button MIDI control , User Programmability,Uses keybed in conjunction with “edit”button “Stop”... -
Page 4: Panel Description
Panel Description Front Panel Panel Description Top Panel 1.Edit Button Enter edit mode HyperControl Mode Button Switch HyperControl Mode 3.HyperControl Mode LED 4.Assignable Control Knobs 5.Drum Pad Bank Button Switch pad bank 6.Drum Pad Bank LEDs 7.Drum Pads 8.Sustain Button 9.Octave/Data Buttons 10.Pitch Bend Buttons 11.Modulation Button... - Page 5 Panel Description Side Panel Side Panel USB Jack USB Mini-B 2.Kensington Security Slot...
-
Page 6: General Exploded Drawing And List
General Exploded Drawing and List... -
Page 7: Circuit Boards
Circuit Boards Main Board... - Page 8 Circuit Boards Function Board...
- Page 9 Circuit Boards Key Board...
- Page 10 Circuit Boards Drum pad control Board...
-
Page 11: Parts List
Part List S pecification Remark Level Part NO. Description Unpacking part of the 1020104060 Piranha 1.00 electronic keyboard 1020501740 Bottom cabinet ASSY Piranha 1.00 1020600970 Keyboard ASSY Piranha 1.00 ++++ 1010801030 Keyboard ASSY Piranha 1.00 +++++ 101080102 Keyboard ASSY(AI part) Piranha 1.00 Piranha key board PCB... - Page 12 Circuit Boards nbr matt finish 629990102 Rubber Sleeving 32.00 50*30*11.8 373*8.0*4.5mm hardness 631030170 White felt 50 degree single-sided 1.00 adhesive 373*8.0*4.0mm hardness 631030171 Black felt 50 degree single-sided 1.00 adhesive Silica gel diameter of 629990154 Arc foot pad 30mm thickness of 2.3mm 4.00 the arc surface Silicone oil PL-388F...
- Page 13 Part List 20PIN pitch 1.0mm +++++ 6280102170 FPC connector 1.005 underneath toaching 16PIN PITCH1.0mm next +++++ 6280200180 FPC Connector 1.005 toaching 2124-16 4*10pF±10％ 50V NPO +++++ 603990007 CAP chain SMD 2.02 0603 +++++ 606010009 Ferrite Bead SMD 600R@100Mhz 0603 4.04 +++++ 602010004 Resistor SMD...
- Page 14 Circuit Boards BLACK silkscreen P=877C M-AUDIO ABS injection RAL9005 ++++ 201010128 Top cabinet 1.00 +++++ 298010001 Plastic 0.08 φ 3.0*6PB black Flat round head screws 301020012 crisscross flat tail 7.00 tapping 1010302820 Function board ASSY Piranha 1.00 20PIN pitch 1.0mm...
- Page 15 Part List +++++ 628140025 jump single flat cable 15mm 1.00 +++++ 398040001 Light copper wire 0.00 Φ 4.2*2mm N/A ++++ 218010033 LED Fixed column 5.00 101090067 Drum control board ASSY Piranha 1.00 Piranha drum control PCB Single layer 22F ++++ 503030030 board V01 blue coating 1.00...
- Page 16 Circuit Boards 646000022 Paper End right Pulp 1.00 L=1000mm±30 two side with masculine plug 6280800070 USB connector connector one side 1.00 USB“A”TYPE the other side MINI USB 5PIN 641990220 Gift box packe label Roundness 51mm blank 1.00 9100-65365-00 Rev A 699000137 Axiom AIR Mini32 1.00...
-
Page 17: Pcb Boards
PCB Boards Main Board-Top Main Board-Bottom... - Page 18 Circuit Boards Function Board-Top...
- Page 19 PCB Boards Function Board-Bottom...
- Page 20 Circuit Boards KeyBoard Drum Pad control Board...
-
Page 21: Diagnosis
Diagnosis Factory test mode activation: To enter Factory test mode,Hold <PB MOD PB> button simultaneously ,and power up the MIDI keyboard Test items: 1. LED & BUTTONS: One button associated with one LED. When a button is pressed ,the related LED turn on , When the button is released... - Page 22 Circuit Boards Check MIDI message on MIDI-OX / MIDI monitor. (Since the Electronic Materials have tolerance themself, the max value range from 170 to 185 is OK) The min stress on the drum pads is " ≤ 0.3kg ", it related to min value of the MIDI code The max stress on the drum pads is "2.0–...
-
Page 23: Spare Part List
Spare Part List LAYER PART NO PART NAME PART SPECIFICATION UNITAGE PHOTO REMARK ++++ 1010801030 Keyboard ASSY Piranha 1.00000 ABS injection RAL9005 black 202040008 Bottom cabinet 1.00000 screen printing Pantone 877C 1010106340 Main board ASSY(SMD ++++ Piranha 1.00000 part) 20PIN L=135mm 6280601710 FPC soft flat cable 1.00000... - Page 24 Silicone black 629020305 Button single spray feel oil 2.00000 carbon Silicone black 629020306 Button(3 connector) silkscreen Spray 1.00000 feel oil carbon Silicone black 629020307 Button(5 connector) silkscreen Spray 1.00000 feel oil carbon Silicone primary+black 629020308 Button(7 connector) 1.00000 silkscreen Spray feel oil carbon 300g powder paper B9 die...
