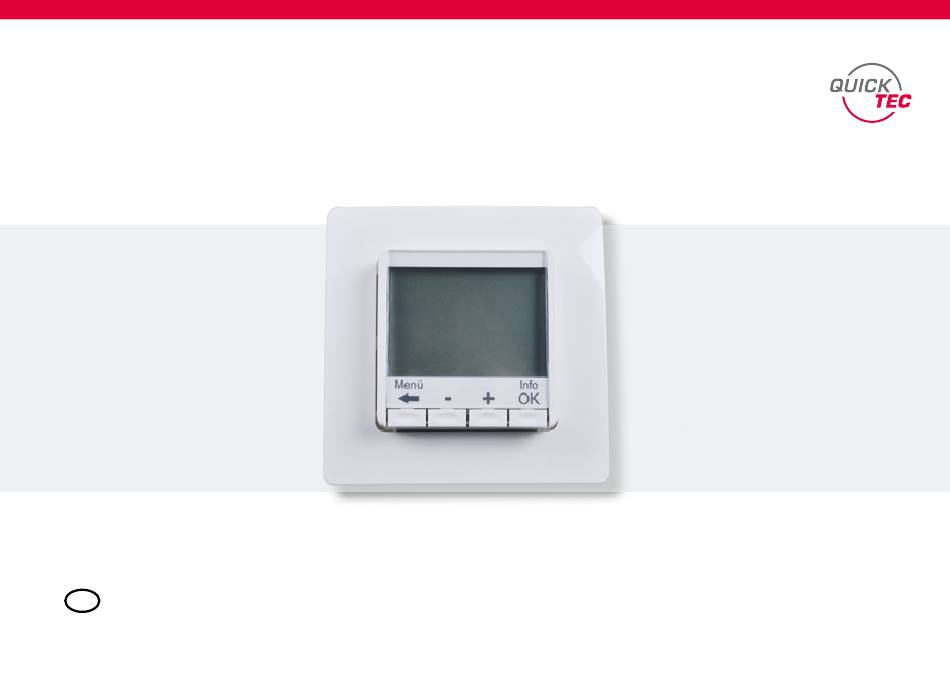

Page 1 QuickTherm HF Room Thermostat QuickTherm HF Room Thermostat Smart Operating and installation instructions...
Page 2: Select Application
For the Installer / Installation manual 1. Use The Universal Temperature Controller QuickTherm HF Room Thermostat Smart combines controllers for 3 different applications. The following applications can be selected: Room Temperature Controller Room Temperature Controller with Limiter Floor Heating Controller •...
Page 3: Principle Of Operation
1. Principle of operation The programmable room temperature controller QuickTherm HF Room Thermostat Smart allows programming switching events (up to 9) and temperatures according to personal needs. After installation the device automatically shows the time of day and the room temperature. In AUTO mode, the Heater (Cooler) will be automatically activated according to programmed time and temperature.
Page 4 3. Use The electronic Room Temperature Controller QuickTherm HF Room Thermostat Smart can be used to control the room temperature in conjunction with: Thermal actuators for e.g. water based floor heating or convector heaters Heatpumps • • Oil or Gas heaters Electric convector heaters, ceiling and storage heating •...
Page 5: Electric Connection
Fitting in a conduit box Ø 60 mm Caution! remove the display unit • Mounting in plastic wall remove the frame • boxes only Mount it following the reverse procedure • To insert or remove a flexible wire press pin. The plastic tab must be in place to pro- vide insulation between the terminals/ wires and the mounting screw.
Page 6 230 V. Avoid laying sensor cable alongside power cables, for example inside a conduit. Caution! The sensor is at mains voltage. 6. Technical Data Order Type QuickTherm HF Room Thermostat Smart Supply voltage 230 V AC 50 HZ (195…253 V) Temperature setting range 5 °C ... 30 °C; in 0,5 °C steps Temperature resolution 0,1 °C steps...
Page 7 Length 4 m, Remote sensor (optional) can be extended up to 50 m. Ambient temperature operating 0°C ... 40°C (without condensation) Ambient temperature storage -20 °C ... 70 °C (without condensation) Rated impulse voltage 4 kV Ball pressure test 75 ± 2 °C Voltage and Current for the purposes of 230 V, 0,1 A Interference measurements...
Page 8 7. Wiring Diagram / Dimensions Caution! Maximum length of removed cable insulation 8 mm. Remote sensor Ø 7,8...
Page 9 8. Pre-set programs There are 3 pre-set time/temperature programs in the controller. Pre-set program 1 (as shown below) is the default. Therefore, if pre-set program 1 is the best program to suit the application, there will be no need to change the time/temperature settings on the device. To select another program see 9.
Page 10 Programm 2 Monday to Friday Events Time 6:00 8:30 12:00 14:00 17:00 22:00 Temperature °C 21,0 18,0 21,0 18,0 21,0 15,0 Saturday and Sunday Events Time 7:00 23:00 / 22:00* Temperature °C 21,0 15,0 *23:00 / 22:00 = 23:00 for Saturday...
Page 11 Programm 3 Monday to Friday Events Time 6:00 8:30 17:00 22:00 Temperature °C 21,0 18,0 21,0 15,0 Saturday and Sunday Events Time 7:00 10:00 12:00 23:00 / 22:00* Temperature °C 21,0 18,0 21,0 15,0 *23:00 / 22:00 = 23:00 for Saturday...
Page 12: Notes For Programming
Notes for Programming Activated settings terminate automatically 3 Min after the last key press, without saving. They return to the mode which was active before • entering the settings, e.g. AUTO, MAN, etc. Entering a Code: change value with + – key then press OK •...
Page 13 How the QuickTherm HF Room Thermostat Smart Temperature Controller can be used Change temperature until next switching Set temperature for a number of hours Adjust the controller to personal needs event see keys, + – in AUTO see main menu, TIMER...
Page 14 Main Menu to Main Menu confirm / activate A MENU Use + – in order to navigate through the menu The temperature will be controlled automatically according to the time and temperature of B AUTO the selected program, see G1. Use + – keys to change temperature until next switching event.
Page 15: Event Setting
default settings G USER SETTINGS Customise the controller according to personal requirements ( ) = value range Select one of the pre-defined programs, see 8. (If another program is chosen, 1 Program select (P1 ... P3) settings will not be saved) Modify Time and Temperature of active program, see 8.
Page 16 Set temperature Show set temperature instead of room temperature to read Adjust Adjust temperature to personal needs Temperature (-5,0 ... +5,0) Continuously OFF or temporarily illuminates after key press. In case of using a remote sensor, SHORT (SHORT, 13 Backlight the backlight can be set to continuous on.
Page 17: Control Mode
PWM oder Ein/Aus kann gewählt werden. Bei PWM kann die Zykluszeit (in Minuten) eingestellt werden, es gilt eine minimale Ein/Ausschalt-Zeit von 10% der Zykluszeit. Kurz für schnelle, lang für PWM/10 (/10 ... 30) langsame Heizsysteme. PWM ist nicht möglich für Kühlen (H4). Bei Ein/Aus kann eingestellt werden: 2 Control Mode OFF (OFF, 0,1 ...
Page 18: Error Indication
10. Error Indication Display- and powermodule do not fit CONFIGURATION use only suitable parts EXT SENSOR switch off and on power supply 1. Error of remote sensor replace sensor Communication between display- and power unit fails 2. Over- or under run of valid display range COMMUNICATION unplug and re-plug display unit switch off and on power supply...
Page 19: Principle Of Operation
1. Principle of operation The programmable temperature controller QuickTherm HF Room Thermostat Smart allows programming switching events (up to 9) and temperatures according to personal needs. After installation the device automatically shows the time of day and the floor temperature. In AUTO mode, the heater will be automatically activated according to programmed time and temperature.
Page 20 3. Use The electronic Floor Temperature Controller QuickTherm HF Room Thermostat Smart can be used to control the floor temperature in conjunc- tion with: Direct floor heating • Floor temperature conditioning systems • 4. Features Energy cost per hour configurable One line text display for simplified operation •...
Page 21: Electric Connection
Fitting in a conduit box Ø 60 mm Caution! remove the display unit • Mounting in plastic wall remove the frame • boxes only Mount it following the reverse procedure • To insert or remove a flexible wire press pin. The plastic tab must be in place to pro- vide insulation between the terminals/ wires and the mounting screw.
Page 22 Connecting the remote sensor The QuickTherm HF Room Thermostat Smart needs a remote temperature sensor. This sensor should be mounted in such a way that the temperature which has to be controlled, can be measured correctly. Lay sensor inside a protective tube (simplifies replacement). The sensor lead can be extended up to 50 m by using a cable and connections suitable for 230V.
Page 23 length 4m, Remote sensor (optional) can be extended up to 50 m Ambient temperature operating 0°C ... 40°C (without condensation) Ambient temperature storage -20 °C ... 70 °C (without condensation) Rated impulse voltage 4 kV Ball pressure test 75 ± 2 °C Voltage and Current for the purposes of 230 V, 0,1 A Interference measurements...
Page 24 7. Wiring Diagram / Dimensions Caution! Maximum length of removed cable insulation 8 mm. 8. Pre-set programs Remote sensor There are 3 pre-set time/temperature programs in the controller. Pre-set program 1 (as shown below) is the default. Therefore, if pre-set program 1 is the best program to suit the application, there will be no need to change the time/temperature settings on the device.
Page 25 Programm 1 Monday to Friday Events Time 6:00 8:00 19:00 22:00 Temperature °C 28,0 18,0 21,0 15,0 Saturday and Sunday Events Time 8:00 10:00 17:00 22:00 Temperature °C 28,0 18,0 21,0 15,0...
Page 26 Programm 2 Monday to Friday Events Time 6:00 8:00 12:00 14:00 19:00 22:00 Temperature °C 28,0 18,0 28,0 18,0 28,0 15,0 Saturday and Sunday Events Time 8:00 10:00 12:00 14:00 19:00 22:00 Temperature °C 28,0 18,0 28,0 18,0 28,0 15,0...
Page 27 Programm 3 Monday to Friday Events Time 11:00 13:00 22:00 Temperature °C 21,0 18,0 15,0 Saturday and Sunday Events Time 8:00 10:00 19:00 22:00 Temperature °C 21,0 18,0 28,0 15,0...
Page 28: Notes For Programming
Notes for Programming Activated settings terminate automatically 3 Min after the last key press, without saving. They return to the mode which was active before • entering the settings, e.g. AUTO, MAN, etc. Entering a Code: change value with +– key then press OK •...
Page 29 How the QuickTherm HF Room Thermostat Smart Temperature Controller can be used Change temperature until next switching Set temperature for a number of hours Adjust the controller to personal needs event see keys, + – in AUTO see main menu, TIMER...
Page 30 Main Menu to Main Menu confirm / activate A MENU Use + – in order to navigate through the menu The temperature will be controlled automatically according to the time and temperature of B AUTO the selected program, see G1. Use + – keys to change temperature until next switching event.
Page 31: Event Setting
default settings G USER SETTINGS Customise the controller according to personal requirements ( ) = value range Select one of the pre-defined programs, see 8. (If another program is chosen, 1 Program select (P1 ... P3) settings will not be saved) Modify Time and Temperature of active program, see 8.
Page 32 Set temperature Show set temperature instead of room temperature to read Number for Read the floor temperature as number. floor tempe- Instead of a temperature in °C a number will be displayed e.g. instead of 28,5 °C, 285 can be (-5,0 ...
Page 33: Frost Protection
PWM or ON/OFF can be selected. In case of PWM, the cycle time can be set (in Minutes). Min ON/OFF PWM/10 time = 10% of cycle time. Use short time for fast and longer time for slow reacting heating systems. (/10 ...
Page 34: Error Indication
10. Error Indication Display- and powermodule do not fit CONFIGURATION use only suitable parts EXT SENSOR switch off and on power supply 1. Error of remote sensor replace sensor Communication between display- and power unit fails 2. Over- or under run of valid display range COMMUNICATION unplug and re-plug display unit switch off and on power supply...
Page 35 1. Principle of operation The programmable temperature controller QuickTherm HF Room Thermostat Smart allows programming switching events (up to 9) and temperatures according to personal needs. After installation the device automatically shows the time of day and the room temperature. In AUTO mode, the heater will be automatically activated according to programmed time and temperature.
Page 36 3. Use The electronic Room Temperature Controller QuickTherm HF Room Thermostat Smart can be used to control the room temperature in conjunction with:: Electrical floor heating systems where the floor temperature has to be limited to a certain value •...
Page 37 Fitting in a conduit box Ø 60 mm Caution! remove the display unit • Mounting in plastic wall remove the frame • boxes only Mount it following the reverse procedure • To insert or remove a flexible wire press pin. The plastic tab must be in place to pro- vide insulation between the terminals/ wires and the mounting screw.
Page 38 Connecting the remote sensor The QuickTherm HF Room Thermostat Smart needs a remote temperature sensor. This sensor should be mounted in such a way that the temperature which has to be controlled, can be measured correctly. Lay sensor inside a protective tube (simplifies replacement). The sensor lead can be extended up to 50 m by using a cable and connections suitable for 230V.
Page 39 length 4m, Remote sensor (optional) can be extended up to 50 m Ambient temperature operating 0°C ... 40°C (without condensation) Ambient temperature storage -20 °C ... 70 °C (without condensation) Rated impulse voltage 4 kV Ball pressure test 75 ± 2 °C Voltage and Current for the purposes of 230 V, 0,1 A Interference measurements...
Page 40 7. Wiring Diagram / Dimensions Caution! Maximum length of removed cable insulation 8 mm. Remote sensor Ø 7,8...
Page 41 8. Pre-set programs There are 3 pre-set time/temperature programs in the controller. Pre-set program 1 (as shown below) is the default. Therefore, if pre-set program 1 is the best program to suit the application, there will be no need to change the time/temperature settings on the device. To select another program see 9.
Page 42 Programm 2 Monday to Friday Events Time 6:00 8:30 12:00 14:00 17:00 22:00 Temperature °C 21,0 18,0 21,0 18,0 21,0 15,0 Saturday and Sunday Events Time 7:00 23:00/22:00* Temperature °C 28,0 15,0 *23:00/22:00 = 23:00 for Saturday...
Page 43 Programm 3 Monday to Friday Events Time 06:00 08:30 17:00 22:00 Temperature °C 21,0 18,0 21,0 15,0 Saturday and Sunday Events Time 7:00 10:00 12:00 23:00/22:00* Temperature °C 21,0 18,0 21,0 15,0 *23:00/22:00 = 23:00 for Saturday...
Page 44 Notes for Programming Activated settings terminate automatically 3 Min after the last key press, without saving. They return to the mode which was active before • entering the settings, e.g. AUTO, MAN, etc. Entering a Code: change value with +– key then press OK •...
Page 45 How the QuickTherm HF Room Thermostat Smart Temperature Controller can be used Change temperature until next switching Set temperature for a number of hours Adjust the controller to personal needs event see keys, + – in AUTO see main menu, TIMER...
Page 46 Main Menu to Main Menu confirm / activate A MENU Use + – in order to navigate through the menu The temperature will be controlled automatically according to the time and temperature of B AUTO the selected program, see G1. Use + – keys to change temperature until next switching event.
Page 47 default settings G USER SETTINGS Customise the controller according to personal requirements ( ) = value range Select one of the pre-defined programs, see 8. (If another program is chosen, 1 Program select (P1 ... P3) settings will not be saved) Modify Time and Temperature of active program, see 8.
Page 48 Set temperature Show set temperature instead of room temperature to read Number for Read the floor temperature as number. floor tempe- Instead of a temperature in °C a number will be displayed e.g. instead of 28,5 °C, 285 can (-5,0 ... +5,0) rature be read.
Page 49: Optimum Start
Set frost protection temperature. Only if controller is switched OFF, the temperature will be controlled to that value. Minimum floor temperature, the floor gets no colder as this temp. (OFF = no limit); • Min/max Floor e.g. Min-Temp. = 21°, the floor will get no colder than 21° even if the room is too warm Temperature Maximum floor temperature, the floor gets no warmer as this temp.
Page 50 10. Error Indication Display- and powermodule do not fit CONFIGURATION use only suitable parts EXT SENSOR switch off and on power supply 1. Error of remote sensor replace sensor Communication between display- and power unit fails 2. Over- or under run of valid display range COMMUNICATION unplug and re-plug display unit switch off and on power supply...
Page 52 Quick Tec GmbH Bardelebenweg 25 14089 Berlin Germany Fon +49 (0) 30 | 577 01 8840 Fax +49 (0) 30 | 577 01 8849 mail@quick-tec.com https://quick-tec.com...
