Konig Security SEC-CAM31B Instructions Manual

SEC-CAM31B

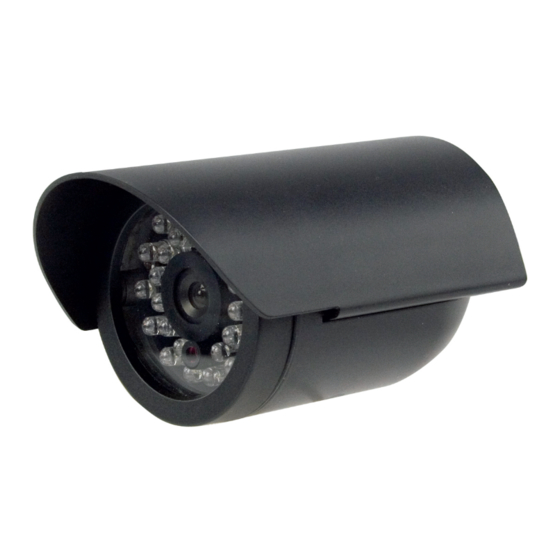

CCTV COLOUR CAMERA
Features:
- Automatic Gain Control
- Automatic Electronic Shutter
- Weatherproof housing (IP66)
IR LEDs for night view
-
Packaging contents:
1x CCTV camera
Description:
ENGLISH
INSTRUCTIONS
Remove the protective
film from the glass
Infrared LED
CCD camera
Sensitivity sensor
1.
Notice:
IR LED will be active with 0 Lux. Camera will automatically
switch to B/W picture in this status.
Safety precautions:
To reduce risk of electric shock, this product should ONLY be
opened by an authorized technician if service is required.
Disconnect the product from mains and other equipment if a
problem should occur.
Warranty:
No guarantee or liability can be accepted for any changes and
modifications of the product or damage caused due to incorrect
use of this product.
General:
Designs and specifications are subject to change without a
notice.
Specifications:
Image Device: 1/3" CCD
Lens: 6 mm
Synchronization: Internal SYNC
Horizontal Resolution: 520 TV Lines
Minimum Illumination: 0 Lux
Electronic Shutter (AES): (1/50) ~ 1/100,000 Sec.
S/N Ratio: More than 48 dB (AGC OFF)
Gamma Correction: 0.45
Video Output: 1 Vp-p/75 Ω, BNC
Power Supply: 12 VDC±10% / 300 mA
Operating Temperature: -10°~50°C
Copyright ©
2.
