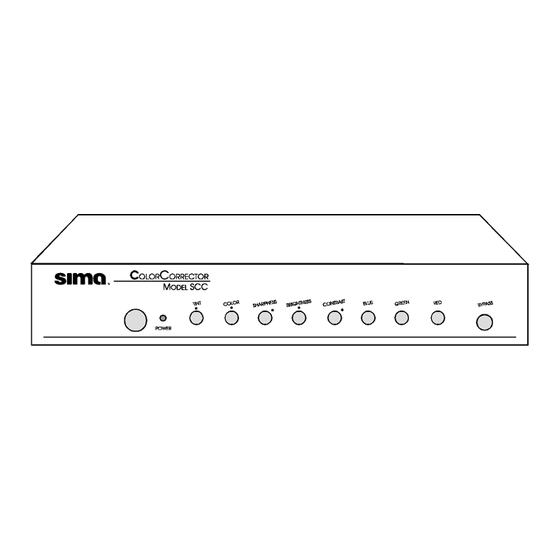

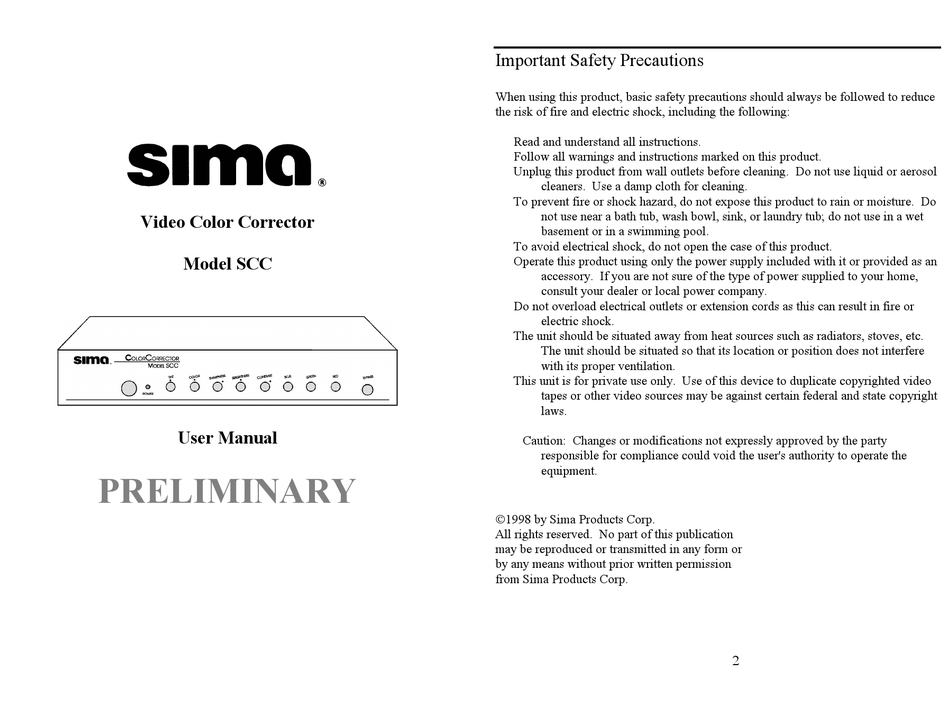

Video Color Corrector
Model SCC
User Manual
PRELIMINARY
Important Safety Precautions
When using this product, basic safety precautions should always be followed to reduce
the risk of fire and electric shock, including the following:
Read and understand all instructions.
Follow all warnings and instructions marked on this product.
Unplug this product from wall outlets before cleaning. Do not use liquid or aerosol
cleaners. Use a damp cloth for cleaning.
To prevent fire or shock hazard, do not expose this product to rain or moisture. Do
not use near a bath tub, wash bowl, sink, or laundry tub; do not use in a wet
basement or in a swimming pool.
To avoid electrical shock, do not open the case of this product.
Operate this product using only the power supply included with it or provided as an
accessory. If you are not sure of the type of power supplied to your home,
consult your dealer or local power company.
Do not overload electrical outlets or extension cords as this can result in fire or
electric shock.
The unit should be situated away from heat sources such as radiators, stoves, etc.
The unit should be situated so that its location or position does not interfere
with its proper ventilation.
This unit is for private use only. Use of this device to duplicate copyrighted video
tapes or other video sources may be against certain federal and state copyright
laws.
Caution: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
1998 by Sima Products Corp.
All rights reserved. No part of this publication
may be reproduced or transmitted in any form or
by any means without prior written permission
from Sima Products Corp.
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCC and is the answer not in the manual?

Questions and answers

Summary of Contents for Sima SCC

  • Page 1 Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 1998 by Sima Products Corp. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without prior written permission from Sima Products Corp.
  • Page 2: Table Of Contents

    Warranty Introduction The Sima Color Corrector, Model SCC, has been designed for the person who wants to control and adjust a video signal to achieve the best possible viewing and copies of video tapes. This allows you to enhance dark videos and adjust for color balance problems on your home movies.
  • Page 3: Typical Hook Up

    The diagram below shows how to connect between either a camcorder or VCR and a recording VCR. Step 1: Plug the 15 vdc plug into the SCC and the adapter into a standard 120 VAC outlet. Step 2: Connect the video output of the playback VCR or camcorder to the Video Input on the SCC.
  • Page 4: Rear Panel

    Press the bypass button in to view the picture before color correction and out to see the after picture. Note: It should be noted that the SCC cannot make a bad video into a good video. However, the SCC can improve and compensate for minor color and brightness errors in the source video.
  • Page 5: Technical Specifications

    It is recommended that you contact Sima to obtain a return authorization number. Limitation of Liability and Remedies Sima shall have no liability for any damages due to lost profits, loss of use or anticipated benefits, or other incidental, consequential, special or punitive...
