Grove - Mouse Encoder

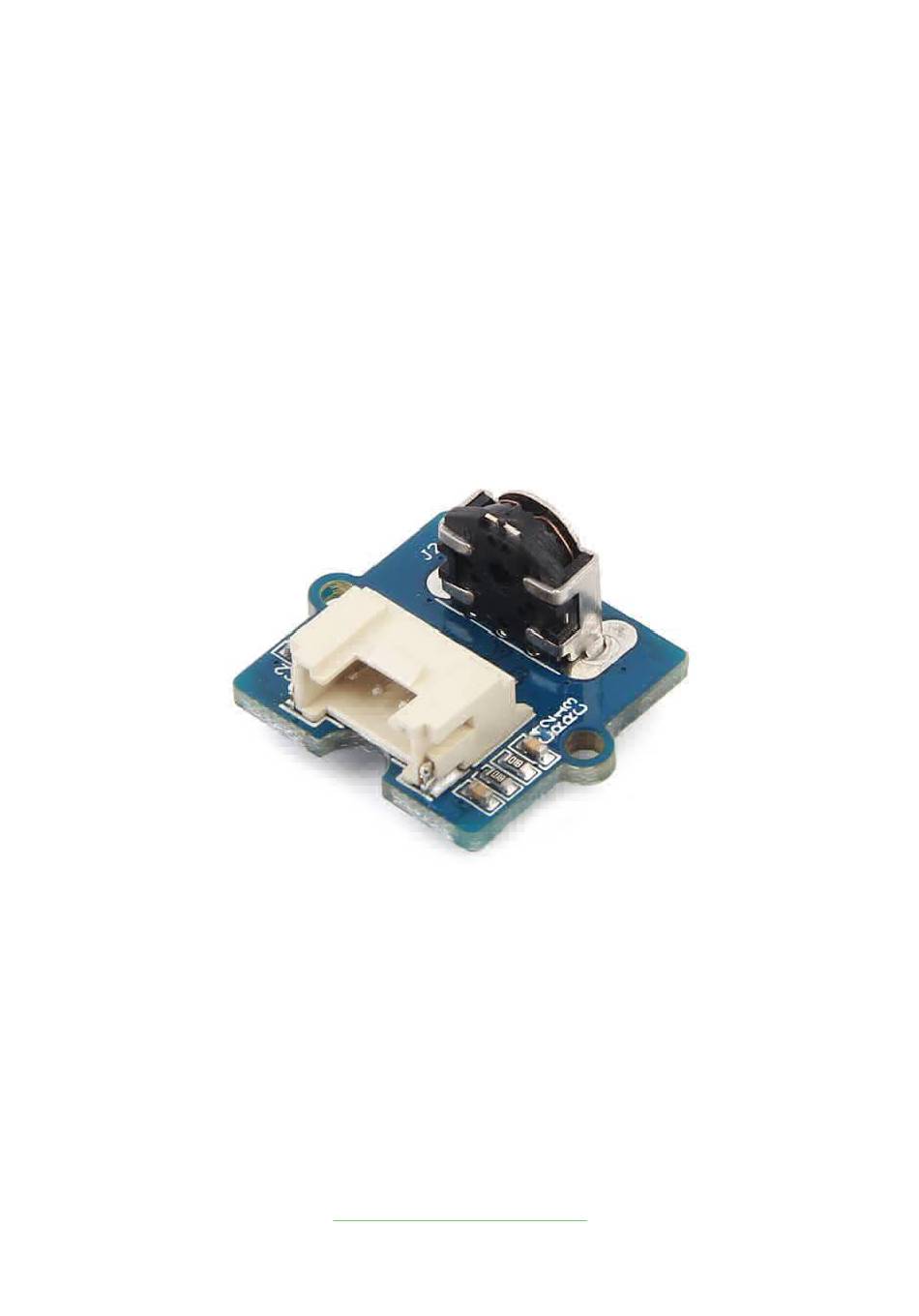

Grove - Mouse Encoder is a type of mechanical incremental rotary
encoder with feedback data of rotary direction and rotary speed .
It features standard Grove interface that will save your lots of work
in wiring and programming. Also, it is well adapted to heavy duty
and a harsh environment. This product can be applied in toys,
robots, and consumer input devices.
https://wiki.seeedstudio.com/Grove-Mouse_Encoder/
Grove - Mouse Encoder - Seeed Wiki
[1]
1/9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Seeed Grove Mouse Encoder
Summary of Contents for Seeed Grove Mouse Encoder
- Page 1 7/23/22, 9:19 PM Grove - Mouse Encoder - Seeed Wiki Grove - Mouse Encoder Grove - Mouse Encoder is a type of mechanical incremental rotary encoder with feedback data of rotary direction and rotary speed . It features standard Grove interface that will save your lots of work in wiring and programming.
-
Page 2: Speci Cations
7/23/22, 9:19 PM Grove - Mouse Encoder - Seeed Wiki [https://www.seeedstudio.com/Grove-%E2%80%93-Mouse-Encoder- p-2607.html] Note The rotating speed is designed to be less 1000 rad/min(radian per minute). Features Versatile for different environment. Well adapted for heavy duty and harsh environment. With detents and a nice feel. -
Page 3: Hardware Overview
7/23/22, 9:19 PM Grove - Mouse Encoder - Seeed Wiki Item Min. Typical Max. Operating voltage(V) Operating current(mA) Duty(constant speed) Phase π/4 difference(constant speed) Pulse per circle Notes 1. There is no knob included in product list. Because we think it will make this encoder more versatile for different environments. -
Page 4: Parts List
7/23/22, 9:19 PM Grove - Mouse Encoder - Seeed Wiki Grove interface Connect main control board such as Seeeduino board with driver board. Hexagonal opening An opening you pass a knob through. Parts list Parts name Quantity Grove - Mouse Encoder(no knob included) - Page 5 7/23/22, 9:19 PM Grove - Mouse Encoder - Seeed Wiki This section will show you how to build an IDE environment for building applications with Grove - Mouse Encoder. Refer to Seeeduino V4.2 [/Seeeduino_v4.2#Getting_Started_on_Windows](It is exchangeable with Arduino board) for how to build a complete an IDE for your...
- Page 6 7/23/22, 9:19 PM Grove - Mouse Encoder - Seeed Wiki Connect materials as shown below: Code Read Quadrature Encoder Connect Encoder to Pins encoder0PinA, encoder0PinB, and Sketch by max wolf / www.meso.net v. 0.1 - very basic functions - mw 20061220 val;...
- Page 7 7/23/22, 9:19 PM Grove - Mouse Encoder - Seeed Wiki 1. Copy the code and ash it into the controller board. 2. Open monitor window. 3. Turn the screwdriver bit to left or left to see what will happen. The output: Schematic Online Viewer https://wiki.seeedstudio.com/Grove-Mouse_Encoder/...
-
Page 8: Tech Support
7/23/22, 9:19 PM Grove - Mouse Encoder - Seeed Wiki Resources Schematic les [https:// les.seeedstudio.com/wiki/Grove- Mouse_Encoder/res/Grove_Mouse_Encoder_v1.0_Schematic_F ile.zip] Tech Support https://wiki.seeedstudio.com/Grove-Mouse_Encoder/... - Page 9 7/23/22, 9:19 PM Grove - Mouse Encoder - Seeed Wiki Please submit any technical issue into our forum [https://forum.seeedstudio.com/]. [https://www.seeedstudio.com/act-4.html? utm_source=wiki&utm_medium=wikibanner&utm_campaign=newpr oducts] https://wiki.seeedstudio.com/Grove-Mouse_Encoder/...
