- Page 1 OPERATING INSTRUCTIONS IO-WMS-2547 (01.2022/1) WA 14690-1 W ONL Y USE THE APPLIANCE WHEN YOU HAVE WASHING MACHINES READ AND UNDERSTAND THE OPERATING INSTRUCTIONS...
- Page 2 UNPACKING During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dis- pose of all elements of packaging in a way that will not cause damage to the environ- ment. All materials used for packaging the appli- ance are environmentally friendly;...
-
Page 3: Table Of Contents
PRACTICAL TIPS ON WASHING ECOLOGY IN PRACTICE For many years, Amica has consistently pursued pro-ecological policy. Concern for the environment is as important for us as the use of modern technology. The development of technology has enabled our factories to become more environmentally friendly –... - Page 4 Dear customer! Thank you for choosing an Amica product. For years we have de- livered high-quality appliances, so that household chores become a real pleasure. Before being packaged and leaving the manufac- turer, the appliance was thoroughly checked with regard to safety and functionality.
-
Page 5: Basic Information
BASIC INFORMATION This washing machine is intended for domestic use only to wash tex- tiles and clothes designed to be machine washed in a detergent bath. Before plugging the washing machine into the mains, remove the safety packaging and ensure the machine is level. The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance. - Page 6 SAFETY AND GERMENT CARE LABELS The risk of death! This appliance should not be used by children under 8 years of age, persons with reduced physical or mental capabilities, and persons who do not have sufficient skills to use this type of appliance. Such persons should be offered proper supervision or instructions on safe handling of appliance and related...
- Page 7 SAFETY AND GERMENT CARE LABELS Risk of burns! If laundry is washed at high tem- perature, door glass becomes hot. Prevent children from touching the hot door. Eye/skin irritation! Contact with detergents and softeners may cause eye or skin irritation. In case of eye/skin contact, thoroughly rinse eyes/ skin to remove fabric detergent/ softener.
- Page 8 SAFETY AND GERMENT CARE LABELS Risk of electric shock. The power cord and the ground- Risk of fire/damage to ed wall socket fit together and property/appliance! the grounding system has been properly installed. Power cord cross section is suf- ficient. Power plug is always accessible.
- Page 9 SAFETY AND GERMENT CARE LABELS Risk of fire/damage to The use of extension cords or property/appliance! splitters may result in fire due to overheating or short circuit. Connect the appliance directly to a properly grounded wall socket. Do not use extension cords, splitters or power strips.
- Page 10 SAFETY AND GERMENT CARE LABELS Risk of injury! This appliance has sharp edges that can cause a hand injury. Do not hold the appliance by sharp edges. Only lift the appliance after you put on the gloves. If the hoses or electrical cables are not routed properly, you can trip and sustain an injury.
- Page 11 SAFETY AND GERMENT CARE LABELS Important! Use only hoses supplied with Damage to property/ the appliance, or the original appliance hoses up designed for the appli- ance. The appliance is secured for transport with transit bolts. If you don’t remove transit bolts before using the appliance, the appliance may be damaged.
- Page 12 SAFETY AND GERMENT CARE LABELS Risk of poisoning! Cleaning agents containing solvents may give off poisonous vapours. Do not use cleaning agents con- taining solvents. Risk of injury! Do not lean against/sit on open appliance door as this can lead to the appliance tipping over.
- Page 13 SAFETY AND GERMENT CARE LABELS Eye/skin irritation! Fabric detergents and soften- ers may splash, if the detergent drawer remains open during operation. In case of eye/skin contact, thoroughly rinse eyes/skin to remove fabric detergent/sof- tener. In the event of accidental in- gestion, consult your doctor.
- Page 14 SAFETY AND GERMENT CARE LABELS SAFETY AND GERMENT CARE LABELS The risk of death!! The appliance is powered by electricity. Touching live ele- ments poses a risk of electric shock. Therefore, remember: Turn off the appliance: Unplug the appliance from the wall outlet.
- Page 15 SAFETY AND GERMENT CARE LABELS SAFETY AND GERMENT CARE LABELS Risk of poisoning! Cleaning agents containing solvents may give off poisonous vapours. Do not use cleaning agents con- taining solvents. Risk of electric shock / dam- If water penetrates into the age to property / appliance! appliance, it may cause a short circuit.
- Page 16 SAFETY AND GERMENT CARE LABELS Important! Make sure there is no contact Damage to property/appli- with the appliance surface. ance Clean the appliance with a damp cloth only. UNDERSTANDING THE SYMBOLS ON CLOTHES LABELS Washing boil at 90°C normal wash at 60°C normal wash at 40°C Do NOT wash! delicate...
-
Page 17: Install The Appliance
INSTALL THE APPLIANCE Remove the transit bolts (keep the bolts for future use, e.g. when moving house). unscrew the 4 transit bolts stop up the holes with the stoppers enclosed in the accessories bag. with a spanner, remove the rubber and plastic transport brackets from the sockets along with the washers and bolts. - Page 18 Connect the water supply Use only the new hoses supplied with the machine. Do not re-use hoses. A supply hose with seals is inside the drum of the machine. Water pressure min 0.05 MPa (0.5 bar), max 1 MPa (10 bar). 1).
- Page 19 Connect to power supply Electrical wall outlet where the appliance is connects must be in a visible and accessible place, Only plug the appliance into a properly installed socket with an earthing pin, Do not use an extension cord to connect the appliance, in the event of the power cord being damaged, it must be replaced by an authorised service...
-
Page 20: Product Description

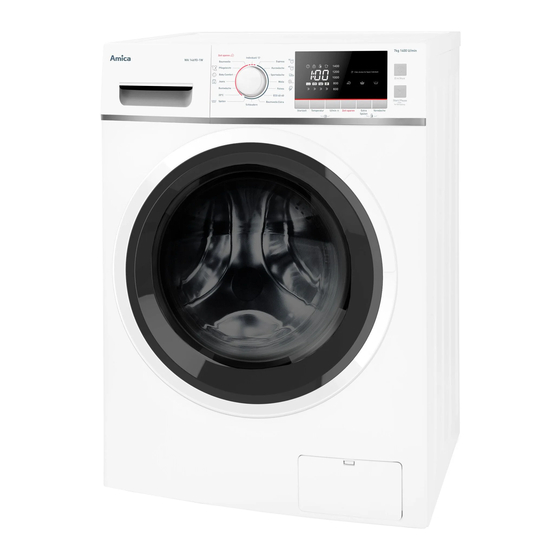

FEATURES AND COMPONENTS DESCRIPTION OF THE APPLIANCE Control panel Detergent dispenser Power plug Handle Drain hose Pump filter Cover Accessories: Accessories Elbow fitting for Cover for the Cover for the Water supply Water supply transport opening pipe C pipe H the drain hose opening (optional) - Page 21 10. Push the Start/Pause 1. Installation of the washing machine button 9. Select the programme. 2. Open the door and put in the laundry. 3. Measure off 8. Push the On/Off button the detergent 4. Close the door 7. Connect to power supply 5.
- Page 22 DISPLA Y AND CONTROL PANEL 1. Programme selector dial 2. Display 3. Delay Start button 4. Temperature selector button 5. Spin Speed button 6. Rapid Wash button 7. Extra Rinse additional function button 8. Pre-wash additional function button 4+5. Acoustic Signal On/Off 7+8.
- Page 23 1. Programme selector dial Choose the appropriate wash programme as required, depending on the degree of soil, and type and amount of laundry loaded, which ensures better results and more effective washing. Once the cleaning programme is started, turning the programme selector knob to another position is indicated by an acoustic signal however it does not change the previously selected programme.
- Page 24 DISPLA Y AND CONTROL PANEL 6. Rapid Wash additional function button The Rapid Wash function reduces the total wash time saving money while reducing energy con- sumption and water consumption. The function is recommended when washing lightly soiled laundry. NOTE 1: The Rapid Wash function is not available for all programmes (see Table of wash pro- grammes).
- Page 25 4+5. Acoustic Signal On/Off The Acoustic Signal On/Off is activated by simultaneously pressing and holding: Temperature selector and Spin Speed buttons for about 3 seconds. 7+8. Child Lock This function locks function buttons to prevent settings being changed or operation interrupted by children.
- Page 26 USING THE APPLIANCE I. Select Programme 1. Set the programme selector knob to the desired programme (see the table further on). 2. Change temperature, spin speed or activate available additional functions to modify the pro- gramme to your individual needs. 3.
-
Page 27: Troubleshooting
TROUBLESHOOTING Probable cause/Solution Problem Open the water supply tap. The washing machine is not working - clean the mesh filter on the supply hose - close the door - press the Start/ Pause button Water Leakage - Properly connect the water supply hose. - Replace the load evenly in the drum, clean the pump filter. - Page 28 THE FAUL T INDICATOR LIGHTS The washing machine features an alert system that indicates ERROR CODES on the display to help locate minor operating faults and identify their cause. The ERROR CODES help locate and determine the cause. Detected errors are indicated as shown in the following table: Display Reason Explanation...
- Page 29 TROUBLESHOOTING MAINTENANCE AND CLEANING Never clean the appliance body or plastic parts using solvents or harsh, abrasive deter- gents (e.g. washing powders or creams)! Use mild liquid detergents and soft cloths only. Do not use sponges. Clean the pump filter Clean the pump filter every 20 washes or so.
-
Page 30: Practical Tips On Washing
PRACTICAL TIPS ON WASHING DETERGENTS AND LAUNDRY ADDITIVES It is recommended to use a general-purpose laundry detergent powder or liquid for the full range of temperatures according to the manufacturer's instructions on the detergent packaging. Detergents Pour the detergent into the drawer compartment marked Pour the pre-wash detergent into the drawer compart- ment marked... - Page 31 FIRST WASH Before washing for the first time, put the appliance through one high temperature cycle without a load, according to the following procedure: 1). connect the washing machine to the power supply, 2). open the water valve, 3). set the programme selector dial to washing at high temperature, add a suitable detergent and press Start/Pause.
- Page 32 WATER HARDNESS Hard water causes scale deposition. Information about water hardness is available from the nearest water works. We recommend that you use water softener for each washing. POWER OUTAGE (PROGRAMME MEMORY) Power outage or unplugging the appliance does not cancel the set programme. The programme is memorised and resumes when power is restored.
- Page 33 DOOR LOCK The washing machine is equipped with a lock which prevents the door from being opened during wash cycle. Once a wash cycle is complete, the door lock is automatically released. If there is water in the drum or it is still hot you will not be able to open the door. Opening the door is not possible during some wash cycle stages.
- Page 34 For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/ WARRANTY AND AFTER SALES SERVICE...
- Page 36 AMICA S.A. UL. MICKIEWICZA 52 64-510 WRONKI TEL. 67 25 46 100 FAX 67 25 40 320 WWW.AMICA.PL...
