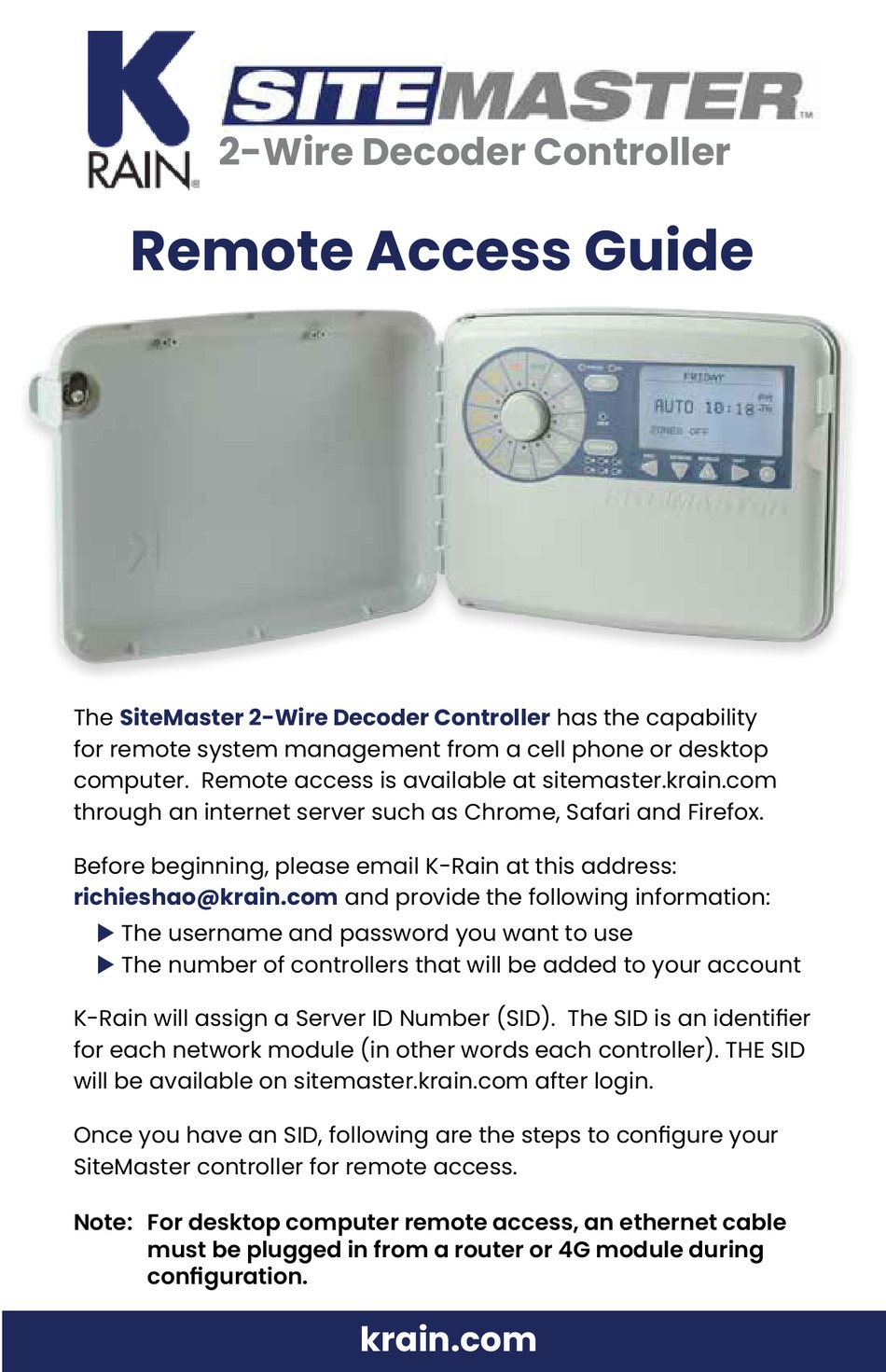

2-Wire Decoder Controller
Remote Access Guide
SiteMaster 2-Wire Decoder Controller
The
for remote system management from a cell phone or desktop
computer. Remote access is available at sitemaster.krain.com
through an internet server such as Chrome, Safari and Firefox.
Before beginning, please email K-Rain at this address:
richieshao@krain.com
The username and password you want to use
u
The number of controllers that will be added to your account
u
K-Rain will assign a Server ID Number (SID). The SID is an identifier
for each network module (in other words each controller). THE SID
will be available on sitemaster.krain.com after login.
Once you have an SID, following are the steps to configure your
SiteMaster controller for remote access.
Note: For desktop computer remote access, an ethernet cable
must be plugged in from a router or 4G module during
configuration.
and provide the following information:
krain.com
has the capability

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SiteMaster and is the answer not in the manual?

Questions and answers

Summary of Contents for KRain SiteMaster

  • Page 1 SiteMaster 2-Wire Decoder Controller has the capability for remote system management from a cell phone or desktop computer. Remote access is available at sitemaster.krain.com through an internet server such as Chrome, Safari and Firefox. Before beginning, please email K-Rain at this address: richieshao@krain.com...
  • Page 2 Turn the dial to CONTROLLER CONFIG. Use the DECREASE INCREASE button to locate SPECIAL OPTION 1. Press the OK. NEXT GSM LAN 30. Use the INCREASE Use the button to find the line NEXT button to change the value to 002. Then use the button to go GSM LAN CONFIG 31.
  • Page 3 SERVER ID. Press OK. Enter the 8-digit Server ID (SID) that you received from K-Rain. That ID is unique for this specific SiteMaster controller. NEXT Press the button until the NEXT word is highlighted on the NEXT screen.
  • Page 4 Wait 20 seconds then reconnect the power. Turn the dial to CONNECTIVITY. Use the button to select STATUS. Wait about 30 seconds for the SiteMaster to be connected online. Once connected, the LCD screen will display STATUS KRAIN SERVER. The controller is successfully connected.
