Summary of Contents for imoware HMV221-4K

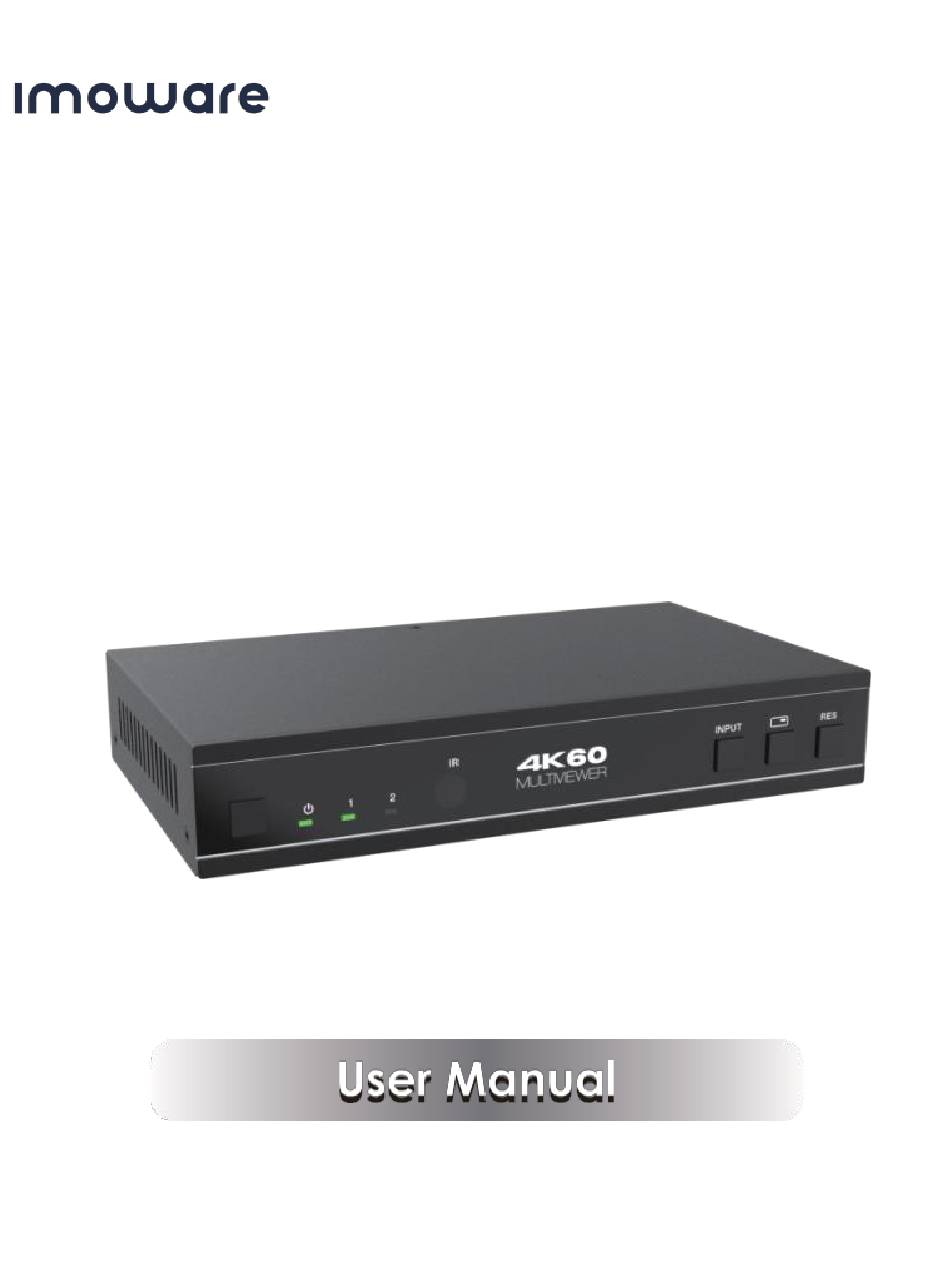

- Page 1 Imoware HMV221-4K 4K60 2x1 Multiviewer Seamless UHD Video Switcher VER 1.2 The information contained in this document is non -contractual and is subject to change without notice...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. - Page 3 11.2 Controller Main Interface............11 12. RS-232 Command ................14 13. Application Example................. 20 The information contained in this document is non -contractual and is subject to change without notice...
-
Page 4: Introduction
1. Introduction This 4K60 2x1 Multiviewer Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine two video signals onto a single UHD or HD displayer. The user can manage each input, and create combinations of the two inputs on a single display, as well as adjust the position of either input. -
Page 5: Package Contents
3. Package Contents ① 1 x 4K60 2x1 Multiviewer Seamless UHD Video Switcher ② 1 x IR Remote ③ 1 x 3pin-3.81mm Phoenix Connector (male) ④ 1 x 38KHz IR Wideband Receiver Cable (1.5 meters) ⑤ 2 x Mounting Ears ⑥... - Page 6 Connection Input ports 2 x HDMI IN [Type A, 19-pin female] 1 x HDMI OUT [Type A, 19-pin female] 1 x Output ports L/R OUTPUT [RCA] 1 x OPTICAL OUTPUT [S/PDIF] 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR Control ports EXT [3.5mm Stereo Mini-jack] Mechanical...
-
Page 7: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel Name Function Description ▪ Short press this button to power on the device. Power button ▪ Long press this button for 1 seconds to enter the standby mode. The Power LED will light in green when the product is powered on, and Power LED red when the product is on standby. -
Page 8: Rear Panel
Rear Panel Name Function Description L/R port PCM2.0 Analog audio output port. OPTICAL port Optical fiber digital audio output port. HDMI OUTPUT HDMI signal output port, connected to HDMI display device such as TV or Monitor with HDMI cable. port HD 1-2 HDMI signal input ports, connected to HDMI source device such as DVD or Set-top box with HDMI cable. -
Page 9: Ir Remote
6. IR Remote ①Power on or Standby: Press this button to power on the switcher or set it to standby mode. ② Baud: Press this button to pop up OSD menu, then circularly select the baud rate: 115200, 57600, 38400, 19200, 9600 ③... -
Page 10: Edid Settings
7. EDID Settings User can select following EDID modes via RS-232 commands or Controller software EDID Mode EDID Mode 4K60-2.0CH 1680x1050-2.0CH 1600x1200-2.0CH 4K60-5.1CH 4K60-7.1CH 1440x900-2.0CH 4K30-2.0CH 1360x768-2.0CH 4K30-5.1CH 1280x1024-2.0CH 4K30-7.1CH 1024x768-2.0CH 1080P-2.0CH 720P-2.0CH 1080P-5.1CH AUTO 1080P-7.1CH USER1 1920x1200-2.0CH 8. Video & Audio The switcher supports multiple resolution video input up to 3840x2160@60, and supports multiple audio formats such as LPCM, AC3, DD+, DTS, DTS- HD, up to 7.1 channel pass through function via HDMI cable. -
Page 11: Multiview
9. Multiview The switcher supports 4 categories of multiview display modes: SINGLE, PIP, PBP (1), PBP (2) Users can select different operations for different multiview modes as following: SINGLE: Inputs selection PIP: Inputs selection, Sub window size and position selection PBP (1), PBP (2): Inputs selection, Display mode selection, Display aspect selection Multiview window distributions are as following:... -
Page 12: Controller Software Operation Guide
11. RS-232 Command The product also supports RS-232 command control. Connect the RS-232 port of the product to a PC with an RS-232 to USB serial cable. Then open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is shown as below. - Page 13 Command Code Function Description Example Feedback Default Output Setting Set Output Resolution (x=1~14) 1. 4096x2160p60, 2. 4096x2160p50, 3. 3840x2160p60, 4. 3840x2160p50, 5. 3840x2160p30, 6. 3840x2160p25, out resolution: 3840x2160p s output res x! s output res 3! 7. 1920x1200p60RB, 3840x2160p60 8. 1920x1080p60, 9.
- Page 14 Command Code Function Description Example Feedback Default EDID Setting Set HDMI input EDID mode (x=1~19) 1. 4K2K60_444,Stereo Audio 2.0 2. 4K2K60_444,Dolby/DTS 5.1 3. 4K2K60_444,HD Audio 7.1 4. 4K2K30_444,Stereo Audio 2.0 5. 4K2K30_444,Dolby/DTS 5.1 6. 4K2K30_444,HD Audio 7.1 7. 1080P,Stereo Audio 2.0 input EDID:4K2K 4K2K60_ 8.
- Page 15 Command Code Function Description Example Feedback Default r output audio r output audio output audio Get output audio volume vol! vol! volume: 30 Set output audio mute on/off s output audio s output audio (x=0~1) output audio mute x! mute 0! 0.
- Page 16 Command Code Function Description Example Feedback Default Set the border mode of the specified window. (x=1~2) 1. window 1 s window x window 1 border s window 1 2. window 2 border y! border 1! (y=0~1) 0. off 1. on Get the border mode of windows (x=0~2) r window 1...
- Page 17 Command Code Function Description Example Feedback Default Set PIP window position (x=1~5) 1. Left Top PIP on right 2. Left Bottom s PIP position x! s PIP position 3! PIP on right top 3. Right Top 4. Right Bottom 5. user r PIP position! Get PIP window position r PIP position!
- Page 18 12. Application Example 15 / 20...
