Retekess TD101 - Keypad Pager Service Guide

Product Parameters

Keypad Pager
Model	TD101	Nixie Tube	0.56 inch*4
IP Rating	IP34	RF Power	360mW
Weight of Product	91.58g	Power Supply	DC 9V/1A
Modulating	433MHz (amplitude modulation)	Dimensions of Product	1308723mm
Material of Product	ABS Quality Environmentally friendly ABS
Voice Pager
Model	TD101	Main Power	AC220V/DC12V2A
Speaker	8Ω20W	Modulating	433MHz (amplitude modulation)
Color of Product	Matte black	Dimensions of Product	26523565mm
Material of Product	ABS/ Quality Environmentally friendly ABS

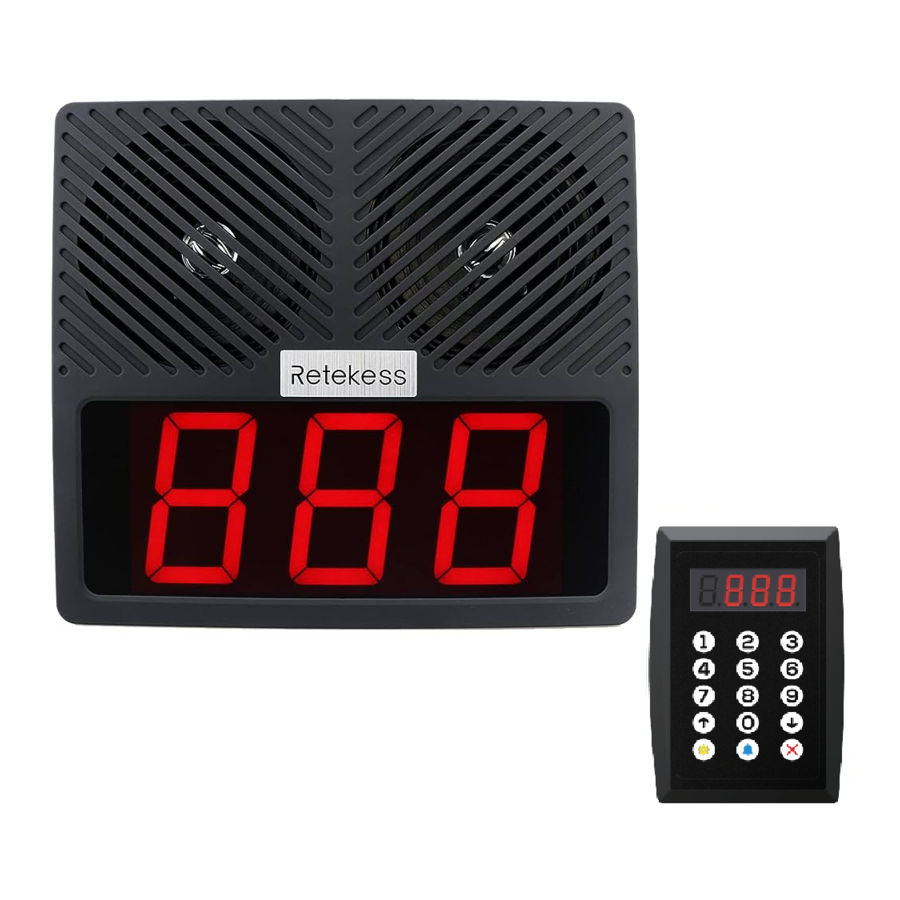

Device Overview

Instruction Manual

Checking ID CODE

Do not press any key after keypad pager is unpacked and plugged in. At the moment, keypad window will display a group of constant three-figure number, which is the ID CODE for the keypad.

Setting ID F1

Long press Function Key and the beeper will display 【F1】. A short press of Function Key tunes the beeper to enter selectable menu. Press UP or DOWN to select the same ID CODE as corresponding keypad and press Reset Key to return to standby mode.

F2:Setting cycling time

Press Function Key to access the menu and the screen will show 【F1】. Press UP to select 【F2】 and then the pager sound "Set Cycling time".
Press Function Key to access the menu and then press UP/DOWN to set up cycling time. The cycling time can be set from 1 second to 99 seconds.
Press UP/DOWN to select desired time. When cycling time is not set to"00", it will turn on recycle function. If the cycling time is "00", it will be in constant display mode and system will not automatically scroll through other call log information to display them on the screen until you press UP/DOWN on the beeper to check call details.
Press Reset Key to return to the standby mode.

F3: Auto-removing time setup

Press Function Key to access the menu and the screen will show 【F1】. Press UP to select 【F3】, and the beeper will sound "Auto-removing time setup".
Press Function Key to access the menu and then press UP/DOWN to set up the time for auto-removing function. The system will clear away call log information some time after calls are received. Auto-Removing Time call be set from 1 second to 240 seconds in the system.
Auto-Removing Feature will be enabled when you press Function Key and do not set time to "000". If the time is set to "000", call details need to be removed manually.
Press Reset Key to return to the standby mode.

F4: Setting Musical Voice Prompt Duration

Press Function Key to access the menu and the screen will show 【F1】. Press UP to select 【F4】and the beeper will sound "Musical Voice Prompt Duration".
Press Function Key to access the sub-menu and press UP to set up the times (1-99 times) of calling.
Press Reset Key to return to the standby mode.

F5: Setting Voice Mode

Press Function Key to access the menu and the screen will show 【F1】. Press UP to select 【F5】and the pager will sound " Voice Prompt Mode".
Press Function Key to access the sub-menu and press UP/DOWN to set up relative Voice Prompt Mode
Press Reset Key to return to the standby mode.

Adjusting the Volume

When the screen shows "— — —"in standby mode, select UP/DOWN to adjust the volume.
(If there is call details in the screen, the volume level of your beeper can not be adjusted until you press Reset Key to return to standby mode)
