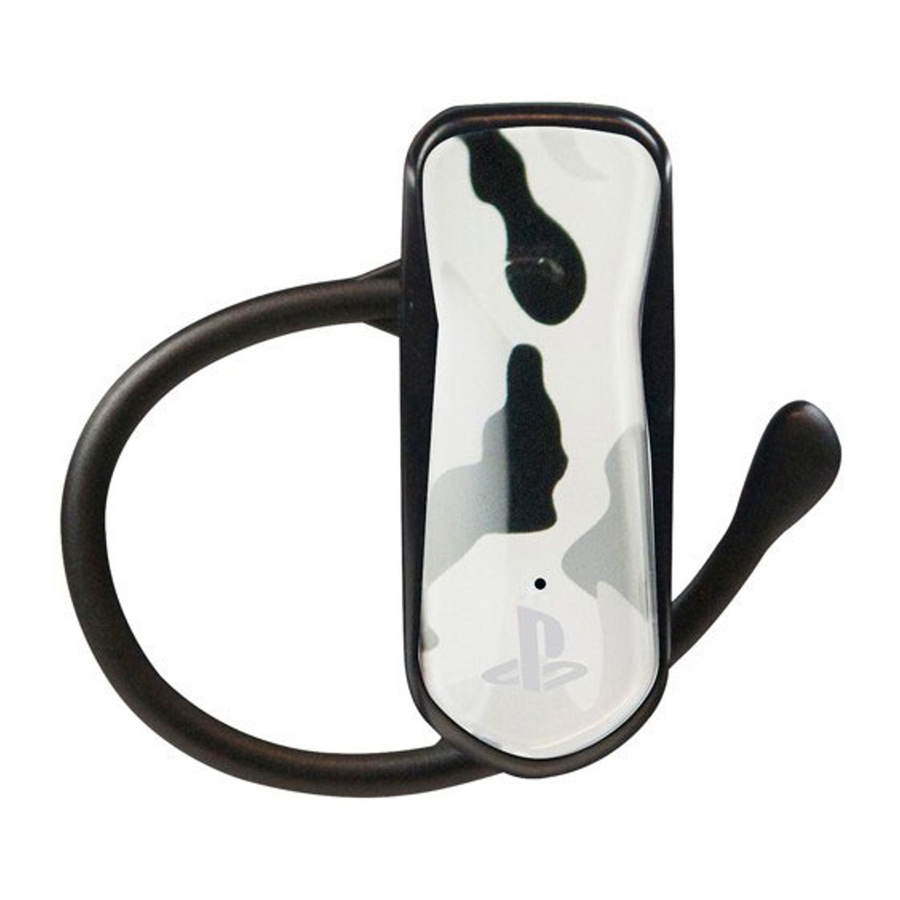

4Gamers CP-BT01 - Bluetooth Headset Manual

CONTENTS

1 x Headset
1 x Charging Cable

CHARGING YOUR BLUETOOTH® HEADSET

Before use please fully charge the headset

  • Plug the charging cable into a free USB connection on your PS3™ system
  • Plug the other end of the charging cable into the Bluetooth® Headset

CHARGING LED INDICATORS

The LED indicator will show the current state of charging for the Bluetooth® Headset as follows:
Red LED - CHARGING
Blue LED - FULLY CHARGED
Once your headset is fully charged remove the charging cable.
NOTE: The headset charging time is approx 2 hours

PAIRING THE HEADSET

  • Ensure the distance between your headset and PS3™ system is within 1 metre
  • Press and hold the Power/Pairing button on the headset for approx 8 – 10 seconds, the light will flash rapid blue first, continue holding the button until the blue light is lit solid

SETTING UP THE PS3™ SYSTEM FOR PAIRING

Setup your PS3™ System for pairing as follows:

  • Go to "Settings" > "Accessory Settings" > "Manage Bluetooth® Devices"
  • You will then see a message on-screen "There are no Bluetooth® Devices registered. Do you want to register a device"
  • Press X to select "Yes"
  • Press X to select "Start Scanning"
  • Once the "4Gamers Bluetooth® headset" has been found press X to select
  • You will now need to enter the Passkey of "0000" and select OK

CHAT SETTINGS

So that you can hear other players you must setup your PS3™ System as follows:

  1. Go to "Settings" > "Accessory Settings" > "Audio Device Settings"
  2. Select "Input Device" and choose "4Gamers™ Bluetooth® Headset" from the options
  3. Select "Output Device" and choose "4Gamers™ Bluetooth® Headset" from the options
  4. Select "Microphone Level" and adjust so that the on-screen audio indicator bar just reaches the red area when you speak loudly. If you select a level that is too high you may encounter feedback from noise around you
  5. Select "OK" to save

SPECIFICATIONS

  • USB Charger USB +5V
  • High-capability Rechargeable Lithium Polymer Battery
  • Battery Voltage: 3.7V
  • Class 2 Operation
  • Talk Time Continous 3 hours / upto 8 Hours Normal Use
  • Standby Time: 60 hours

INDICATOR LIGHT

  • Pairing - BLUE
  • Waiting for connection - Flashing slowly once every 2 seconds
  • Connecting - Flashing rapidly once within 2 seconds
  • Low Power – Flashing RED three times every 2 seconds
  • Charging - RED
  • Fully Charged – BLUE

IMPORTANT SAFEGUARDS & PRECAUTIONS

  1. Children should always be supervised when using this product
  2. This unit is for indoor use only, do not expose to dust, direct sunlight, wet weather conditions, high humidity, high temperatures or mechanical shock
  3. Do not expose to splashing, dripping, rain or moisture. Do not immerse in liquid
  4. Do not position any cables where they would be subjected to extreme heat or flames
  5. Keep all cables away from oil or sharp objects
  6. Avoid any unnecessary strain of cables
  7. Never carry the unit by its cables
  8. Do not use the charging cable supplied with any other attachment, unit or equipment
  9. Do not attempt to use the equipment with any charging cable other than the one supplied
  10. The charging connections are not to be short-circuited
  11. Do not disassemble; there are no serviceable parts inside
  12. For external cleaning, use a soft, clean, damp cloth only. Use of detergents may damage the cabinet finish and leak inside

BATTERY CARE

  1. The battery used in this headset is a rechargeable type and is not replaceable
  2. Never dispose of this headset in a fire, as this can cause the battery to explode
  3. The rechargeable battery should not be removed from the equipment
  4. Rechargeable batteries are only to be charged under adult supervision
  5. Children should always be supervised when charging the battery
  6. The charging connection should not to be short-circuited
  7. Once the headset is fully charged disconnect its USB connection
  8. Do not leave the headset on charge for longer than 2 hours
  9. Do not leave the headset on charge overnight or while unattended
  10. Do not attempt to charge the headset with any other cable or adaptor other than the one supplied

RECYCLING


Where you see this symbol on any of our electrical products or packaging, it indicates that the relevant electrical product should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product, please dispose of it in accordance with any applicable local laws or requirements for disposal of electrical equipment. In doing so, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste.
This symbol may be used on batteries in combination with additional chemical symbols. The chemical symbols for mercury (Hg) or lead (Pb) will appear if the battery contains more than 0.0005% mercury or more than 0.004% lead. This product contains a battery, which is permanently built-in for safety, performance or data integrity reasons. The battery should not need to be replaced during the lifetime of the product and should only be removed by skilled service personnel. To ensure the correct waste treatment of the battery, please dispose of this product as electrical waste.
Not recommended for children under 6 years

WARRANTY

This product is guaranteed for a period of one year from the date of purchase. During this period if there is a defect due to faulty materials, or workmanship the retailer from whom you purchased it will replace it with the same or a similar model on production of your purchase receipt or proof of purchase. This guarantee does not cover defects arising from accidental damage, misuse or wear and tear, and is available only to the original purchaser of the product. This does not affect your statutory rights.

HELPLINE INFORMATION

The Helpline is a live one-to-one service
Hours: 10:00 am till 5:00pm, Monday to Thursday / 10:00 am till 4:00pm, Friday
UK Tel: 0870 609 1080 (All calls charged at national rate)
Eire: Tel +44 1204 369233 (All calls charged at international rate)
Email: help@4Gamers.net
Web: www.4Gamers.net
Twitter: @4GamersElite
Facebook: 4Gamers/page
To ensure that your call is handled quickly and effectively please ensure that you have the model number, CP-BT01 and any other relevant information regarding your product to hand when you ring.
Not recommended for children under 6 years of age.
