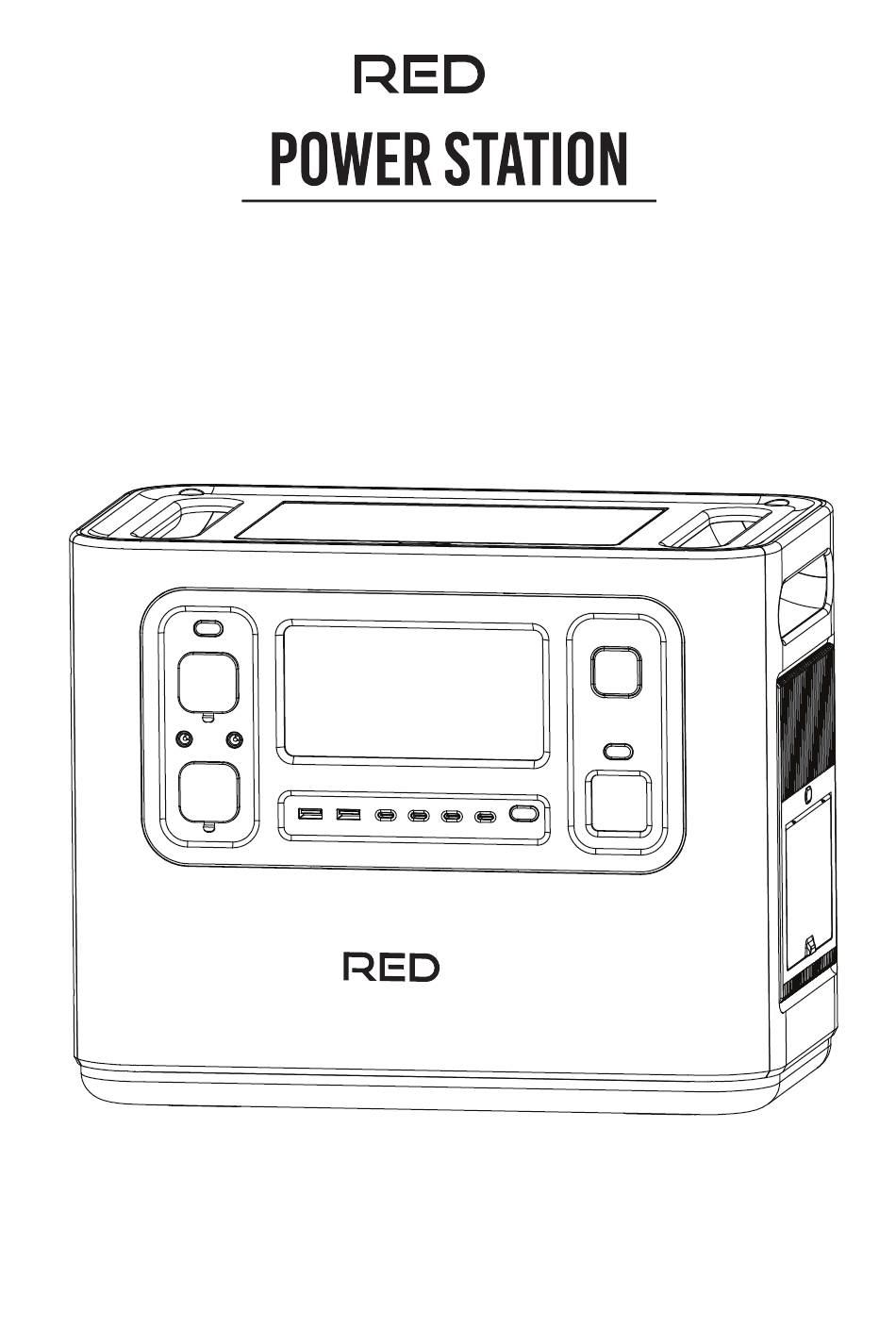

- Page 1 PORTABLE 1248 USER MANUAL...
- Page 2 It uses LiFePO4 ba�eries, has built-in BMS (Ba�ery Management System) and provides protec�on against power surges, high temperature and short circuits. The Red-E 1248 supports a pass-through UPS func�on and has a LiFePO4 ba�ery that is guaranteed to have 80%+ capacity (1000wh) a�er 3000 cycles,...
-
Page 3: Table Of Contents
Contents • What’s included • Product Introduction Bu�on Function Introduction • • Introduction of Display Interface • Troubleshooting table UPS Mode • • Connection of Solar Panels • Car Charging • Product Parameter Ba�ery Specifications • • Disclaimer... -
Page 4: What's Included
What’s included Product Introduc�on This product is a portable power device with a built-in ba�ery pack with charge/discharge func�on. Features: • Outputs: two AC outputs • DC outputs such as USB output, cigare�e lighter output, DC output, etc. Variety of output connection points such as two three-prong plugs, USB-A, Type-C PD3,0, DC5521, XT60, •... - Page 5 Usage Will power up to max of 1200w. Devices include: Precau�ons For Use To avoid shortened ba�ery life and other failures, please avoid long-term storage and use of this. • product in environments with high temperatures and humidity or direct sunlight. •...
- Page 6 Bu�on Func�on Introduc�on AC ON/OFF Button (50/60HZ switch) 1. Power ON/OFF Bu�on • Press and hold the power bu�on for 3 seconds to ac�vate the system and turn on the LCD display. • Press and hold again for 3 seconds to turn it off. 2.
- Page 7 4. DC ON/OFF Bu�on Short-press the DC bu�on to turn on the DC output port, and short press again to turn it off. DC Output X 2 5. LCD Screen Displays the product's ba�ery level and usage informa�on. 6. Cooling Suc�on and Exhaust Port When the product reaches the pre-set temperature threshold, the cooling fan will automa�cally be ac�vated, accompanied by a fan noise (fan noise below 60dB is normal).
-
Page 8: Introduction Of Display Interface
Introduc�on of Display Interface. Usage time remaining Total Output power Total Input power Screen Display Descrip�on Power display: • When the product is in the charging state, the ba�ery progress bar rotates clockwise and the ba�ery level percentage gradually increases. •... -
Page 9: Troubleshooting Table
Troubleshoo�ng Table How to fix Cause Remove the load, and then short The output exceeds the standard and has short-circuited. press the switch in the area that The above output icon corresponds to the icon to turn off flashes and beeps. the alarm. -
Page 10: Ups Mode
UPS Mode This product has a UPS (Uninterrupted Power Supply) func�on. This allows you use the device to power items while the unit charges. The usage and opera�on precau�ons are as follows: See pic 1 below: when connected to the AC Mains power supply, via the AC input, the Power Sta�on will enter UPS working mode. -
Page 11: Connection Of Solar Panels
Please make sure you are using the correct solar panels and solar panel configura�on. The input voltage cannot exceed 50v will damage the device and will render the warranty void. as this • We recommend the following two charging schemes using RED-E solar panels: Scheme one Scheme two... -
Page 12: Car Charging
Car Charging • Connect the car charging port to the power sta�on XT90 port. • Connect the other end of the car charging cable to your car power source such as a cigare�e lighter. The connec�on method is shown in the picture below. This product supports 12V/24V car charger charging, please note the following when car charging: •... - Page 13 Product Specifica�ons 1248Wh Protable Power Station Batery Specifica�on...
-
Page 14: Disclaimer
Users undertake to be responsible for their own ac�ons and all consequences arising therefrom. Red-E is not responsible for any loss caused by the user's failure to u�lise the product in accordance with the User Manual.
