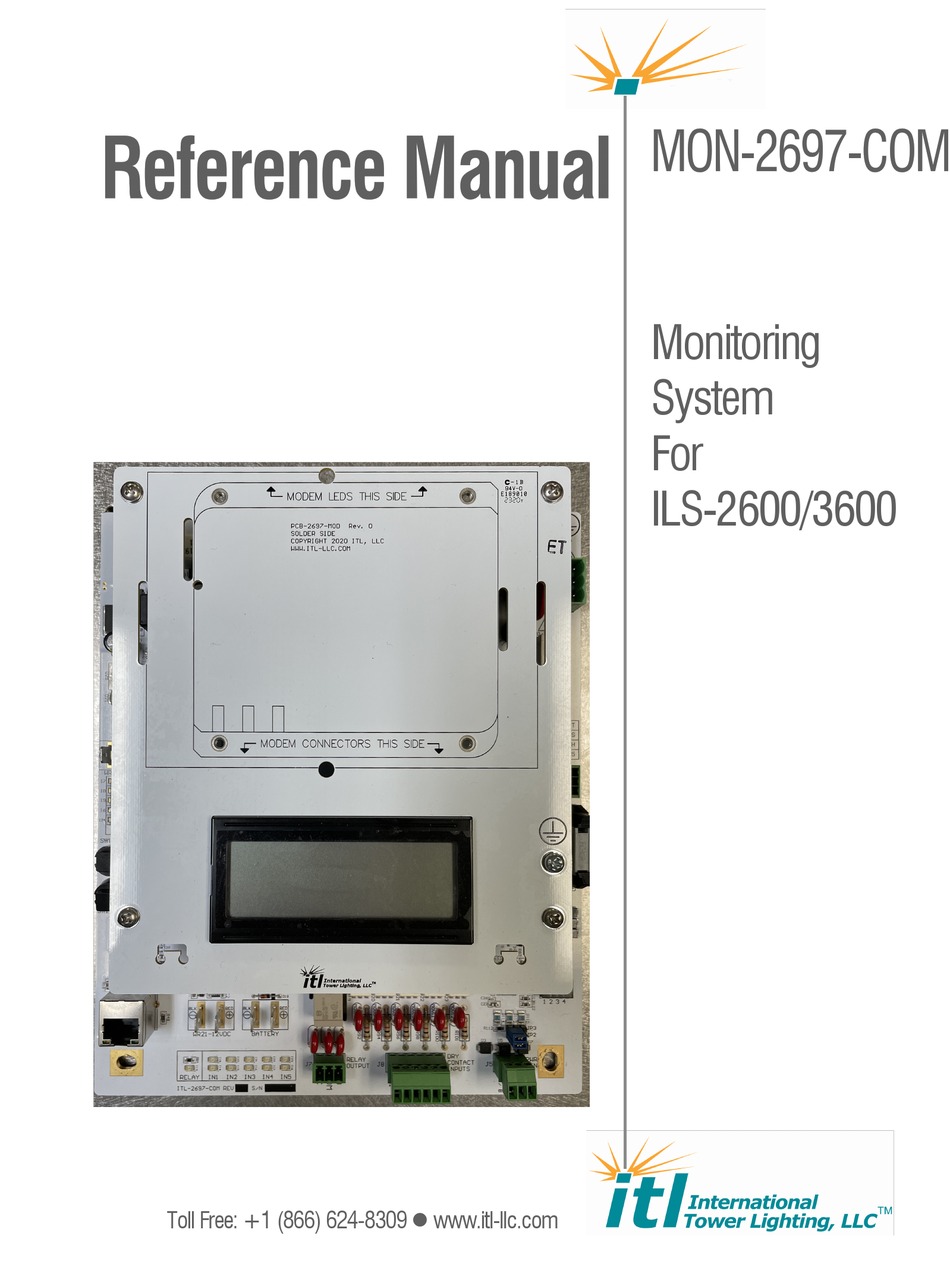

- Page 1 Monitoring System ILS-2600/3600 Toll Free: +1 (866) 624-8309 www.itl-llc.com...
-
Page 2: Front Matter
MON-800, MON-805, MON-830, MON-920-LAN, MON-930, MON-940, MON-G930, ITL- 2697-COM, ITL-920-LAN, ITL-0930, ITL-0940, ITL-0950, ITL-G930, ADP OnSite, ADP Lite, ADP Standard, and ADP Enterprise, and the ITL logo are all trademarks of ITL, LLC. All other trademarks and brand names are the property of their respective proprietors. -
Page 3: Safety Warning
Do not incinerate, disassemble, or puncture the battery. For questions or details please contact The Battery Council International at (312) 664- 6610, or your local waste agency. Copyright 2023 ITL, LLC Page 3 of 24 DOC-2697-MNL Rev0.docx... -
Page 4: Table Of Contents
Product OIDs ......................15 Trap Setup OIDs ...................... 16 MON-2697-COM Alarm OIDs ................... 17 MON-2697-COM Configuration / Status OIDs ............18 ILS-2600/2600 Beacon #1 … #4 OID Overview ............19 ILS-2600/2600 Beacon #1 Alarm OIDs ..............20 ILS-2600/2600 Beacon #1 Configuration OIDs ............ -
Page 5: List Of Illustrations And Tables
MON-2697-COM List of Illustrations and Tables Figure 1: MON-2697-COM Circuit Board Assembly ............8 Figure 2: MON-2697-COM Ethernet Connection ............. 10 Figure 3: Modem power (12VDC) shown in red box. Backup battery input shown in yellow box........................... 10 Figure 4: 5VDC modem power output................11 Figure 5: MON-2697-COM Web Login ................ -
Page 6: Introduction
ILS-3600 LED tower lighting systems. The monitoring system’s rich set of features is directly applicable to monitoring all aspects of these two LED lighting systems. All MON-2697-COM controllers are SNMP enabled and support SNMP v1 and SNMP v2c capabilities to allow for M2M communication. Additionally, the system has built-in web pages to provide a more intuitive human interface and is supported by most web browsers. -
Page 7: Environment
Input Power 120/240VAC at 60Hz, 12VA (max.) Suppression 45 Joule, 275V, Input Power 23 Joule, 275V, Spare Relay Spare Output Relay 120/230 VAC, 1 Amp, Form-C Communication Module Digi IX10 Copyright 2023 ITL, LLC Page 7 of 24 DOC-2697-MNL Rev0.docx... -
Page 8: Installation
MON-2697-COM Installation The MON-2697-COM monitoring system installs directly on the interior door of the ILS- 2600 or ILS-3600 enclosure as indicated below. Figure 1: MON-2697-COM Circuit Board Assembly Copyright 2023 ITL, LLC Page 8 of 24 DOC-2697-MNL Rev0.docx... -
Page 9: Unpacking Your Monitoring System
The quick start guide shows how to install the MON-2697 series monitoring system. The guide provides only basic instructions to personnel familiar with these types of installations. For more details, refer to this document or contact ITL technical support staff. -
Page 10: Ethernet Connection
MON-2697-COM Circuit Board 1. Ethernet Connection Figure 2: MON-2697-COM Ethernet Connection 2. Modem Power and Battery Connections Observe polarity when connecting and disconnecting the battery. Note all battery warnings in the Safety Warning section. Observe polarity when connecting the modem power. -
Page 11: Modem Power (5Vdc)
MON-2697-COM 3. Modem Power (5VDC) Observe polarity when connecting the modem power. Figure 4: 5VDC modem power output. Copyright 2023 ITL, LLC Page 11 of 24 DOC-2697-MNL Rev0.docx... -
Page 12: Web Pages
MON-2697-COM Web Pages The MON-2697-COM has built-in web pages for a more intuitive human interface. The web pages can be accessed with most web browsers by directly typing in the device’s IP address into the browser’s address bar. The IP address is indicated on the MON-2697- COM’s on-board the LCD display. - Page 13 MON-2697-COM Figure 6: MON-2697-COM Alarm Page Copyright 2023 ITL, LLC Page 13 of 24 DOC-2697-MNL Rev0.docx...
-
Page 14: Snmp
SNMP 1. Object Identifiers (OIDs) and Names With the exception of system Object Identifiers (OIDs), all MON-2697-COM OIDs will start with the ITL enterprise specific group number, IEEE Organizationally Unique Identifier (OUI), 43.6.1.4.1.35367 and branch from there as indicated below. The following objects are provided as detailed below. -
Page 15: Product Oids
Product OIDs The following OIDs are read only. OID Branch: iso(1).org(3).dod(6).internet(1).private(4).itl(35367) Name Description 1.3.6.1.4.1.35367.10.1 prodName Site ID 1.3.6.1.4.1.35367.10.2 prodVersion Firmware Version 1.3.6.1.4.1.35367.10.3 prodDate Firmware Version Date Figure 8: Product OIDs Copyright 2023 ITL, LLC Page 15 of 24 DOC-2697-MNL Rev0.docx... -
Page 16: Trap Setup Oids
MON-2697-COM Trap Setup OIDs The MON-2697-COM supports sending traps to up to two destination IP addresses. Traps can be enabled and configured through a SNMP manager or the MON-2697- COM’s build-in web pages. If enabled, traps are sent for any change-of-state of MON- 2697-COM parameters which have been configured through either the web pages or otherwise. -
Page 17: Mon-2697-Com Alarm Oids
Alarm Description, ASCII cription string, 0..2 Figure 10: MON-2697-COM Alarm OIDs Alarms are acknowledged by issuing a SNMP Set to the corresponding OID. This will prevent the alarm from being resent unless the alarm re-occurs. Copyright 2023 ITL, LLC Page 17 of 24 DOC-2697-MNL Rev0.docx... -
Page 18: Mon-2697-Com Configuration / Status Oids
MON-2697-COM MON-2697-COM Configuration / Status OIDs All other OIDs are read only. OID Branch: iso(1).org(3).dod(6).internet(1).private(4).itl(35367) Name Description 1.3.6.1.4.1.35367.11.3.1.1.1 comm2697InstBcnID Beacon Installed Index, 0..3 1.3.6.1.4.1.35367.11.3.1.1.2 comm2697InstBcnState Beacon Installed State, 0..3 (0=not installed, 1=installed) 1.3.6.1.4.1.35367.11.4.1 comm2697MdmOnAfterP ASCII string wrLoss 1.3.6.1.4.1.35367.11.4.2 comm2697MdmRstAfter ASCII string RUOK 1.3.6.1.4.1.35367.11.4.3... -
Page 19: Ils-2600/2600 Beacon #1
MON-2697-COM ILS-2600/2600 Beacon #1 … #4 OID Overview The MON-2697-COM can monitor up to 4 ILS-2600/3600 beacons daisy chained via the ILS-2600/3600’s RS-485 communication interface. Beacons can be installed and un-installed via the build-in webpages. NOCOMM alarms apply for any installed beacon not found and/or for any un-installed beacon found. -
Page 20: Ils-2600/2600 Beacon #1 Alarm Oids
Figure 12: ILS-2600/3600 Beacon #1Alarm OIDs Alarms are acknowledged by issuing a SNMP Set to the corresponding OID. This will prevent the alarm from being resent unless the alarm re-occurs. Copyright 2023 ITL, LLC Page 20 of 24 DOC-2697-MNL Rev0.docx... -
Page 21: Ils-2600/2600 Beacon #1 Configuration Oids
ASCII string 1.3.6.1.4.1.35367.12.2.5 bcn1InfraredEnabled ASCII string 1.3.6.1.4.1.35367.12.2.6 bcn1NightFlashRate ASCII string 1.3.6.1.4.1.35367.12.2.7 bcn1NumberSidelights ASCII string 1.3.6.1.4.1.35367.12.2.8 bcn1SidelightFunction ASCII string 1.3.6.1.4.1.35367.12.2.9 bcn1Installed ASCII string Figure 13: ILS-2600/3600 Beacon #1 Configuration OIDs Copyright 2023 ITL, LLC Page 21 of 24 DOC-2697-MNL Rev0.docx... -
Page 22: Ils-2600/2600 Beacon #1 Status Oids
ASCII string 1.3.6.1.4.1.35367.12.3.12 bcn1CurrentWhiteStr4 ASCII string 1.3.6.1.4.1.35367.12.3.13 bcn1CurrentWhiteStr5 ASCII string 1.3.6.1.4.1.35367.12.3.14 bcn1CurrentWhiteStr6 ASCII string 1.3.6.1.4.1.35367.12.3.15 bcn1CurrentRedStr ASCII string 1.3.6.1.4.1.35367.12.3.16 bcn1CurrentInfraredStr ASCII string Figure 14: ILS-2600/3600 Beacon #1 Status OIDs Copyright 2023 ITL, LLC Page 22 of 24 DOC-2697-MNL Rev0.docx... -
Page 23: Ils-2600/2600 Beacon #1 Mode/Pec Oids
Red Night) 1.3.6.1.4.1.35367.12.4.2 bcn1PECMode ASCII string (Day, Night) 1.3.6.1.4.1.35367.12.4.3 bcn1ManualSwitchMo ASCII string (Day, Night, Auto) 1.3.6.1.4.1.35367.12.4.4 bcn1RemoteOverride ASCII string (Day, Night, Auto) Mode Figure 15: ILS-2600/3600 Beacon #1 Mode/PEC OIDs Copyright 2023 ITL, LLC Page 23 of 24 DOC-2697-MNL Rev0.docx... -
Page 24: Technical Support And Contact Info
For information on the ITL lighting and/or monitoring systems’ basic functions, refer to this manual and the accompanying drawings. For additional help with the installation or operation of any ITL products, please contact ITL, LLC at one of the following below. Web and Internet Sites Corporate home page: http://www.itl-llc.com...
