Summary of Contents for Clenergy TNK-10000-LV-A1

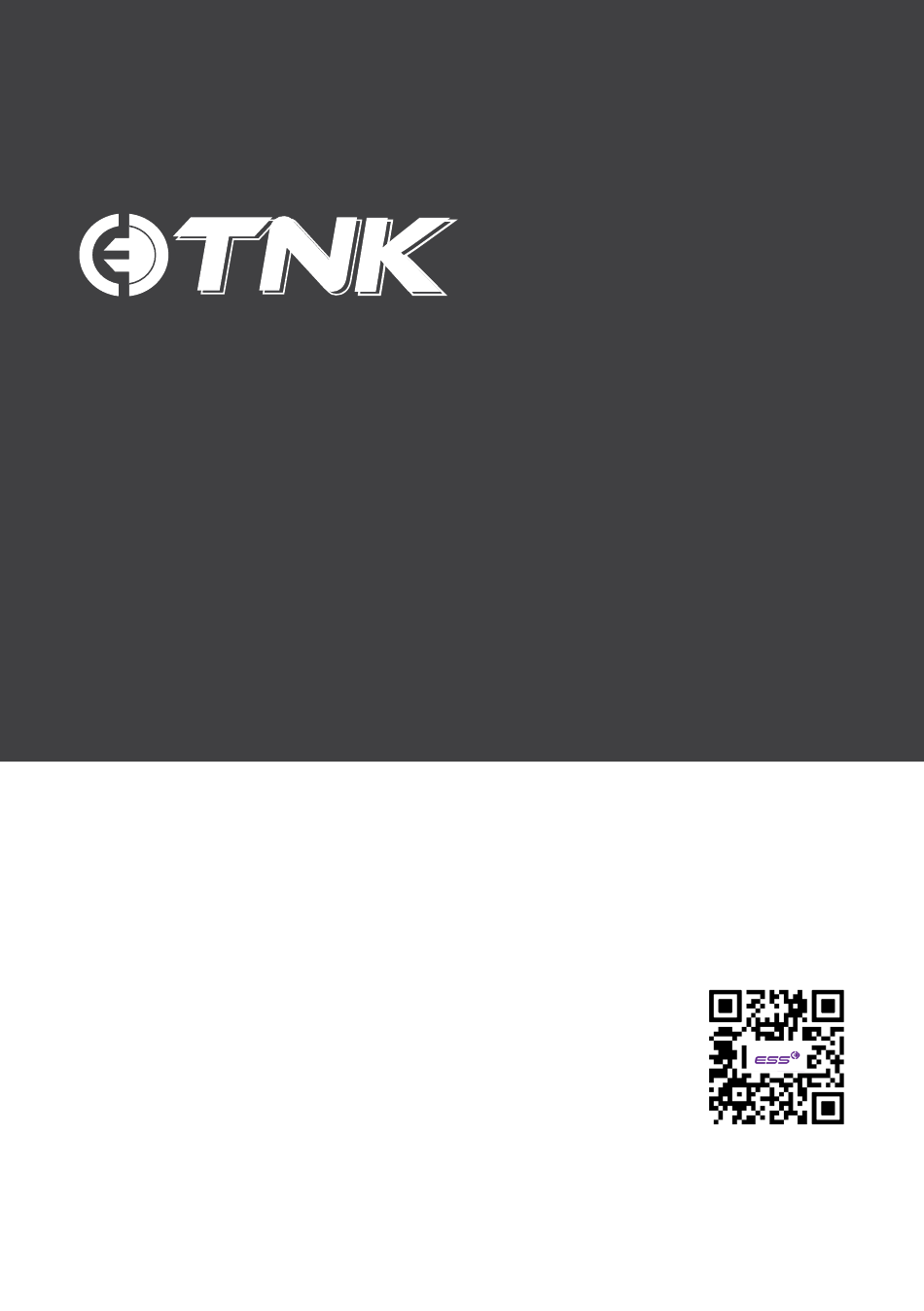

- Page 1 TNK-10000-LV-A1 User Manual Ver. 1.2 / Last Updated - Aug 2023...
- Page 2 User Manual / TNK-10000LV-A1 Index Statement of Law Safety Precautions 3 - 4 Preface Introduction 6 - 7 - Brief Introduction - Product Properties - Product Identity Definition Product Specification 8 - 12 - Size and Weight / Performance Parameter 9 - 10 - Interface Definition 11 - 12...
-
Page 3: Safety Precautions
Statement of Law TNK is an energy storage solution designed in Australia and manufactured by Xiamen Well Energy Technology Co., Ltd. Clenergy Technologies is the majority shareholder in this joint venture – Xiamen Well Energy. Xiamen Well Energy Technology Co., Ltd. owns the copyright of the document. - Page 4 User Manual / TNK-10000LV-A1 Caution Our product has been inspected before shipment. Please contact us if you find components missing, damaged or abnormal phenomena, such as a bulging outer case. For safety reasons, the product should be grounded properly before use. To achieve a proper installation and the best outcome for the system, please ensure that the parameters of the connected devices are compatible.
-
Page 5: Safety Statement
Preface Manual Declaration TNK-10000-LV-A1 Lithium Iron Phosphate(LiFePO4) Battery is an external battery product used to store electricity for residential use. TNK battery can be charged through an inverter by either grid power or solar power. The stored energy could then be used to supply electricity to the home to reduce grid usage(maximum self consumption). -
Page 6: Brief Introduction
Introduction Brief Introduction TNK-10000-LV-A1 series is equipped with a LiFePO4 battery for residential use. This product with cutting-edge battery storage technology is developed based on customer needs and market trends. The purpose is to offer a high-quality product that can supply stable electricity to custom- ers. - Page 7 User Manual / TNK-10000LV-A1 Product Identity Definition Battery Energy Storage System Nameplate Battery voltage is higher than safe voltage. Direct contact may cause an electric shock hazard. Be careful with your actions and be aware of the dangers. Read the user manual before using. Do not dispose of this product with general household waste.
-
Page 8: Product Specification
User Manual / TNK-10000LV-A1 Product Specification Size and Weight / Performance Parameters Product Series TNK-10000-LV-A1 Nominal Voltage 51.2 V Nominal Capacity 200Ah Dimensions 570 x 190 x 972 mm Weight 109 kg IP Rating IP65 Work Voltage Range 44.8 ~ 57.6V Nominal Energy 10.24 kWh... -
Page 9: Interface Definition
COM IN the communication cable. When the battery is used in parallel: This CAN/RS485 communication socket is connected to the COM OUT interface of the next TNK-10000-LV-A1 through communication cable. Negative The battery Negative DC connector Connector When the battery is used independently: This CAN/RS485 socket is not used. - Page 10 User Manual / TNK-10000LV-A1 ALM light instructions Blue light on Normal state Red light on Fault - Discontinue use and contact customer support Red light flashes Temperature or Voltage out of range - reset device Red light flashes quickly Fault - Discontinue use and contact customer support The communication between BMS board and light board Blue and red lights flash alternately is lost...
-
Page 11: Battery Management System (Bms)
User Manual / TNK-10000LV-A1 Battery Management System (BMS) Voltage Protection When any battery cell’s voltage or the total voltage is lower than the rated protection value during discharging, the Under Voltage Protection over-discharging protection will be activated, and the buzzer while Discharging will sound. -
Page 12: Temperature Protection
User Manual / TNK-10000LV-A1 Temperature Protection When the battery’s temperature exceeds the range of 0 °C during charging, the temperature protection mode will be °C Under/Over temperature activated. The charging of the battery will stop. The protection protection while charging mode will be deactivated when it returns to the rated range of working temperatures. -
Page 13: Installation And Configuration
User Manual / TNK-10000LV-A1 Installation and Configuration Preparations for Installation Safety Requirements This system can only be installed by a person who has been trained in the power-supply system and possesses sufficient knowledge of the power system. During installation, the safety regulations listed below should always be followed: All circuits connected to this power system with an external voltage of less than 48V must meet the SELV requirements defined in IEC60950 standard. - Page 14 User Manual / TNK-10000LV-A1 Tools and Data Tools and meters that may be used are shown in the list below. Screwdriver (Slotted, Phillips) Stripping pliers Temperature meter Torque wrench Electric drill Anti-static bracelet Side cutters Multimeter Cable ties Pointed nose pliers Clamp current meter Tape measure Linesman pliers...
- Page 15 User Manual / TNK-10000LV-A1 What’s in the Box When the equipment arrives at the installation site, loading and unloading should be carried out according to the rules and regulations to prevent the battery from being exposed to sun and rain. Before unpacking, check the total number of packages against the shipping list attached to each package.
- Page 16 User Manual / TNK-10000LV-A1 Engineering Coordination Pay attention to the following items before installation: Power cable specification The power cable specification should meet the requirements of maximum charge/discharge current for each product. Mounting space and bearing capacity Ensure sufficient space to install the battery and that the battery rack and bracket meet the load capacity.
-
Page 17: Equipment Installation
User Manual / TNK-10000LV-A1 Equipment Installation The surface for battery installation must be able to bear the total weight of the battery. Appropriate fixings must be used for installation. Mounting space requirements: in diagram below. Please refer to relevant regulations for further installation requirements. -
Page 18: Wall Mounted Installation
User Manual / TNK-10000LV-A1 3. Drill out the three marked holes with a drill bit. The depth of the hole must be at least 70mm for use with the supplied M6 fixing expansion bolts. 4. Mount the upper wall bracket to the mounting surface with appropriate fixings. - Page 19 User Manual / TNK-10000LV-A1 1. Use the positioning cardboard (provided in the accessory package) and mark the screw hole positions required on the wall. 2. The cardboard must be level while drawing the holes. 3. Based on the position of the marks, drill out the nine marked holes with a 10mm drill bit.
-
Page 20: Electrical Installation
User Manual / TNK-10000LV-A1 Electrical Installation Before connecting the power cables, use a multimeter to measure the cable continuity, short-circuit condition, and positive and negative ports. Mark them clearly on the cable labels. Measuring method: Power cable check Perform visual inspection of cable connections and insulation for any damage. Perform insulation resistance and continuity test. - Page 21 User Manual / TNK-10000LV-A1 The battery is connected to the inverter and is required to use the designated power cable and communication cable within the package. Details are as follow: - Keep the battery system in standby state and DC circuit breaker off, connect the power cable to the interface on the input side of the inverter, and connect the power cable to the interface on the battery side.
-
Page 22: Pin Definition
User Manual / TNK-10000LV-A1 Pin Definition Foot position Color Definition PIN1 Orange / white 485B PIN2 Orange 485A PIN3 Green / white Reserved PIN4 Blue EXT CANH PIN5 Blue / white EXT CANL PIN6 Green Reserved PIN7 Brown / white INT CANH PIN8 Brown... - Page 23 The number of accessories is determined by the number of parallel batteries. Take three units of TNK-10000-LV-A1 in parallel as an example, the system needs to use: Power cable × 3 pairs, Battery-Inverter communication cable × 1PCS, Battery-Battery communication cable × 2PCS, Combiner box ×...
- Page 24 User Manual / TNK-10000LV-A1 Power distribution box Battery+ Battery- INVERTER POWERBOX Battery CAN TNK LV10 CAN IN No.1 CAN OUT POWERBOX TNK LV10 CAN IN No.2 CAN OUT POWERBOX TNK LV10 CAN IN No.3 CAN OUT - Installation and Configuration -...
-
Page 25: Dip Switch Position
User Manual / TNK-10000LV-A1 Battery Module DIP Switch Definition and Description DIP switch position (master communication protocol and baud rate selection) Baud rate selection Define different protocols: Distinguish between master and slave OFF: CAN: 500K,485: 9600 ON: CAN: 250K,485: 115200 DIP switch description: When the batteries are connected in parallel, the master communicates with the slaves through the CAN interface. - Page 26 Procedures are given as follows: a. Remove the screws on the rear inspection panel on the TNK-10000-LV-A1 and open the back panel. b. Find the red DIP switch on the BMS. c. Set the DIP switch to the correct state.
- Page 27 ) If the equation holds after calculation, communication within the TNK-10000-LV-A1 is working. 2. If the TNK-10000-LV-A1 shows that blue and red lights flash alternately, and SOC is flashing, there is a fault in communication between units.
- Page 28 After the battery system installation is completed and the system operates normally, you need to register the product installation and use the information for product warranty. Please go to www.clenergyess.com to complete your registration TNK-10000-LV-A1 Power of Hybrid Inverter/ Off-grid Inverter...
-
Page 29: Alarm Description
User Manual / TNK-10000LV-A1 Use, Maintenance and Troubleshooting Battery System Usage and Operation Instructions After completing the electrical installation, follow the instructions below to start the battery system. 1. Ensure that the circuit breaker on the TNK battery is in an OFF state. 2. - Page 30 User Manual / TNK-10000LV-A1 Main Alarm and Protection Alarm category Alarm indication Action State Over-current RED light flashing Reduce the charging current when charging Buzzer start below the rated value. Over-temp RED light on Stop charging and find out Charge state protection the cause of the issue.
- Page 31 ALM light comes on circuit. Verify the external Communication fault The TNK-10000-LV-A1 communication cable is between product and ALM light is flashing plugged in correctly. Verify product, or between yellow light cable using ethernet tester.
- Page 32 A Clenergy Technologies Company 999 -1009 Min’an Rd, Xiang’an District 361101, Xiamen, Fujian, China Global Contact Numbers : +86 592 311 0088 | AU : +61 3 9239 8088 : +81 45 228 8226 DE: +49 (0) 40 3562 389 00 | TH: +66 (0) 2 277 5201 | PH: +63 977 840 7240...
