Summary of Contents for Carrefour CCD20V2A

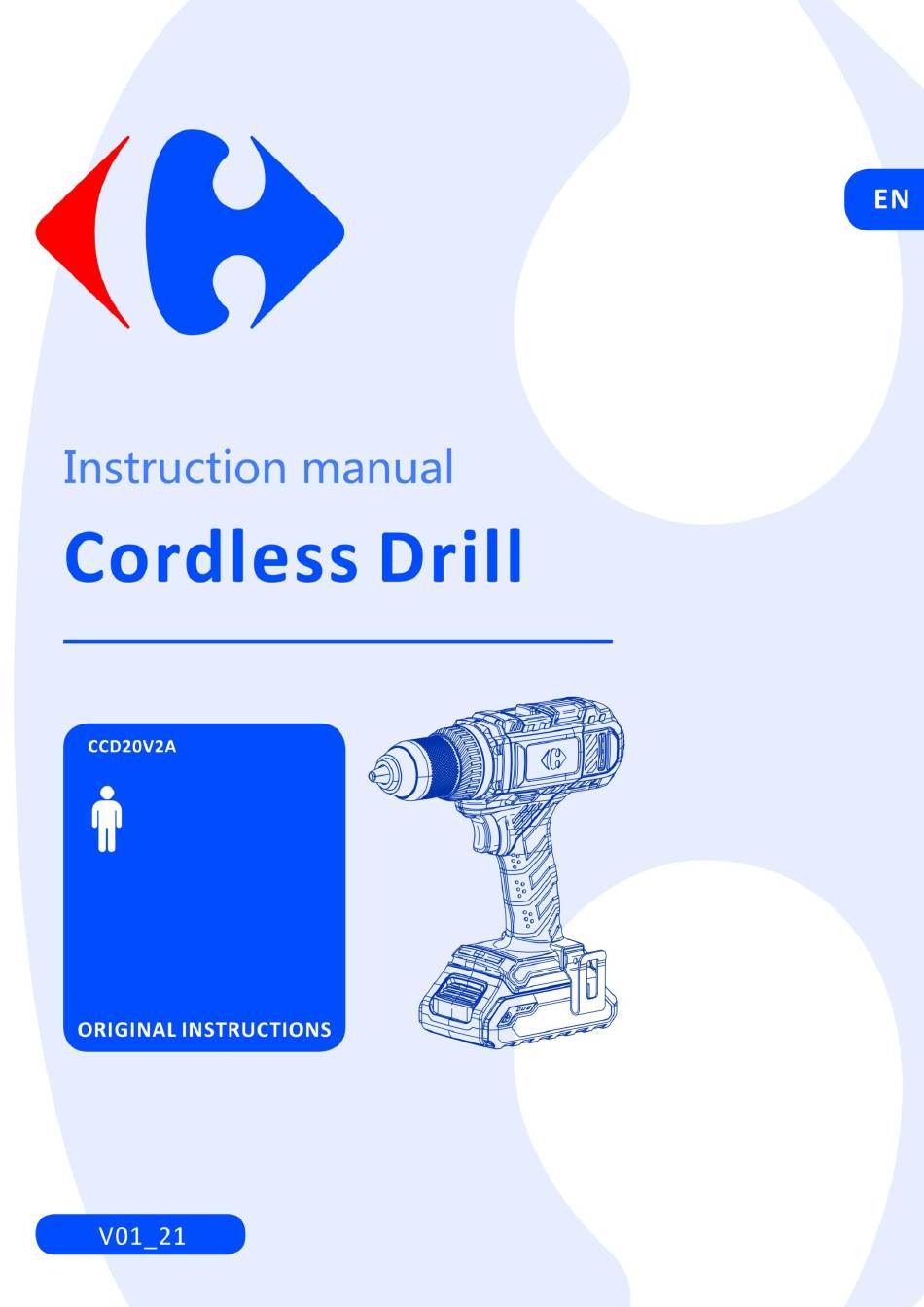

- Page 1 (DY94273)
- Page 2 Congratulation on your purchase. The quality team at CARREFOUR cares for its products to meet conformity and performances. Paying close attention to your satisfaction, our experts work all day on the improvement of our products. For assembly and/or maintenance and/or use of your product, you can use: These products are available in CARREFOUR stores.
- Page 3 Pictograms used Warning symbols with information on damage and injury prevention. Read the operation instructions carefully. Read and understand all instructions before operating the product. Follow all warnings and safety instructions. Electrical products must not be disposed of with the domestic waste. Protect the rechargeable battery from sunlight and heat (max.50ºC) .
-
Page 4: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................... 5 PRODUCT DESCRIPTION ........................10 INTENDED USE ............................13 BEFORE USE ............................13 OPERATION ............................15 CLEANING & MAINTENANCE ......................... 17 STORAGE AND TRANSPORTATION ......................17 REPLACEMENT PARTS /ACCESSORIES ....................18 TROUBLESHOOTING ..........................18 DISPOSAL ............................. 19 DECLARATION OF CONFORMITY ...................... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 6 g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
- Page 7 b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. DRILL SAFETY WARNINGS 1. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss. 2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. 3.
- Page 8 2. Hearing damage if effective hearing protection is not worn. 3. Body injuries caused by vibration emissions if the electrical appliance is used improperly or for a prolonged or poorly maintained period. WARNING! This device produces an electromagnetic field during operation. This field may interfere in certain circumstances with active or passive medical implants.
- Page 9 causing electrolyte leakage, cell and battery heating, bursting and fire. 18. Avoid the battery to directly connect to electric source such as a car lighter socket, or car battery, which may cause excess current to flow at high voltage and can cause electrolyte leakage, overheating of a cell or battery, bursting and fire.
-
Page 10: Product Description
PRODUCT DESCRIPTION (Fig. A) - Page 11 (Fig. B) OVERVIEW (Fig. A) 1. Keyless drill chuck 9. Battery charger 2. Torque selection 10. RED Charge control LED 3. Gear selection (2 speed levels) 11. Bits 4. Switch for clockwise / counter-clockwise 12. Belt clip rotation, lock 13. GREEN charge control LED 5.
- Page 12 DEVICE DESCRIPTION The cordless drill has two speed levels: while the first speed level is suitable for screwing, drilling can be performed using the second speed level. The integrated torque selection, including one drilling setting, allows you to use the optimum power for every application, adapted to the material and screw size.
-
Page 13: Intended Use
accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total values and the declared noise emission values may also be used in a preliminary assessment of exposure. WARNINGS The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed;... - Page 14 1. The battery can be damaged in case of improper charging. 2. Remove the charger's mains plug before inserting or removing the battery. The battery is partially charged upon delivery to avoid damage to the battery caused by a deep discharge. Prior to initial start-up and when the battery is low, the battery should be charged.
-
Page 15: Operation
5. Tighten the keyless drill chuck (1) by turning clockwise. TORQUE SELECTION /DRILLING SETTING Using the torque selection (2), you can choose the desired, optimal torque setting. 1. Select a low torque for smooth-running screws or soft materials. 2. Select a high torque for tight screws and hard materials as well as unscrewing. 3. - Page 16 3. When using countersunk screws, the drill hole should be countersunk beforehand. 4. Especially smaller screws and bits may be damaged when selecting an excessive torque and /or speed at the tool. DRILLING IN GENERAL 1. Take short breaks regularly during drilling, when doing so, take the drill bit out of the drill hole so that the drill bit can cool down.
-
Page 17: Cleaning & Maintenance
higher the speed is. 1. Check whether the tool clamped in and the torque setting selected are suitable for the intended application. 2. Check whether the workpiece is secured and the worktop prepared correspondingly. 3. Press and hold the on/off switch (5) during screwing or drilling. 4. -
Page 18: Replacement Parts /Accessories
2. Hold onto the mains plug while pulling the power cable of the charger out the mains socket. 3. Allow the device to cool down. 4. Remove the battery form the device. 5. Remove the tool from the tool holder 6. -
Page 19: Disposal
The materials characteristics is not suitable Check the materials and make sure the materials materials are suitable for the drill bits Check the position of the switch for The switch for clockwise/ counter-clockwise On/off rotation is in the center position clockwise/ counter-clockwise rotation, set switch the desired rotational direction to unlock... -
Page 20: Declaration Of Conformity
DECLARATION OF CONFORMITY Carrefour Marchandises Internationales 93, avenue de Paris 91342 Massy France Herewith we declare that the product Cordless Drill Model number: CCD20V2A(DY94273) S/N: 20210706914-20210708917 Is in conformity with the following European Directives 2006/42/EC 2014/30/EU 2014/35/UE 2011/65/EU & (EU) 2015/863... -
Page 21: Warranty
WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 22: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 23: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 24 (DY94273)
