Summary of Contents for LG 43UT662M Series

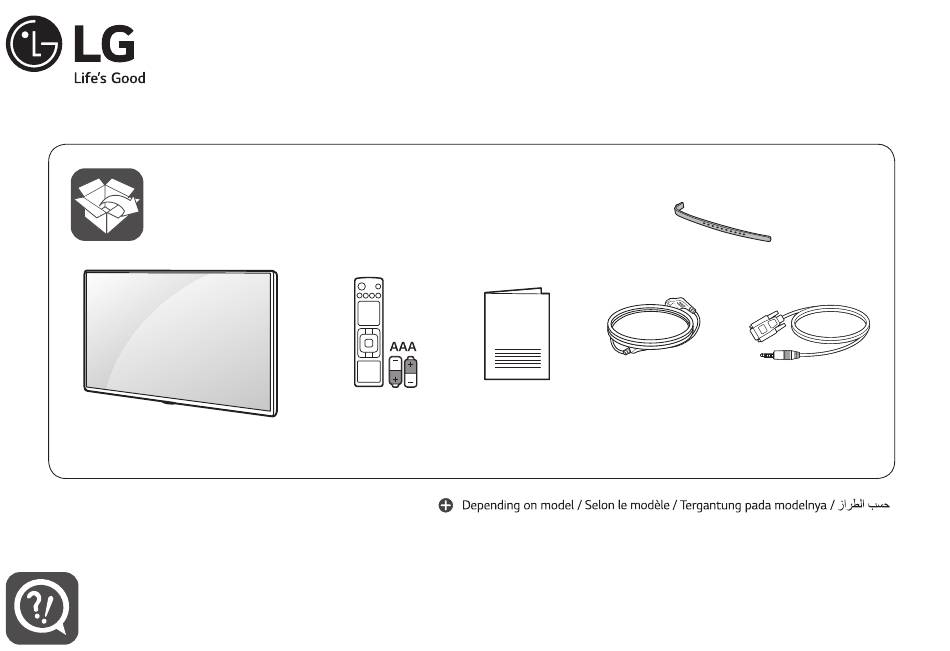

- Page 1 LED TV 43/49/50/55UT662M* www.lg.com Head...
- Page 2 WARNING : To prevent injury, this apparatus must be securely attached to the desk/wall in accordance with the Safety and Reference. AVERTISSEMENT : pour éviter toute blessure, cet appareil doit être fermement xé au bureau/mur conformément aux instructions dans Sécurité et référence. PERINGATAN : Untuk mencegah cedera, peralatan ini harus terpasang dengan aman ke meja/dinding sesuai dengan Keselamatan dan Referensi.
- Page 3 Satellite IN...
- Page 4 Satellite IN...
- Page 7 43UT662M0GC 49UT662M0GC 1110 81.1 11.1 50UT662M0GC 1130 86.3 11.3 55UT662M0GC 1244 87.1 14.3 AC 100-240 V ~ 50 / 60 Hz...
- Page 9 OWNER’S MANUAL Safety and Reference LED TV* * Disclaimer LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. *MFL71693902* www.lg.com Copyright © 2019 LG Electronics Inc. All Rights Reserved.
- Page 10 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
- Page 11 Unauthorized modification could void the user’s authority to operate this product. • Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.
-
Page 12: Separate Purchase
Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes. -
Page 13: Wall Mounting Bracket
Wall Mounting Bracket • Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area. Make sure to use screws and wall mount bracket that meet the VESA standard. -
Page 14: Mounting On A Table
Mounting on a Table Attaching the TV to a Desk (Depending on model) The TV should be attached to a desk so it cannot be pulled in a forward/ 1 Lift and tilt the TV into its upright position on a table. backward direction, potentially causing injury or damaging the product. -
Page 15: Using The Kensington Security System
TV and a table. performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. -
Page 16: Satellite Dish
Connections Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. Antenna/Cable Connect the TV to a wall antenna socket with an RF cable (75 Ω). •... -
Page 17: Other Connections
Other connections External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, Connect your TV to external devices. For the best picture and audio VCRs, audio systems, USB storage devices, PC, gaming devices, and quality, connect the external device and the TV with the HDMI cable. other external devices. -
Page 18: External Speakers
External Speakers Method of volume control port (Depending on model) (Depending on model) • Cable Spec. Each Up / Down pin is pulled to 3.3 V with CPU GPIO. EXTERNAL SPEAKER OUT GND / UP / DOWN CPU detects transition STEREO from 3.3 V to GND level for (8 ) -
Page 19: Using Button
Using Button Network (Depending on model) Wired network connection You can simply operate the TV functions, using the button. This TV can be connected to a Pro:Centric server via the LAN port. After making the physical connection, the TV needs to be set up for network communication. -
Page 20: Adjusting The Angle Of The Tv To Suit View
Adjusting the Angle of the Using Remote Control TV to suit view The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. (Depending on model) To replace batteries, open the battery cover, replace batteries (1.5 Swivel 20 degrees to the left or right and adjust the angle of the TV to V AAA) matching the ends to the label inside the... - Page 21 * To use the button, press and hold for more than 3 seconds. • Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak. (POWER) Turns the TV on or off. • Failure to match the correct polarities of the battery may Adjusts the brightness of the screen to reduce cause the battery to burst or leak, resulting in fire, personal energy consumption.
-
Page 22: Troubleshooting
Troubleshooting Abnormal display • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product. The software version can be updated for improvement in performance. •... -
Page 23: Specifications
Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV (Depending on Country) (Depending on Country) PAL B/B, PAL B/G, PAL D/K, PAL-I DVB-T/T2 Television system SECAM B/G, SECAM D/K DVB-T/T2/C/S/S2 NTSC-M VHF, UHF Programme coverage VHF, UHF, CATV C-Band , Ku-Band DVB-T/T2 &... - Page 24 (Depending on country) Wireless module (LGSBWAC92) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 18 dBm 5,150 to 5,725 MHz 18 dBm 5,725 to 5,850 MHz 12 dBm Bluetooth Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 8 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency.
-
Page 25: Environment Condition
(Only Philippines) Wireless module (LGSBWAC92) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 18 dBm 5,150 to 5,725 MHz 18 dBm 5,725 to 5,850 MHz 18 dBm Bluetooth Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 8 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table. - Page 26 HDMI-DTV supported Mode HDMI-PC supported Mode • PC audio is not supported. Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode. (Depending on model) Frequency (kHz) Frequency (Hz) 31.46 59.94 Horizontal Vertical 640 x 480p Resolution Frequency (kHz) Frequency (Hz) 31.5 31.46 59.94...
-
Page 27: Supported Audio Formats
AV supported Mode Supported Audio Formats (Depending on country) File Item Info Format Horizontal Vertical Frequency Resolution Frequency (kHz) (Hz) Bit rate 32 Kbps - 320 Kbps 15.73 59.94 Sample freq. 16 kHz - 48 kHz 720 x 480i .mp3 15.75 Support MPEG1, MPEG2... -
Page 28: Supported Video Formats
• ULTRA HD Video : 3840 x 2160, 4096 x 2160 • Some HEVC encoded ULTRA HD videos other than the content VC-1 Advanced Profile (except for officially provided by LG Electronics may not be played. Video WMVA), VC-1 Simple and Main Profiles .asf •... -
Page 29: Open Source Software Notice Information
(Depending on model) The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by LG Electronics Inc. is under license. Other trademarks and trade names are those of their respective owners. - Page 30 IR CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER) (Power On/Off) Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button...
-
Page 31: External Control Device Setup
External Control Device ►B Type Setup RS-232C IN (CONTROL & SERVICE) RS-232C Setup (Depending on model) • Image shown may differ from your TV. Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally. -
Page 32: Communication Parameters
RS-232C Configurations Command Reference List (Depending on model) 7-Wire Configurations Data (Standard RS-232C cable) Command1 Command2 (Hexadecimal) 1 Power 00 to 01 2 [Aspect Ratio] (See p. 25) 3 Screen Mute (See p. 25) 4 Volume Mute 00 to 01 5 Volume Control 00 to 64 6 [Contrast]... -
Page 33: Transmission / Receiving Protocol
Transmission / Receiving Protocol ►To Show TV is Power On/Off. Transmission (Depending on Model) (k)(a)( )([Set ID])( )(FF)(Cr) Transmission (Command1)(Command2)( )([Set ID])( )([Data])(Cr) (a)( )([Set ID])( )(OK/NG)([Data])(x) (Command1) : First command to control the TV. (j, k, m or x) * Similarly, if other functions transmit ‘0 x FF’... - Page 34 4 Volume Mute (Command: k e) 8 [Colour] (Command: k i) ►To control volume mute on/off. ►To adjust the screen colour. You can also adjust mute using the mute button on remote control. You can also adjust colour in the picture settings. Transmission Transmission (k)(e)( )([Set ID])( )([Data])(Cr)
- Page 35 12 Remote Control Lock Mode (Command: k m) 15 [Energy Saving] (Command: j q) ►To lock the front panel controls on the monitor and remote control. ►To reduce the power consumption of the TV. You can also adjust Energy Saving in picture settings. Transmission Transmission (k)(m)( )([Set ID])( )([Data])(Cr)
- Page 36 17 [Equalizer] (Command : j v) ►To adjust equalizer. (a)( )([Set ID])( )(OK/NG)([Data])(x) Transmission 19 Programme [Skip/Add] (Command: m b) (j)(v)( )([Set ID])( )([Data])(Cr) ►To set skip status for the current Programme. Transmission (m)(b)( )([Set ID])( )([Data])(Cr) [Data] 00 : [Skip] Data Frequency [Data] 01 : [Add]...
-
Page 37: External Input
22 [Input] select (Command: x b) (Main Picture Input) * Real data mapping ►To select input source for main picture. 00 : Step 0 Transmission (x)(b)( )([Set ID])( )([Data])(Cr) Step 10 ([Set ID] 10) [Data] Structure Step 15 ([Set ID] 15) 10 : Step 16 ([Set ID] 16) 64 :... - Page 38 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. MODEL SERIAL NO.
