Summary of Contents for EVOLT ME 250

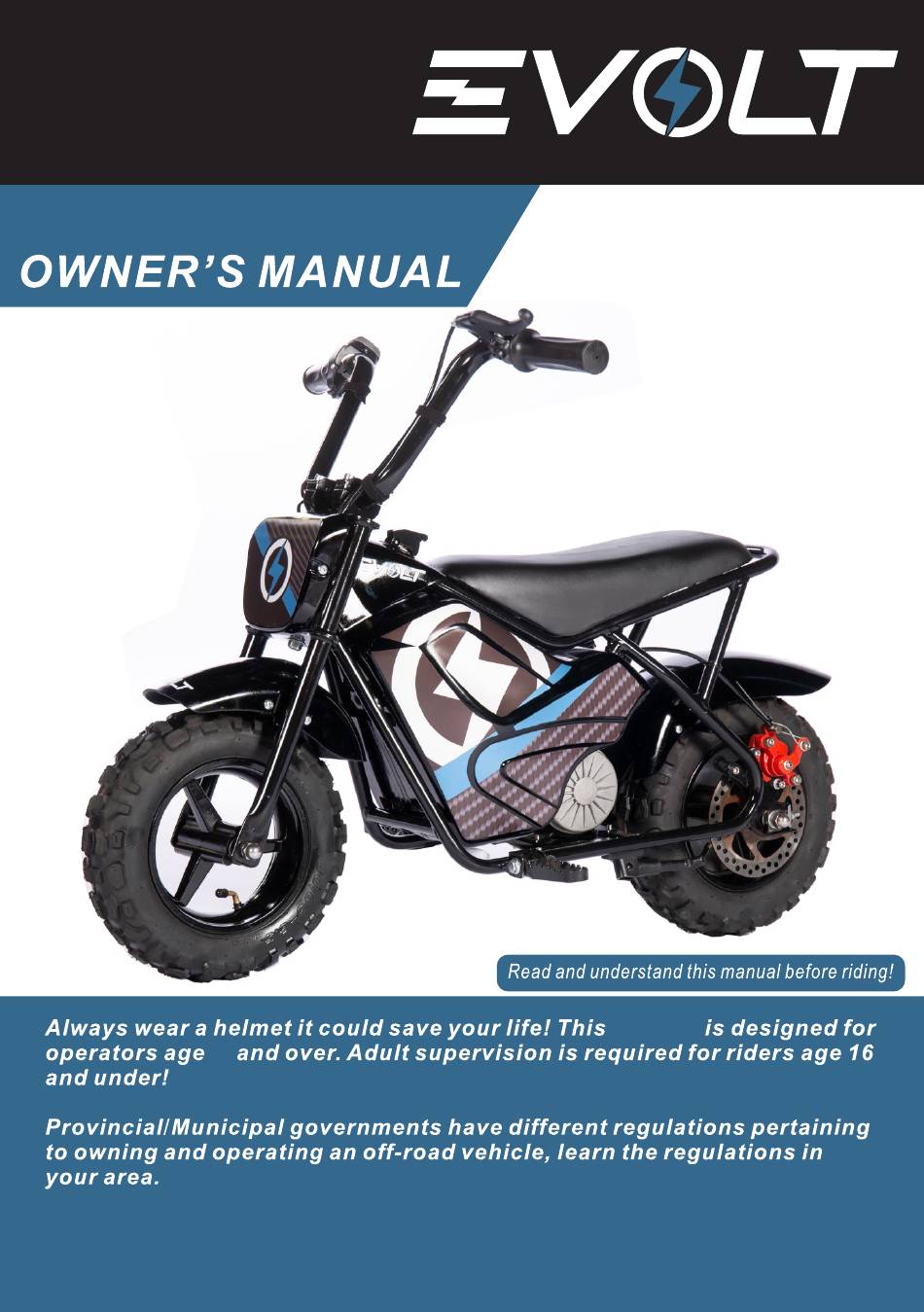

- Page 1 ME 250 250W MAX POWER ELECTRIC Mini Bike Mini Bike www.evoltadventure.com...
- Page 2 ME250 Electric Powered Mini Bike This operator's manual contains important safety information and maintenance information. Read it carefully before using this vehicle. Failing to follow the warnings contained in this operator's manual could result in INJURY or DEATH。 Keep this manual in a safe place. It is very important that this owner's manual be reviewed by any rider and it should remain with the vehicle when transferred to a new owner.
- Page 3 Essential Technical Parameters Vehicle Dry mass (Net Weight):22kg(48lbs); Gross mass (Gross Weight):25kg(55lbs); Maximum load(weight): 45kg (100lbs); Motor Type: DC, with brush; Rated continuous output power: P=250W; Rated speed:2750 士 7.5%rpm; Rated voltage:24V; Rated output torque: 1.21 (N.m) Controls Rated input voltage:24V; Input voltage range:20~28V;...
-
Page 4: Table Of Contents
CONTENTS Names of all structural components …………………….. Introduction……………………………………………………..2 Safety……………………………………………………………...3-5 Initial Setup……..………………………………………………6-8 Operating Controls………………………………………….9-10 Before You Ride……………………………………………..11-12 Basic Operation……………………………………………..13-14 2-Stage Safety Speed Limiter………………………..15 Maintenance &…………………………………………..…..16-21 Troubleshooting Guide…………………………………..22-23 ………..…..24 ME250 Product Registration………... -
Page 5: Names Of All Structural Components
Names of all structural components... -
Page 6: Introduction
Introduction Thanks for your choosing the ME250 Electric Powered Mini Bike! The ME250 mini bike was designed as a recreational vehicle for off- road use only and by a single rider only. This mini bike is built for younger riders who are under 100 lbs. with minimal experience Before riding, please take your time to get acquainted with your mini bike and how it works. -
Page 7: Safety
IMPORTANT SAFETY INFORMATION Your personal safety and the safety of those around you is our primary concern Operating this mini bike safely is an important responsibility and should not be taken lightly We have provided you with safe operating procedures; warning labels on your mini bike and in this manual. - Page 8 IMPORTANT SAFETY INFORMATION Safety is our number one priority. There is an inherent level of risk when using any motorized powersports product and an electric mini bike is no different. Read the following warnings carefully to understand how you can avoid injury to yourself, others and your ME250. RULE NUMBER 1 DANGER READ THIS BOOK COMPLETELY BEFORE RIDING THE FIRST TIME...
- Page 9 RULE NUMBER 5 DANGER RIDE SMART Never attempt to carry a passenger. Keep both hands on the handlebars at all times Never ride while wearing headphones, earbuds, or while using a cell phone. Keep fingers and other body parts away from moving parts like the drive chain and sprocket as injuries may result.
-
Page 10: Initial Setup
Initial Setup STEP 1. UNPACK YOUR ME250.The contents are as follows: ME250 Electric Mini Bike Tool Pouch with tools Battery Charger Owner's Manual Once you have located all of these items, move on to step 2 STEP 2. ASSEMBLE THE HANDLEBARS. Your ME250 arrives almost completely assembled, making it easy to start riding. - Page 11 2. The handlebar Angle can be adjusted. Loosen the 4 M8x20 bolts, adjust the handlebars to a comfortable position, keep the handlebars centered and tighten the bolts. CAUTION Be careful not to lean the handlebars too far forward or backward as this will affect the bike's handling and comfort of the ride. 3.Install front trim panel Install the front trim panel to the front fork assembly with M5X14 bolts and tighten the bolts with a Phillips screwdriver.
- Page 12 STEP 3 Connect the power (The ME250 power supply is disconnected during transit for safety reasons) 1.Plug the fuse into the fuse slot of the power cord and close the cover 2. Place the power cable with the fuse in the battery box STEP 4 CHARGE THE BAT TERY First make sure the power switch is off.
-
Page 13: Operating Controls
OPERATING CONTROLS To operate your electric mini bike you need to be able to operate the throttle, brake and other controls without stopping to look at them. Please study the image below carefully to become familiar with the function and the location of each control... - Page 14 OPERATING CONTROLS When operating your ME250, there are some key operating controls and components that allow you to operate your mini bike Their location and operation information is shown below On/Off Switch 2. Throttle 3. Brake ON/OFF SWITCH ON/OFF switch is conveniently located just ahead of the driver and is equipped with a flip-up cover.
-
Page 15: Before You Ride
BEFORE YOU RIDE Once your bike has been allowed to charge fully, disconnect the battery charger from the bike and from the wall plug, and store it in a safe place Check list before riding Have you completely read and do you thoroughly understand this owner's manual? Have you found all the safety messages on your mini bike and do you understand them? - Page 16 Before you ride You must be certain that you and your mini bike are ready to ride. Below is the pre-ride checklist. Be sure to review all the topics every time before riding PRE-RIAE INSPECTION Check tire pressure with the tire gauge in your ME250 tool kit. Be sure they are at 15-20 psi.
-
Page 17: Basic Operation
BASIC OPERATION The ME250 has a motor and 24 volts of electrical power. It 250 Watt Is very important not to underestimate the ME250. Avoid getting injured. STEP ONE: TURN THE POWER ON This bike is equipped with a main toggle switch that is within easy access of the rider This switch cuts off all power to the motor. - Page 18 BASIC OPERATION STEP FOUR: STOPPING AND PARKING It is always best to park the minibike on a smooth, level surface to avoid damage from accidental tip-overs. Flip down the kickstand (located on the bottom of the frame on the left side) to rest the bike on. Tum the switch to the OFF position and flip down the toggle coyer NOTE: IT IS VERY IMPORTANT TO STORE YOUR ME250 INSIDE, OUT OF THE WEATHER.
-
Page 19: 2-Stage Safety Speed Limiter
2-Stage Safety Speed Limiter The ME250 electric minibike is equipped with a special switch, Adjust speed to suit younger, smaller riders. The switch is located in the battery case under the seat cushion, a hard-to-reach area to restrict access for curious younger children. - Page 20 MAINTAINTNG YOUR MINI BIKE Being an electric-powered vehicle, your ME250 is a relatively low maintenance machine. However, it is important to properly care for the unit to keep it operating properly and safely. Below are items that you will need to care for on a regular basis STORE INSIDE OUT OF THE WEATHER WARNING IT IS CRITICALLY IMPORTANT TO ALWAYS STORE YOUR...
-
Page 21: Maintenance
MAINTENANCE ARIVE CHAIN TENSION (CONTINUEA) 5. Tighten the axle nuts securely to 35-47 N.M. NOTE: To loosen the chain tension, follow the steps above except tum the tensioner bolts counter-clockwise (outward) to loosen LUBRICATING THE ARIVE CHAIN The drive chain on your ME250 must be kept lubricated often to avoid excessive wear. - Page 22 MAINTENANCE In the event of a burned-out fuse, your ME250 will not work when you tum it on and the indicator lights will not light up. To check and/or replace the fuse, follow the steps on the following page: 1. Open the plastic battery case by removing both knob screws (on the front and back of the battery case) and pulling the right side panel off...
- Page 23 MAINTENANCE If not, repeat step 2 until the brake feels right and then tighten the set ring nut ADJUSTING THE BRAKE (CONTINUED) OPTION2: Adjust using the actuator arm on the brake caliper. If you are not able to get enough adjustment using the barrel adjuster, you may need to adjust the brake using the actuator arm on the rear caliper.
- Page 24 MAINTENANCE CHECK THE TIRE PRESSURE It is very important to check the tire pressure before every ride. Running on low tire pressure can create a dangerous situation as the bike will not handle properly and could cause the rider to lose control. To check the tire pressure, locate the air stems inside the rims on each wheel and remove the black plastic cap.
- Page 25 MAINTENANCE WARNING THE ME250 USES LEAD ACID BATTERIES WHICH MUST BE DISPOSED OF PROPERLY DROP THEM OFF AT ANY LOCATION THAT SELLS AUTOMOTIVE BATTERIES. DO NOT DISPOSE THEM IN YOUR HOUSEHOLD TRASH AND NEVER BURN A LEAD ACID BATTERY AS AN EXPLOSION COULD OCCUR WARNING IF A BATTERY LEAK OCCURS, AVOID CONTACT WITH THE ACID AS IT IS CORROSIVE, POISONOUS AND DANGEROUS.
- Page 26 TROUBLESHOOTING GUIAE TROUBLESHOOTING GUIAE PROBLEM POSSIBLE CAUSE SOLUTION Does not Charge the battery for at least 12 Undercharged battery or loose connection hours before using the first time If the bike has been used before, charge for at least 8 hours Check all battery connections and tighten as needed Check the fuse.
-
Page 27: Troubleshooting Guide
TROUBLESHOOTING GUIAE TROUBLESHOOTING GUIAE PROBLEM POSSIBLE SOLUTION CAUSE Charger gets Normal No action is required. The charger warm when in will generate a small amount of heat as the battery is charging Bike does not Brake Adjust brake per instructions on stop adjustment pages 19 of this book... -
Page 28: Me250 Product Registration
Version: 10012201...
