- Page 1 OWNERS MANUAL S3-C6.2...
- Page 2 Introduction Thank you for choosing AI-SONIC product! Finnish AI-SONIC brand is developed by long term car-audio enthusiastics. With our knowhow and passion, we have created product line that meets the needs for both competition and everyday usage. Our team have spent countless hours to make your listening moments as an pleasant experience, and our R&D goal is to produce best possible quality and performance for every price category...

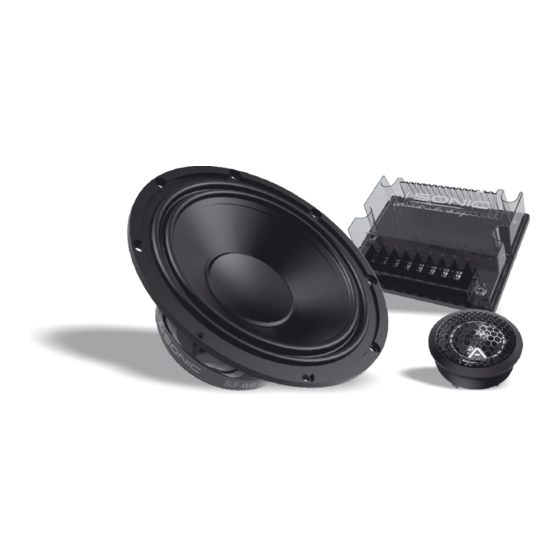

- Page 3 Technical features S3-C6.2 * 6.5" 2-Way Component Speaker System * Black Aluminium Die Cast Basket * Black Aluminium+paper Composite Cone (W)Rubber edge * 1.2 inch ASV Voice Coil * 13.2 Oz Magnet Structure * 27mm Silk Dome Neodymium tweeter * 2-way passive crossover Technical specification...
- Page 4 Wiring your system Tweeter level diagram Increase tweeter level (+3dB) Normal tweeter level S3-C6.2 (0dB) (-3dB) Decrease tweeter level 20Hz 1000Hz 20kHz Frequency (Hz) 2-WAY CROSSOVER INPUT WOOFER TWEETER + - + - + + + - +3dB 0dB -3dB...
- Page 5 Dimensions S3-C6.2 156mm 67mm 165mm 48mm 55mm 44mm diameter Outer Mounting woofer woofer 165mm 143mm tweeter tweeter 55mm 48mm mounting depth woofer tweeter 67mm 26mm 34mm 125mm...
- Page 6 Tweeter setup These values are recommendations by our own experience. When tweeter is mounted towards listener on axis tweeter level adjustment should be -3dB. When mounted towards center of vehicle off axis tweeter level adjustment should be 0dB. On dashmount off...
- Page 7 Use of sound components can impair your ability to hear necessary traffic sounds and may constitute a hazard while driving your automobile. AI-SONIC accepts no liability for hearing loss, bodily injury or property damage as a result of use or misuse this product.
