71021-T1 Installation Guide

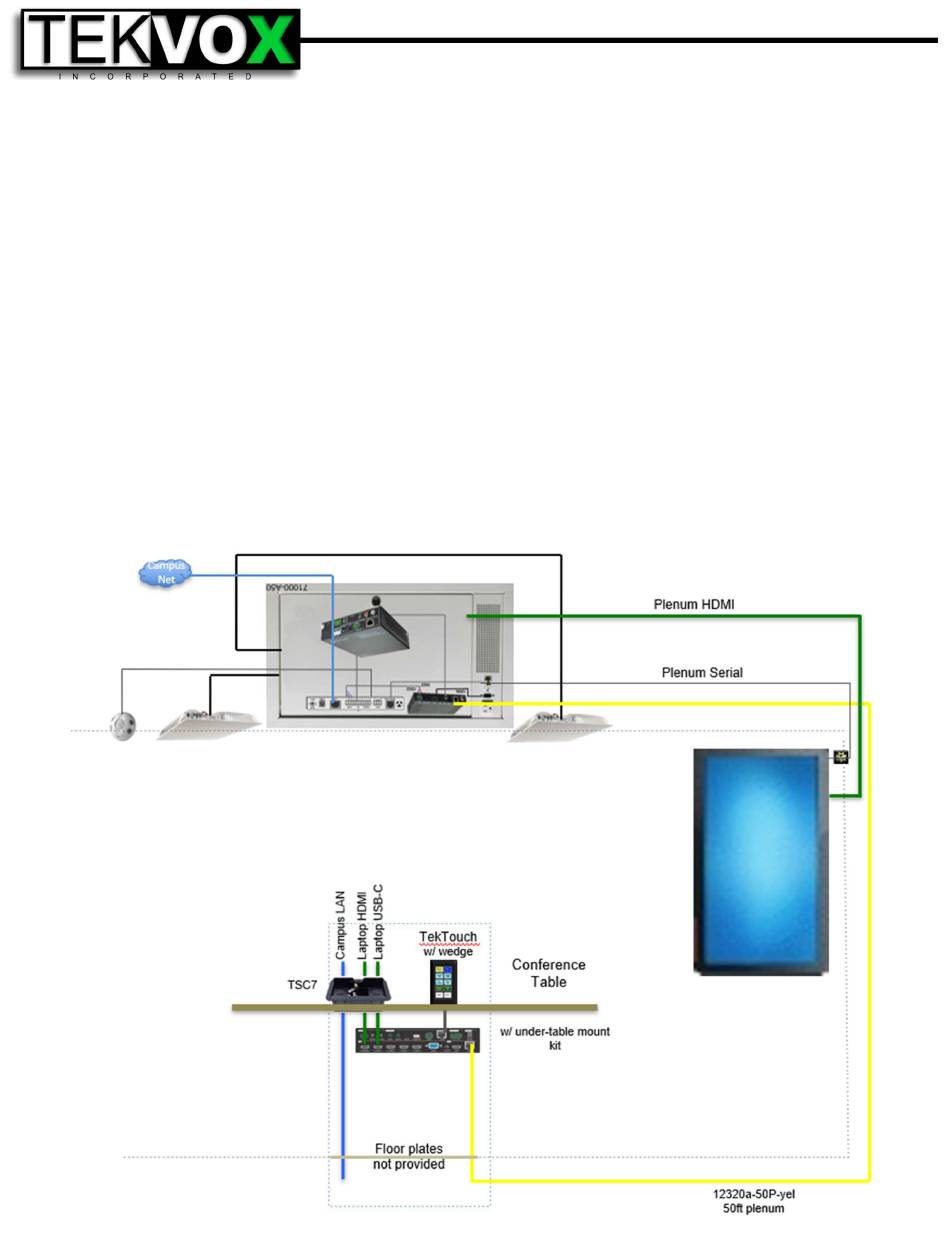

System Description

The 71021-T1 Drop-In A/V® system is a complete mediated conference room solution with remote

monitoring and control. The 71021-T1 is optimized for conference rooms with drop ceilings, small tables

and a single flat-screen display. The 71021-T1 is built around an integrated ceiling control unit and a

highly integrated seamless presentation switcher. The ceiling-mounted equipment contains an

HDBase-T receiver with audio de-embedder, a TEK 3 A/V controller, and an audio amplifier installed,

cabled and tested into a 78038 plenum-rated ceiling box. A single premium Cat 6A shielded plenum-

rated cable connects the ceiling unit to the presentation switcher. The supplied cable is certified to

exceed HDBase-T standards and is individually serialized. It is essential to follow approved installation

techniques maintain the extended warranty covering these products.

The 1201-N+ presentation switcher has 5 HDMI, and 1 VGA inputs with mirrored HDMI & HDBaseT

outputs. Control information is carried across the HDBaseT cable between the switcher and the

TekMonitor in the ceiling unit. The pre-programmed TekTouchPad provides simple and consistent room

control. All essential cabling for expeditious and consistent installation is included.

Table of Contents

Do you have a question about the 71021-T1 and is the answer not in the manual?

Page 1 The 71021-T1 is optimized for conference rooms with drop ceilings, small tables and a single flat-screen display. The 71021-T1 is built around an integrated ceiling control unit and a highly integrated seamless presentation switcher. The ceiling-mounted equipment contains an HDBase-T receiver with audio de-embedder, a TEK 3 A/V controller, and an audio amplifier installed, cabled and tested into a 78038 plenum-rated ceiling box.
Page 2 Preparation The speaker cables provided with the 71021-T1 come in a standard length of 25 ft each. Locate the ceiling box in a center position in the room that will allow the speakers to be spread evenly and of equal distance from each other in the room.
Page 3 Conference Table – Cable Housing, Switcher, Amplifier & TekTouchPad TSC7 Cable Housing Locate a position within comfortable reach from all seated positions at the conference table. Using the included cutout template, cut a hole for mounting the cable housing. Insert the cable housing into the table and attach the included mounting flanges into the highest accessible slot on each end of the underside.
