Summary of Contents for Thermal Edge NEMA 1

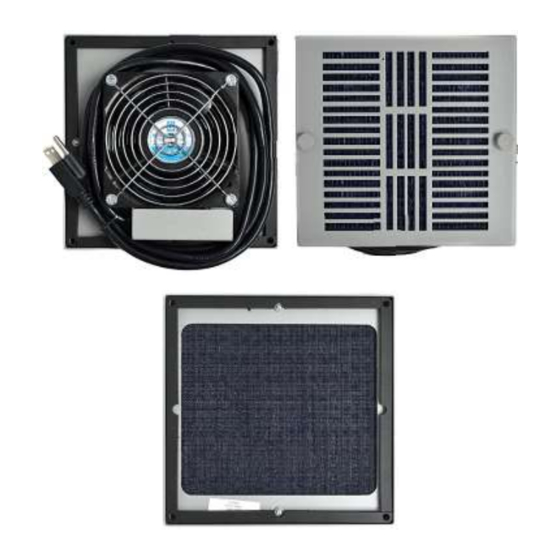

- Page 1 METAL FILTERED FAN PACKAGE INSTALLATION NEMA 1 P a g e Rev. 1...
-
Page 2: Mounting Installation
Proper Personal Protec ve Equipment is recommended during the moun ng installa on of this product. MOUNTING INSTALLATION Step 1: Using the cut-out template, locate, drill, and cut two cut-outs for the best air circula on. Note: Photos are not to scale. P a g e Rev. - Page 3 Step 2: Ensure that the Enclosure panel is cut to the size of the provided template. Properly dispose of excess sheet metal. Note: Photos are not to scale. P a g e Rev. 1...
- Page 4 Step 3: Remove the thumb screws, grill cover, and filter. Note: Photos are not to scale. P a g e Rev. 1...
- Page 5 STEP 4: Install the fan plate and opposing filter plate with screws, washers and nuts provided; Then re-install the filters, covers and thumb nuts. (Screw head should be on the outside) Outside panel looking in. Inside panel looking out. Note: Photos are not to scale. P a g e Rev.
- Page 6 Dismount To dismount the Metal Filter Fan Package, ensure that the fan is unplugged from the power source, remove the grill and filter, unscrew the moun ng screws from the Enclosure panel, and safely remove it from the cut-out. Filter: Unscrew the thumb screws, remove the grill and the filter. The filter media can be cleaned by rinsing, spraying with water, or bea ng.
- Page 7 CUT OUT DIMENSIONS 100 MFFP, Size A Note: Dimensions are not to scale. P a g e Rev. 1...
- Page 8 200 MFFP, Size B Note: Dimensions are not to scale. P a g e Rev. 1...
- Page 9 500 MFFP, Size C Note: Dimensions are not to scale. P a g e Rev. 1...
