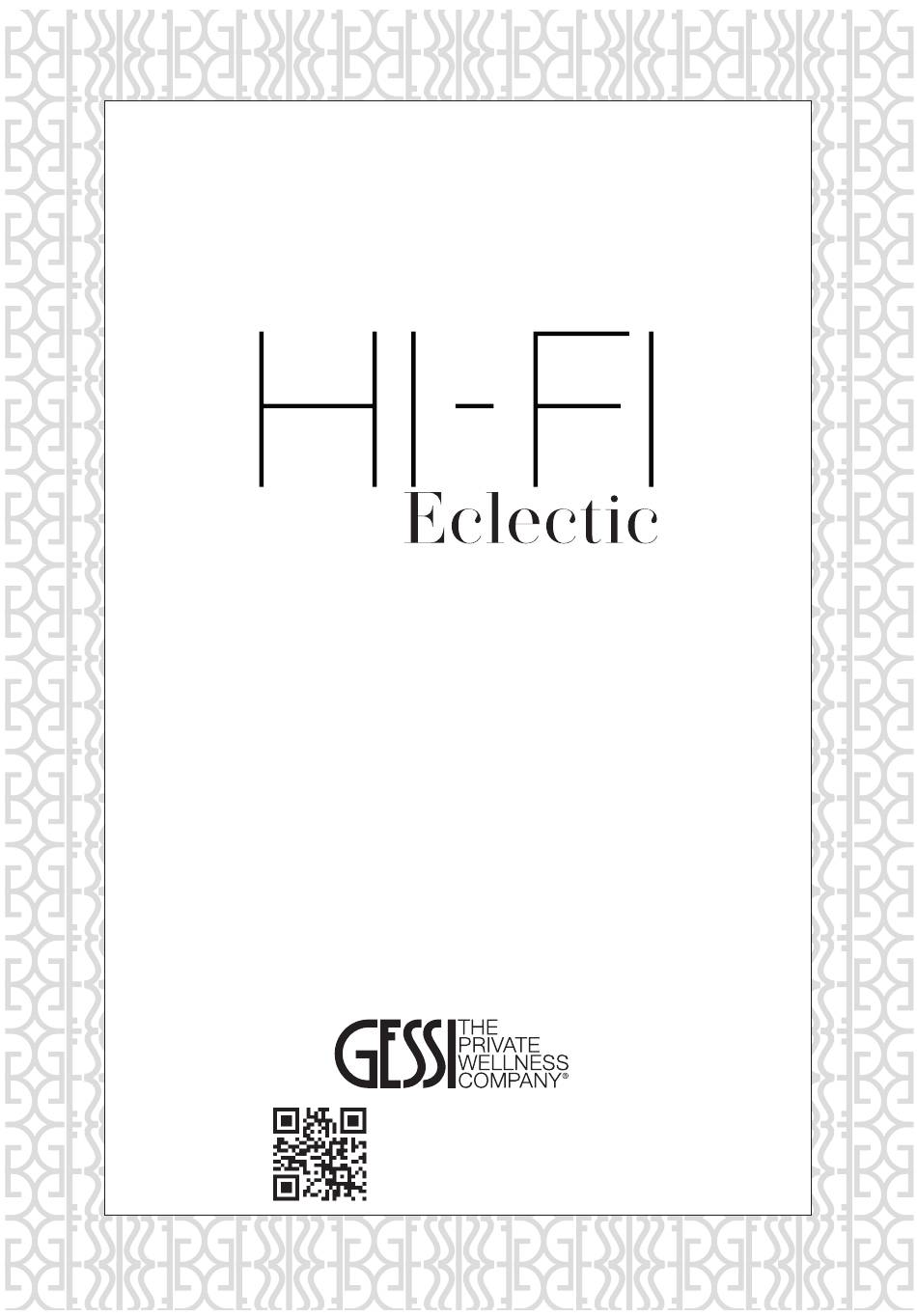

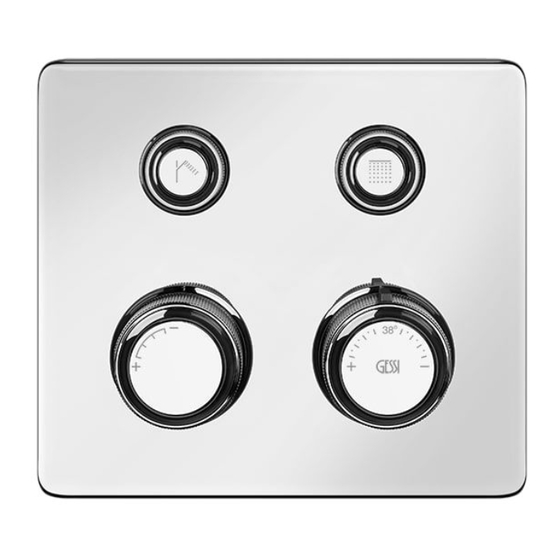

  • Page 1 BATH MIXING PROGRAM PROGRAMME DU MITIGEUR POUR LA SALLE DE BAIN PROGRAMA MEZCLADORES BAÑO Art. 65232 Art. 65234 GESSI SpA Parco Gessi - 13037 Serravalle Sesia (Vercelli) ITALY Tel. +39 0163 454111 Fax +39 0163 459273 www.gessi.com - gessi@gessi.it...

  • Page 2: Caution - Warning

    MUST NEVER BE EXCEEDED, as it may damage and/or cause ruptures and/or leakages and/or even break the product, and present a potential hazard and danger to safety, health and/or property. Following are the technical data with respect to the installation of Gessi plumbing products. ► W orkingpressureshouldnotbelowerthan0,5bar(7,25psi)andnotbehigherthan5bar(72Psi).In case of higher working pressure use a pressure reducer valve.
  • Page 3 Ci-dessous nous indiquons les données techniques concernant l’installation des produits sanitaires Gessi. ► L apressiondeservicenedoitpasêtreinférieureà0,5bar(7,25psi)etsupérieureà5bar(72Psi).En cas de pressions de service plus hautes utiliser une soupape de réduction de la pression.
  • Page 4 1 - ¡CUIDADO!! LES ROGAMOS QUE TENGAN EN CUENTA QUE NUNCA la presión y/o la temperatura máximaaconsejadaNOTIENEQUESERSUPERADA,yaquepodríadañary/ocausarrupturasy/o pérdidasy/oaveríasdelproductoy,porlotanto,representarunriesgoyunpeligropotencialpara la seguridad, la saludad y/o la propiedad. A continuación Les proporcionamos los datos técnicos relativosalainstalacióndelosproductosdegriferíaGessi. ► L apresióndeejercicionotienequeserinferiora0,5bar(7,25psi)ysuperiora5bar(72Psi).Encaso depresionesdeejerciciomayores,utilicenunaválvuladereduccióndelapresión. ►Presiónmáximadeensayodurantelainstalación:8bar(116psi). ► E vitengrandesdiferenciasdepresiónentrelaalimentacióndelaguafríayaquelladelaguacaliente. Lasdiferenciasdepresión,elaguaconunalatocontenidomineralylassustanciasjabonosaspueden...
  • Page 5 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES ART. 65232 ART. 65234...
  • Page 6 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES Before installation and setting to work Attention! The feeding pipes have to be rinsed carefully before the installation of the device so that there won’t remain shavings, sealing or hemp residues, or other impurities inside the pipes. Through pipes not thoroughly rinsed or through the general water network, in the device foreign bodies can enter that could damage gaskets /o-ring. So filters should be installed also on the general system.
  • Page 7 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES Before installation and setting to work Attention! The feeding pipes have to be rinsed thoroughly before the installation of the product, so that no shavings, welding or hemp residual or other dirt can be found in the pipes. Foreign bodies can enter the product through the rinsed pipes or the general water plant and could damage the washers/ring washers.Sofiltersshouldbeinstalledalsoonthegeneralsystem.Thewarrantydoesnotcovertheclaim onthisproductresultingfromfiltersnotbeinginstalledinthemainwatersystem....
  • Page 8 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES 11/16” [17 mm] 3/4” 1-1/8” 1/8” [19 mm] [28 mm] [2,5 mm] 13/16” 1-3/16” 1/8” [20 mm] [30 mm] [3 mm] 3/8” [10 mm] - Installation tools - Outils nécessaires pour l’installation - Herramienta necesaria para la instalación...
  • Page 9 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES...
  • Page 10 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES ART. 65232 ART. 65234...
  • Page 11 PRE-INSTALLATION INFORMATION - PRÉALABLES - PRELIMINARES Package content: A - Fastening plate B - Plate fastening screws C - Centring template D - Internal filters E-Adjustmenttemplate F - Head valve G - Prolongation kit for flow control H - Click system for flow control I-Flowrateadjustmenthandle L - Thermostatic cartridge M - Temperature control extension kit...

  • Page 12: Installation - Installation - Instalación

    INSTALLATION - INSTALLATION - INSTALACIÓN WARNING: the representation of the installation of the thermostatic mixer is based only on item with 2 outlets since it is the same for all previously mentioned products. ATTENTION: la représentation de l’installation du mitigeur thermostatique se base seulement sur l’article à...
  • Page 13 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 1 Fig. 2 1/8” [3 mm] Fig. 3...
  • Page 14 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 4 - Art. 65232 3/8” [10 mm] Fig. 4 - Art. 65234 3/8” [10 mm]...
  • Page 15 INSTALLATION - INSTALLATION - INSTALACIÓN “click” Fig. 5 Fig. 6 13/16” [20 mm] 7 Nm Fig. 7 Fig. 8...
  • Page 16 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 9 Fig. 10 Fig. 11...
  • Page 17 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 12 Fig. 13 3/8” [10 mm] Fig. 14 Fig. 15 1-3/16” 3/4” [30 mm] [19 mm]...
  • Page 18 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 16 Fig. 17 1-1/8” [28 mm] 10÷15 Nm Fig. 18 Fig. 19 11/16” 3/8” [17 mm] [10 mm]...
  • Page 19 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 20 Fig. 21 Tiled surface Surface carrelée Superficie con baldosas...
  • Page 20 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 22 Fig. 23 Fig. 24 Fig. 25 1/8” [3 mm] Fig. 26 Fig. 27 1/8” Z + 1-3/4”[44mm] [3 mm] Fig. 28 Fig. 29 1/8” [3 mm]...
  • Page 21 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 30 Fig. 31 Fig. 32 Fig. 33 CLOSE Fig. 34 Fig. 35 Fig. 36 Fig. 37 1/8” [3 mm]...
  • Page 22 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 38 Fig. 39 1/8” Z + 1-3/4”[44mm] [3 mm] Fig.40 Fig. 41 CLOSE Fig. 42 Fig. 43 1/8” [3 mm]...
  • Page 23 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 44 Fig. 45 1/8” [2,5 mm]...
  • Page 24 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 46 Fig. 47 Fig. 48 Fig. 49 1/8” [2,5 mm] 1/8” [3 mm] 0,5÷1 Nm...
  • Page 25 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 50 Fig. 51 Biadhesive Doubleadhésif Precinto doble cara Fig. 52 Fig. 53...
  • Page 26 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 54 Fig. 55 PUSH 100°F [38°C] OPEN OPEN Fig. 56 Fig. 57 100°F [38°C]...
  • Page 27 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 58 Fig. 59 PUSH 1/8” [2,5 mm] CLOSE Fig. 60 Fig. 61 1/8” [2,5 mm]...
  • Page 28 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 62 1/8” [2,5 mm] 1/8” Fig. 63 Fig. 64 [3 mm] CLOSE Fig. 65 Fig. 66 M6x40min. SCREW - Supplied Fig. 67 Fig. 68 Fig. 69 Fig. 70 1/8” 1/8” [2,5 mm] [3 mm]...
  • Page 29 WORKING - FONCTIONNEMENT - FUNCIONAMIENTO Fig. 71 Fig. 72 PUSH 100°F 122°F [38°C] [50°C] 86°F 100°F [30°C] [38°C] Fig. 73 Fig. 74 PUSH...
  • Page 30 WORKING - FONCTIONNEMENT - FUNCIONAMIENTO Fig. 75 Fig. 76 OPEN OPEN CLOSE PUSH PUSH PUSH Fig. 77 OPEN OPEN THAT IS NOT POSSIBLE PUSH PUSH...

  • Page 31: Maintenance

    MAINTENANCE - ENTRETIEN - MANUTENCIÓN MAINTENANCE • Should it be necessary to replace one or more components, contact an authorized retailerorvisitWWW.GESSI.COM • Product maintenance should be made only by qualified staff ENTRETIEN • S’il est nécessaire de remplacer un ou plusieurs composants, contacter un centre autoriséouvisiterlesiteWWW.GESSI.COM...
  • Page 32 MAINTENANCE - ENTRETIEN - MANUTENCIÓN Fig. 2 1/4” CLOSE [6 mm] Fig. 1 1/8” [2,5 mm] Fig. 3 11/16” [17 mm] 1/8” [3 mm]...
  • Page 33 MAINTENANCE - ENTRETIEN - MANUTENCIÓN Fig. 2 1/4” CLOSE [6 mm] Fig. 1 1/8” [2,5 mm] Fig. 3 1-1/8” [28 mm] 10÷15 Nm 1/8” [3 mm]...
  • Page 34 MAINTENANCE - ENTRETIEN - MANUTENCIÓN Fig. 2 1/4” CLOSE [6 mm] Fig. 1 1/8” [2,5 mm] Fig. 3 13/16” [20 mm] 7 Nm...
  • Page 35 MAINTENANCE - ENTRETIEN - MANUTENCIÓN Fig. 2 Fig. 1 1/8” [2,5 mm] CLOSE Fig. 3 Fig. 4 3/4” [19 mm]...
  • Page 36 MAINTENANCE - ENTRETIEN - MANUTENCIÓN Fig. 2 PUSH Fig. 1 CLOSE Fig. 3 Fig. 4...
