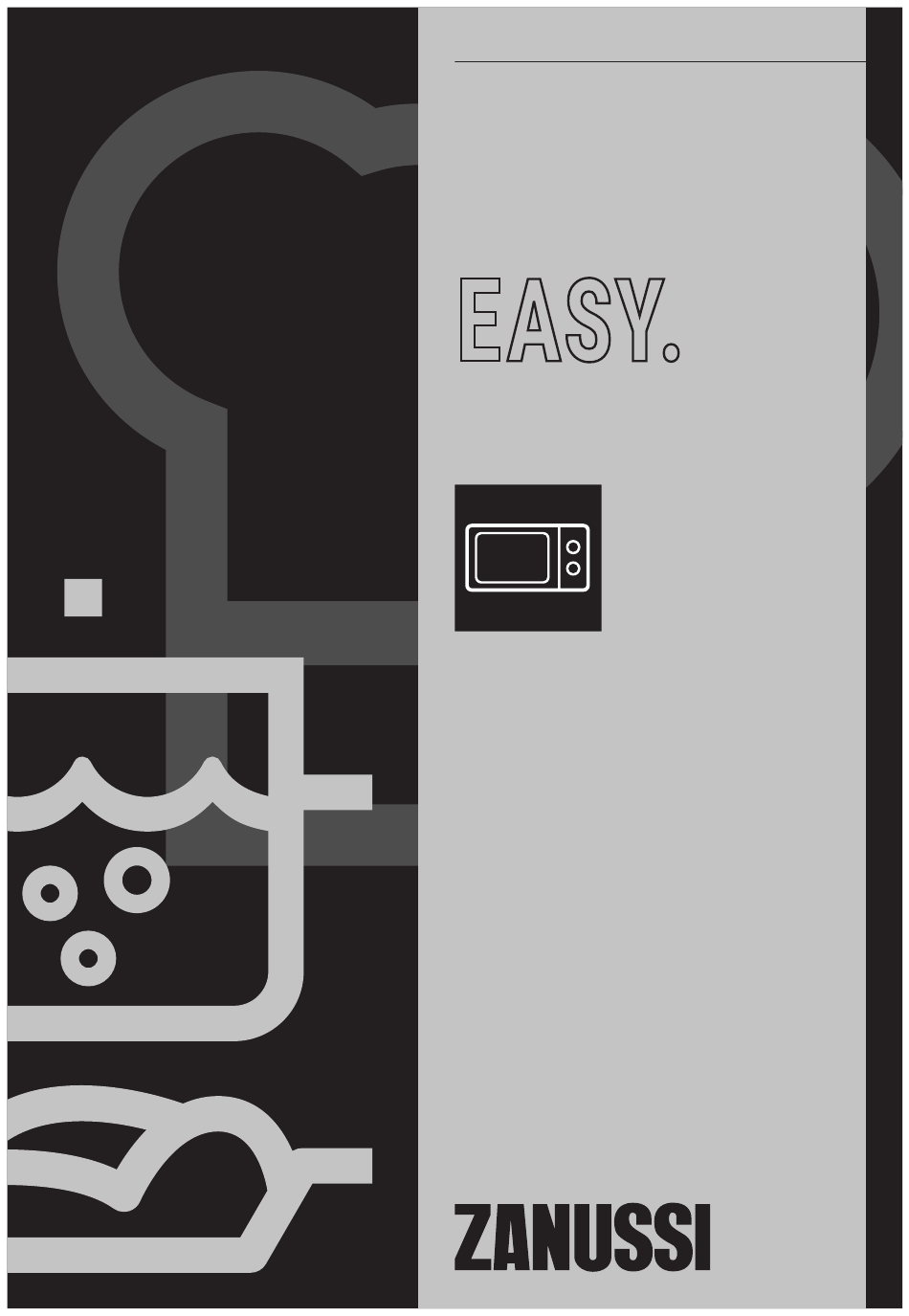

- Page 1 User Manual GETTING STARTED? EASY. ZMBN4D EN User manual Microwave Oven...
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION......................3 INSTALLATION ..........................7 PRODUCT DESCRIPTION .....................11 BEFORE FIRST USE.......................12 OPERATION..........................13 COOKING CHARTS ........................16 HINTS AND TIPS ........................22 TROUBLESHOOTING......................24 TECHNICAL INFORMATION ....................25 10. ENVIRONMENT CONCERNS ....................25... -
Page 3: Safety Information
SAFETY INFORMATION This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 other working environments; farm houses; by clients in hotels, motels and other residential environments; bed and breakfast type environments. Only use microwave-safe containers and utensils. Metallic containers for food and beverages are not allowed during microwave cooking. Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers.
- Page 5 CARE AND CLEANING Door: To remove all trace of dirt, regularly clean both sides of the door, the door seals and sealing surfaces with a soft, damp cloth. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
- Page 6 Turntable and turntable support: Remove the turntable and turntable support from the oven. Wash the turntable and turntable support in mild soapy water. Dry with a soft cloth. Both the turntable and the turntable support are dishwasher safe. Racks: This should be washed in a mild washing up liquid solution and dried.
-
Page 7: Installation
INSTALLATION The microwave can be fitted in position A or B: Niche size Position 562 x 550 x 450 562 x 500 x 450 Measurements in (mm) - Page 8 INSTALLING THE APPLIANCE 1. Remove all packaging and check carefully for any signs of damage. 2. Fit the fixing hooks to the kitchen cupboard 4 mm using the instruction sheet and template supplied. 3. Fit the appliance into the kitchen cupboard slowly, and without force.
- Page 9 CONNECTING THE APPLIANCE TO THE POWER SUPPLY • The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency. Or it should be possible to isolate the oven from the supply by incorporating a switch in the fixed wiring in accordance with the wiring rules.
- Page 10 ADDITIONAL ADVICE Do not use the microwave oven to heat oil for deep Do not use plastic containers for microwaving if the frying. The temperature cannot be controlled and oven is still hot from using the GRILL mode and the oil may catch fire. To make popcorn, only use DUAL GRILL mode because they may melt.
-
Page 11: Product Description
PRODUCT DESCRIPTION MICROWAVE OVEN Grill heating element Front trim Oven light Control panel Door open key Waveguide cover (do not remove) Oven cavity Seal Door seals and sealing surfaces ACCESSORIES Check to make sure the following accessories are provided: Turntable Turntable support High rack Low rack •... -
Page 12: Before First Use
CONTROL PANEL Digital display indicators: Power level keys Favourites keys Favourites Grill key Auto defrost key Kitchen timer Kitchen timer key Auto defrost More/Less keys Start/Confirm/ Grill Quick start key Stop key Dual grill Door open key Microwave Stop/Cancel Child safety lock Set clock Display segments Weight... -
Page 13: Operation
When the clock is set, the time of day will TO CANCEL THE CLOCK AND SET STANDBY not be shown in the display. (ECONOMY MODE) 1. Press the KITCHEN TIMER key twice. STANDBY (ECONOMY MODE) 2. Press the MORE/LESS keys until ‘oFF’ is displayed. - Page 14 POWER LEVELS Power Suggested use setting 900 W/HIGH Used for fast cooking or reheating (e.g. soup, casseroles, canned food, hot beverages, vegetables, fish). 630 W Used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as cheese sauce and sponge cakes.
- Page 15 PAUSE WARNING! Chocolate may become very hot! If the chocolate needs longer cooking time To pause whilst the microwave is running. then add 10 seconds. 1. Press the STOP key or open the door. Take care with chocolate as it may overheat 2.
-
Page 16: Cooking Charts
COOKING CHARTS FAVOURITES Favourites Weight Procedure Soften Butter 0.05-0.25 kg • Place the butter into a pyrex dish. Stir well after cooking. Melt Chocolate 0.1-0.2 kg • Break up the chocolate into small pieces. Place the chocolate into a pyrex dish. Stir when audible bell sounds. - Page 17 Method: Raspberry Ripple Mug Cake Ingredients for 1 Mug: 1. Put all of the dry ingredients into a mug, mix 2½ tbsp (25 g) Plain Flour well with a fork. 2. Add the vegetable oil, vanilla extract and egg, 2½ tbsp (30 g) Castor Sugar mix well.
- Page 18 Method: Peanut Butter Mug Cake Ingredients for 1 Mug: 1. Put all of the dry ingredients into a mug, 2½ tbsp (25 g) Plain Flour mix well with a fork. 2 tbsp (30 g) Soft Brown Sugar 2. Add the vegetable oil, vanilla extract, peanut butter, and egg mix well.
- Page 19 Method: Carrot Mug Cake Ingredients for 1 Mug: 1. Put all of the dry ingredients into a mug, mix 2 tbsp (20 g) Plain Flour well with a fork. 2. Add the sunflower oil, orange zest, grated 2½ tbsp (30 g) Light Brown Sugar carrot and egg, mix well.
- Page 20 HEATING FOOD AND DRINK Quantity Power Time Food/drink Setting Method -g/ml- Level -Min- Milk, 1 cup Micro 900 W do not cover Water, 1 cup Micro 900 W do not cover 6 cups Micro 900 W 8-10 do not cover 1 bowl 1000 Micro...
- Page 21 COOKING FROM FROZEN Standing Quantity Power Time Food Setting Method time Level -Min- -Min- Fish fillet Micro 900 W 9-11 cover One plate Micro 900 W 8-10 cover, stir after 6 minutes meal COOKING AND GRILLING Standing Quantity Power Time Food Setting Method...
-
Page 22: Hints And Tips
HINTS AND TIPS MICROWAVE SAFE COOKWARE Microwave Cookware Comments safe Aluminium foil/ 3 / 7 Small pieces of aluminium foil can be used to shield food from containers overheating. Keep foil at least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer. - Page 23 MICROWAVE COOKING ADVICE Microwave cooking advice Composition Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fire. Size For even cooking make all the pieces the same size. Temperature of The initial temperature of food affects the amount of cooking time needed.
-
Page 24: Troubleshooting
TROUBLESHOOTING Problem Check if . . . The microwave appliance is • The fuses in the fuse box are working. not working properly? • There has not been a power outage. • If the fuses continue to blow, please contact a qualified electrician. The microwave mode is not •... -
Page 25: Technical Information
800 W Microwave Frequency 2450 MHz (Group 2/Class B) Outside Dimensions: ZMBN4D 596 mm (W) x 459 mm (H) x 404 mm (D) Cavity Dimensions 342 mm (W) x 207 mm (H) x 368 mm (D) Oven Capacity 26 litres Turntable ø... - Page 28 WWW.ZANUSSI.COM/SHOP...
