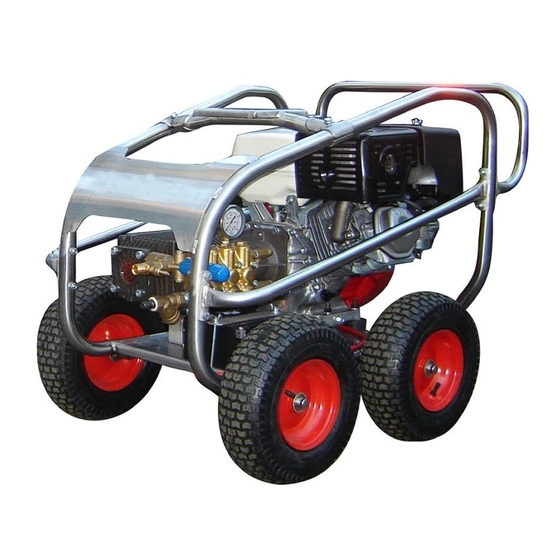

Steamaster Hurricane Pressure
OPERATION & MAINTENANCE MANUAL
Covers:
H urricane 1528E
H urricane 2130E
H urricane 2035E
Steamaster | 6 Reservoir Avenue Greenacre Sydney NSW 2190 Australia | Tel: 1300 855 677 | Tel: +61 2 9796 3433 | Fax: +61 2 9796 3395 | www.steamaster.com.au
Washers
IMPORTANT:
TO REDUCE RISK OF INJURY, READ
OPERATING INSTRUCTIONS CAREFULLY
BEFORE USING EQUIPMENT
Advertisement
Table of Contents
Summary of Contents for Steamaster Hurricane 1528E
- Page 1 TO REDUCE RISK OF INJURY, READ OPERATING INSTRUCTIONS CAREFULLY BEFORE USING EQUIPMENT Steamaster | 6 Reservoir Avenue Greenacre Sydney NSW 2190 Australia | Tel: 1300 855 677 | Tel: +61 2 9796 3433 | Fax: +61 2 9796 3395 | www.steamaster.com.au...
- Page 2 S TEAMASTER HIGH PRESSURE WASHER RISK ASSESSMENT MODELS: In line with the National Occupation Health & Safety Commission’s requirements the data below applies to the S teamaster range of high pressure washer models: Hurricane 1528E Hurricane 2130E Hurricane 2035E ...
- Page 3 POTENTIAL HAZARD: Yes/ Risk Y es/No Hazard Risk Controls Rating Entanglement with hose Personal injury of the Warning stickers (tripping, falling) operator or bystanders hose reel option Warning notice on pressure washer Injury from high pressure Personal injury of the water operator or bystanders ...
- Page 4 GUARANTEE … EXCLUSIVE 3 YEAR PUMP + 3 YEAR ENGINE WARRANTY This Steamaster product is guaranteed against faults in manufacture for 1 year from purchase. The Bertolini pump has a 1 year warranty, but must be serviced by an authorised service agent every six months to maintain this warranty. Keep your receipt as proof of purchase and all service receipts.
-
Page 5: Assembly And Preparation For Use
Assemble gun/lance assembly. HEAVY DUTY LANCE: To assemble the lance, insert Section B into Section A and screw together and check nozzles have been fitted to end of lance (C & D). Steamaster Safety Protection Kit Detergent injector Safety valve HP hose... -
Page 6: Hose Connections
Hose Connections Connect high pressure hose to machine outlet. If optional low pressure downstream, in-line chemical injector is to be used, connect the injector tube to the detergent inlet and place the other end of the tube, with the strainer attached, in the chemical con- tainer (not supplied). -
Page 7: Pressure Washing
HIGH PRESSURE SPRAY CAN PENETRATE THE SKIN AND CAUSE SERIOUS INJURY! NEVER POINT THE SPRAY GUN AT YOURSELF, OTHER PEOPLE OR ANIMALS. SHOULD SPRAY PENETRATE THE SKIN, SEEK MEDICAL ATTENTION IMMEDIATELY! Pressure washing Pressure washing WEAR PROPER FACE PROTECTION WHEN OPERATING PRESSURE WASHER! For high pressure jetting rotate side grip on dual lance backwards until it stops. -
Page 8: Care And Maintenance
Warning: check nozzles and replace if worn If pressure drops off, check nozzle for wear. Nozzles should be replaced on a regular basis (every month for machines in regular use, every 3 months for machines used intermittently) . Using the machine with the incorrect nozzle size or worn nozzle will void warranty and can be dangerous to the operator. -
Page 9: Troubleshooting Guide
TROUBLE SHOOTING GUIDE FAULT CAUSE REMEDY Pump running normally but Pump sucking air Check water supply and possibility of air pressure low on installation ingress. Valves sticking Check and clean or replace if necessary Unloader valve seat faulty Check and replace Nozzle incorrectly sized Check and replace Worn piston packing... -
Page 10: Parts Identification
PARTS IDENTIFICATION Use engine & pump model to identify your machine: Note: for diesel powered blasters just use pump model Model Engine Engine model Pump Model Pump Pressure Flow rate Pump rpm (psi) (lpm) H urricane 1528E Honda 13HP GX390 TTL1330 4000 1450... -
Page 11: Replacement Parts
REPLACEMENT PARTS Hurricane 1528E Hurricane 2130E Hurricane 2035E Position Part No Description Nozzles C915030M HP NOZZLE (15º ANGLE, TIP SIZE 30) C915045M HP NOZZLE (15º ANGLE, TIP SIZE 45) C915065M HP NOZZLE (15º ANGLE, TIP SIZE 65) C915035M HP NOZZLE (15º ANGLE, TIP SIZE 35) C915055M HP NOZZLE (15º... - Page 12 PUMP PARTS TTL1330 TTL 2030 (Hurricane 1528E & 2130E) PUMP PARTS TTL1330 TTL 2030 (Scud 400 & Ultra) Kit No. Part No. Description Pieces B069872973 Full Oil seal & Sight Glass kit B069867973 Valve Kit B069833973 Seal Kit Minor B069834973...
- Page 13 Contact S teamaster Australia Pty Ltd for your nearest agent. STEAMASTER AUSTRALIA PTY LTD 6 Reservoir Avenue, Greenacre NSW 2190 02 9796 3433 sales@steamaster.com.au www.steamaster.com.au S teamaster Hurricane … Operation & Maintenance Manual Page 1 3...
