Summary of Contents for RHOX RGBlink DXP D0108

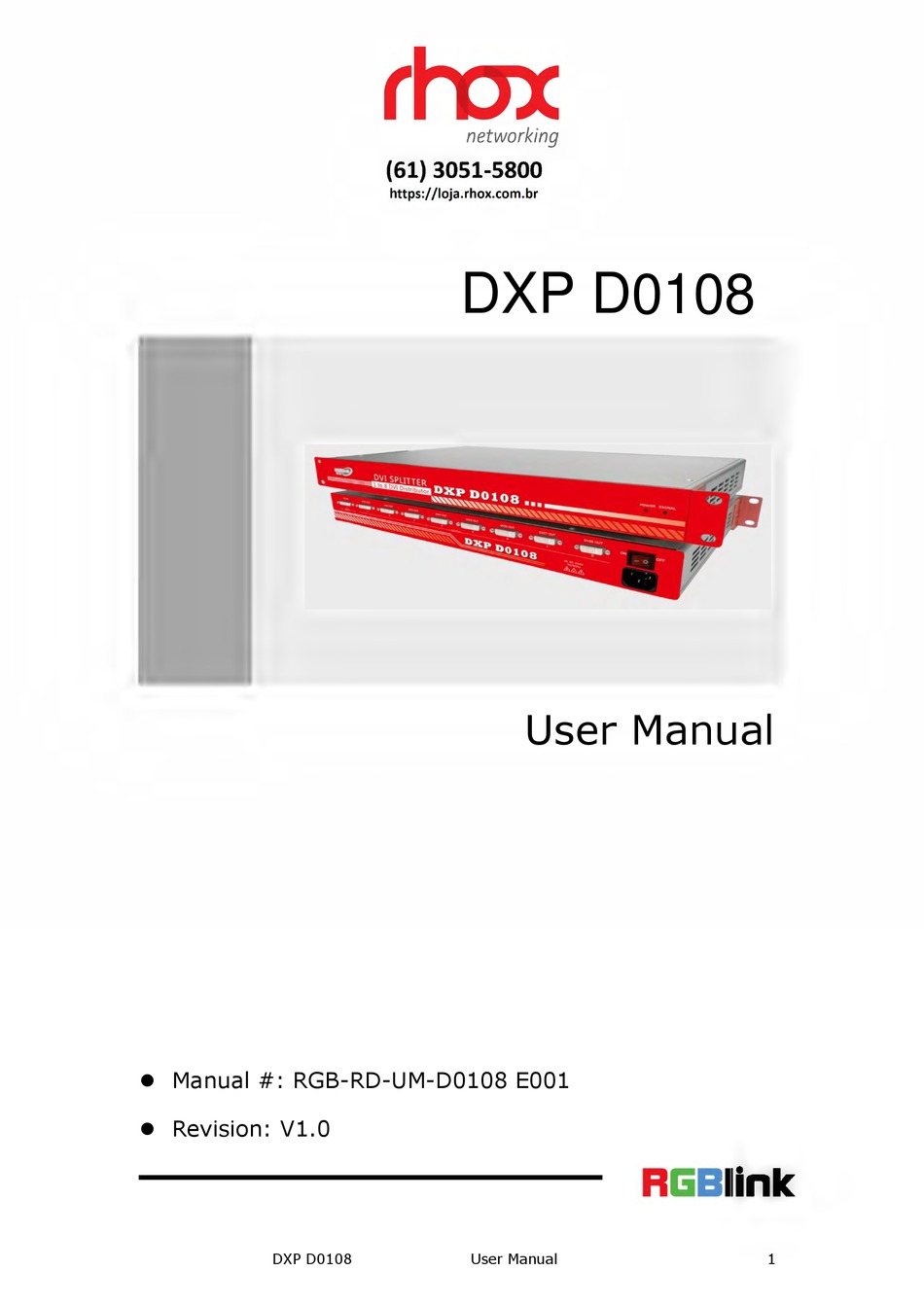

- Page 1 DXP D0108 User Manual Manual #: RGB-RD-UM-D0108 E001 Revision: V1.0 DXP D0108 User Manual...
- Page 2 DXP D0108· User Manual Thank you for choosing our products! In order to allow you to learn how to use the DVI Distributor quickly, we bring you the detailed user manual. You can read the introduction and directions before using the DVI Distributor, please read all the information we provide carefully to use our products correctly.
- Page 3 interference radio communications. Operation this equipment in a residential area may cause harmful interference, in which case the user will be responsible for correcting any interference. Guarantee and Compensation RGBlink provides a guarantee related to perfect manufacturing as part of the legally stipulated terms of guarantee. On receipt, the purchaser must immediately inspect all delivered goods for damage incurred during transportation, as well as for material and manufacturing faults.
- Page 4 Trademark Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights of their respective holders. All brand and product names mentioned in this manual serve as comments or examples and are not to be understood as advertising for the products or their manufactures. DXP D0108 User Manual...
- Page 5 Company Address Xiamen RGBlink Science & Technology Co., Ltd. S603~604 Weiye Building Torch Hi-Tech Headquarter: Industrial Development Zone Xiamen, Fujian Province, P.R.C Floor 11, A1 Building, Baiwang R&D Shenzhen office: Building, Shahe West Road, Xili Town, Nanshan District, Shenzhen, Guangdong Province, P.R.C eijing office: No.
- Page 6 Safe Operation Summary The general safety information in this summary is for operating personnel. Do Not Remove Covers or Panels There are no user-serviceable parts within the unit. Removal of the top panel will expose dangerous voltages. To avoid personal injury, do not remove the top panel.
- Page 7 voltage rating, and current rating characteristics. Refer fuse replacement to qualified service personnel. Do Not Operate in Explosive Dangerous Atmospheres To avoid explosion, do not operate this product in an explosive atmosphere. DXP D0108 User Manual...
- Page 8 Terms and Equipment Mark in This Manual WARNING Highlight an operating procedure, practice, condition, statement, etc, which, if not strictly observed, could result in injury or death of personnel. Note Highlights an essential operating procedure, condition or statement. CAUTION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 9 Amendment Record The table below lists the changes to the DVI Distributor User Manual. Format Time Description Principal ECO# 2013-04-22 0000 Release Vira DXP D0108 User Manual...
-
Page 10: Table Of Contents
CONTENT CONTENT ................... 10 Brief Introduction ..............12 Chapter Structure ................13 Manual Usage ..................14 Terms and Definitions ................. 15 System Overview ................. 21 Application Questions ................. 22 Hardware Orientation ............... 23 In This Chapter ..................23 DXP D0108 Front Panel ............... 24 1．POWER: Power on/off indicator .......... - Page 11 Unpacking and Inspection ..............27 Site Preparation .................. 27 Common Questions and Solution ..........28 In This Chapter ..................28 Power indicator light is off or blinks ............ 29 Signal indicator light is off or blinks ............. 29 Output images shake or cannot full screen display ......29 A.
-
Page 12: Brief Introduction
Brief Introduction This chapter is designed to introduce you to the DXP D0108 User Manual. It covers: Chapter Structure Manual Usage Terms and Definitions System Overview Application Questions DXP D0108 User Manual... -
Page 13: Chapter Structure
1. Brief Introduction Chapter Structure Chapter Structure The following chapters provide instructions for all aspects of DXP D0108 operations: Chapter 1 Brief Introduction Chapter 2 Hardware Orientation Chapter 3 Hardware Installation Chapter 4 Common Questions and Solution Appendix A Specification Appendix B Contact Information DXP D0108... -
Page 14: Manual Usage
1. Brief Introduction Manual Usage Manual Usage Following are important tips for streamlining your use of this User’s Guide in its electronic ―PDF‖ form. Navigation Use Acrobat Reader’s ―bookmarks‖ to navigate to the desired location. All chapter files have the same bookmark structure for instant navigation to any section. -
Page 15: Terms And Definitions
1. Brief Introduction Terms and Definitions Terms and Definitions The following terms and definitions are used throughout this guide; “ASCII”: American Standard for Information Interchange. The standard code consisting of 7-bit coded characters (8 bits including parity check) used to exchange information between data processing systems, data communication systems, and associated equipment. - Page 16 1. Brief Introduction Terms and Definitions Commercial Building Telecommunications Wiring Standard. “Color bars”: A standard test pattern of several basic colors (white, yellow, cyan, green, magenta, red, blue, and black) as a reference for system alignment and testing. In NTSC video, the most commonly used color bars are the SMPTE standard color bars.
- Page 17 1. Brief Introduction Terms and Definitions speeds starting at 10Mbps. For LAN interconnectivity, Ethernet is physical link and data link protocol reflecting the two lowest layers of the OSI Reference Model. “Frame”: In interlaced video, a frame is one complete picture. A video frame is made up of two fields, or two sets of interlaced lines.
- Page 18 1. Brief Introduction Terms and Definitions comprised of two fields of 262.5 lines each, running at an effective rate of 30 frames per second. “PAL”: Phase Alternate Line. A television standard in which the phase of the color carrier is alternated from line to line. It takes four full pictures (8 fields) for the color-to-horizontal phase relationship to return to the reference point.
- Page 19 1. Brief Introduction Terms and Definitions “Saturation”: Chroma, chroma gain. The intensity of the color, or the extent to which a given color in any image is free from white. The less white in a color, the truer the color or the greater its saturation.
- Page 20 1. Brief Introduction Terms and Definitions is to be refreshed to start a new field or frame. There are many other types of sync in video system.(Also known as ―sync signal‖ or ―sync pulse.‖) “TCP/IP”: Transmission Control Protocol/Internet Protocol. The communication protocol of the Internet.
-
Page 21: System Overview
1. Brief Introduction System Overview System Overview DXP D0108 is the DVI Distributor with high performance, high stability, high-definition. The image effect of DVI signal is excellent, no ghosting, no tail, completely achieve the desktop effects. DXP D0108 has 1 input and 8 outputs, stable performance, it can support many kinds of resolutions, also can support EDID Management. -
Page 22: Application Questions
1. Brief Introduction Application Questions Application Questions RGBlink offers solutions to demand technical problems. Any application questions, or required further information, please contact with our Customer Support Engineers. Refer to Appendix B for contact details. DXP D0108 User Manual... -
Page 23: Hardware Orientation
Hardware Orientation In This Chapter This chapter provides detailed information about the DXP D0108 panel. The following topics are discussed: DXP D0108 Front Panel DXP D0108 Rear Panel DXP D0108 User Manual... -
Page 24: Dxp D0108 Front Panel
2. Panel Instruction DXP D0108 Front Panel DXP D0108 Front Panel Front view: 1．POWER: Power on/off indicator Connect with power cable, and press the switch to "ON" position, the power indicator is turned on , and the distributor gets into work status. -
Page 25: Dxp D0108 Rear Panel
DXP D0108 Rear Panel Rear view: INTERFACE INTERFACE DVI Input Interface Switch DVI Output Interface Power IEC-3 port 1: DVI Input DVI input interface: Input the video signal from computer, DVI signal generator. Connect to the same DVI interface on DXP D0108. （This Connection does not support hot-plugging）... -
Page 26: Hardware Installation
Hardware Installation In This Chapter This chapter provides comprehensive installation instruction for DXP D0108 hardware： Following is the size of DXP D0108 for your reference. DXP D0108 User Manual... -
Page 27: Safety Precautions
Safety Precautions For all DXP D0108 distributor installation procedures, please observe the following important safety and handling rules to avoid damage to yourself and the equipment. To protect users from electric shock, ensure that the chassis connects to earth via the ground wire provided in the AC power Cord. -
Page 28: Common Questions And Solution
Common Questions and Solution In This Chapter This chapter provides the common questions and solution for the DVI Distributor. The following topics are provided: Power indicator light is off or blinks Signal indicator light is off or blinks Output images shake or cannot full screen display ... -
Page 29: Power Indicator Light Is Off Or Blinks
Power indicator light is off or blinks 1. Check whether plug in the power cord, and press the switch to "ON" position; 2. Check whether the power cable is connected, and in good connection; 3. If above without problem, then the power indicator is damaged. Signal indicator light is off or blinks 1. -
Page 30: Specification
Specification DVI Input Number of Inputs Connector Standard DVI-I socket Supported VESA： Resolution 800*600*60、 1024*768*60、 1024*768*75、 1280*720*50、 1280*720*60、 1280*768*60、 1280*800*60、 1280*1024*60、 1360*768*60、 1366*768*60、 1400*1050*60、 1440*900*60、 1600*1200*60、1680*1050*60、 1920*1080*50、1920*1080*60、 1920*1200*60、2048*1152*60、 2560*812*60、 2560*816*60 SMPTE： 480I60、576I50、720P23.98/24/25/29.97/30/50/59.94/60、 1080P23.98/24/25/29.97/30/50/59.94/60、1080I50/59.94/60 Signal Level TMDS pwl, single pixel input,165MHz bandwidth Format Standard HDMI 1.3 DVI Output... -
Page 31: Contact Information
Contact Information Warranty: All video products are designed and tested to the highest quality standard and backed by full 3 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner.
