HOT 1515N - HOT 2015N
Read carefully the present use and maintenance manual in every part
before proceeding to use. The following machine has been examined
according to the Directive Machines 2006/42, 2004/108, 2006/95 and
following changes and integrations.
USE AND
MAINTENANCE
HANDBOOK
Annovi Reverberi S.p.A
SERVICE Dept.
Via Aldo Moro, 40/42
Code XXXXX - XX
41030 Bomporto (MO) – Italy
supporth@annovireverberi.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOT 1515N and is the answer not in the manual?

Questions and answers

Summary of Contents for Annovi Reverberi HOT 1515N

  • Page 1 HOT 1515N - HOT 2015N Read carefully the present use and maintenance manual in every part before proceeding to use. The following machine has been examined according to the Directive Machines 2006/42, 2004/108, 2006/95 and following changes and integrations. USE AND...
  • Page 2: General Instructions

    The users, the qualified individuals must know the contents of this manual. In case of troubles, doubts as to understand this manual, please contact the Company ANNOVI REVERBERI S.p.A. - Via Aldo Moro, 40/42 - 41030 Bomporto (MO) Italy, supporth@annovireverberi.it.
  • Page 3: Machine Identification

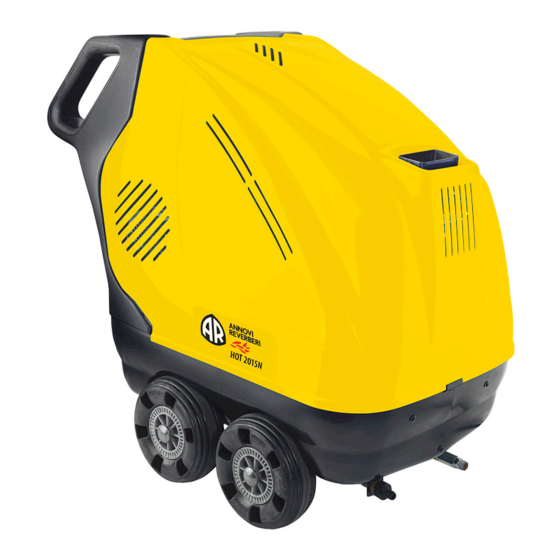

    Annovi Reverberi HOT 1515N – HOT 2015N The machine has been designed to clean or wash, with hot or cold water, objects or surfaces which can stand the mechanical treatment of the water jet under high pressure and by the action of the chemicals products (detergents).
  • Page 4: Technical Features

    Annovi Reverberi HOT 1515N – HOT 2015N TECHNICAL FEATURES MODEL HOT 1515N HOT 2015N Pressure P.S.I. 2200 2900 (OUTPUT) Power (INPUT) 1450 1450 400-50Hz 400-50Hz Voltage V/Hz Max capacity Gal/h °C Temperature °∆
T Fuel Liters tank Detergent Liters tank Dimensions...
  • Page 5: Main Parts

    Annovi Reverberi HOT 1515N – HOT 2015N MAIN PARTS Fig.3 LANCE HIGH PRESSURE HOSE ELECTRIC CABLE ELECTRIC MOTOR BOILER ELECTRIC SYSTEM DETERGENT TANK FUEL TANK TRANSFORMER 10 FUEL FILTER 11 HIGH PRESSURE PUMP 12 PRESSURE VALVE 13 COMBUSTION HEAD 14 PRESSURE SWITCH...
  • Page 6: Safety Regulations

    Annovi Reverberi HOT 1515N – HOT 2015N SAFETY REGULATIONS Make sure that the machine is constantly supplied with water. Dry working • would cause serious damages to the machine seal system. Electrical connections must be carried out by skilled/trained personnel only.
  • Page 7: Machine Installation

    Annovi Reverberi HOT 1515N – HOT 2015N It is forbidden to use plug extensions if the work enviroment is subject to • water/humidity presence which could cut the isolating conditions of the system. Always check the isolation of the electric cable as well as the equipment’s integrity.
  • Page 8: Machine Start-Up

    Annovi Reverberi HOT 1515N – HOT 2015N Fig.5 Fill the fuel tank F (see fig. 6) with gasoil (Diesel). Fill the detergent tank G (see fig. 6) with a biodegradable product. Fig.6 Make sure that the electrical tension and amperage are suitable for the machine. The cleaner must be connected to a suitable feeding point equipped with an efficient contact to earth and controlled by an overload cut out switch.
  • Page 9: Regulation Of The Operating Pressure

    Annovi Reverberi HOT 1515N – HOT 2015N The control panel has been designed to run the operations easily. The knob A has three main functions: The second position The third position OFF indicates that the Pos.1 Pos.2 indicates that the Pos.3...
  • Page 10: Standard Equipment

    10 m high pressure hose and a nozzle suitable for the model you have purchased. OPTIONALS ANNOVI REVERBERI supplies a rotary jet nozzle on request which allows to remove the hardest dirt from any surfaces you want to clean and wash. DETERGENTS It is advisable to use detergents with liquid base and not with dusts.
  • Page 11 Annovi Reverberi HOT 1515N – HOT 2015N GENERAL ON-OFF SWITCH PRESSURE SWITCH 15 BAR THERMAL PROTECTOR PRESSURE SWITCH 40 BAR FUEL LEVEL SENSOR FLAME SENSOR (if provided) BURNER TRASFORMER FUEL ELECTROVALVE THERMOSTAT PUMP MOTOR ELECTRONIC PRINT BOARD BURNER MOTOR MICROLEAKAGES ACUSTIC ALARM...
  • Page 12: Hydraulic System

    Annovi Reverberi HOT 1515N – HOT 2015N GENERAL ON-OFF SWITCH PRESSURE SWITCH 15 BAR THERMAL PROTECTOR PRESSURE SWITCH 40 BAR FUEL LEVEL SENSOR FLAME SENSOR (if provided) BURNER TRASFORMER FUEL ELECTROVALVE THERMOSTAT PUMP MOTOR ELECTRONIC PRINT BOARD BURNER MOTOR BUZZER MICROLEAKAGES ACUSTIC ALARM...
  • Page 13 Annovi Reverberi HOT 1515N – HOT 2015N SYSTEM DESCRIPTION 1 – Water intake pipe 12 – Detergent ejector 2 – Udjustable pressure valve 13 – Detergent filter 3 – Intake pipe to boiler 14 – Fuel intake pipe 4 – Boiler 15 –...
  • Page 14: Maintenance

    Annovi Reverberi HOT 1515N – HOT 2015N 7830 / 7850 / 7870 5 – Warning! Do not direct the high pressure jet 1 – Lance delivery towards people, animals or objects 2 – Water feeeding 6 – Warning! Gases at high temperature - outlet 3 –...
  • Page 15 Annovi Reverberi HOT 1515N – HOT 2015N WARNING ! • All the fixing and maintenance operations must be carried out by authorized personnel. • All maintenance operations must be carried out keeping the machine on an even floor. The machine must be disconnected from the main power and from the water supply.
  • Page 16: Cooling Coil Internal Cleaning

    Annovi Reverberi HOT 1515N – HOT 2015N screw pos. E, remove the glow plug, adjust the distance to achieve the 3 mm distance. Reassemble the glow plug while checking it is fixed correctly. Place the combustion back in place using the three screws pos. A.
  • Page 17: Warranty

    Annovi Reverberi HOT 1515N – HOT 2015N WARRANTY For as much as the machine’s warranty is concerned apply to WARRANTY CONDITIONS and WARRANTY CERTIFICATE given with the machine. DRAWBACKS, CAUSES AND SOLUTIONS USE AND MAINTENANCE HANDBOOK page 17...
  • Page 18: Declaration Of Conformity

    Annovi Reverberi HOT 1515N – HOT 2015N PROBLEM POSSIBLE CAUSES SOLUTION Dirty water filter Clean or replace WATER DOES Blocked infeed valves Check NOT COME OUT Clogged lance nozzle Clean The detergent valve is open Check and takes in air...
  • Page 19 Annovi Reverberi HOT 1515N – HOT 2015N DECLARATION OF CONFORMITY Declares taking full responsibility that the product is in accordance with the following regulations and relative documents EN 60335-1 - EN 60335-2-79; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3; EN 61000-3-11; EN 60704-1...
  • Page 20 Annovi Reverberi HOT 1515N – HOT 2015N VIA ALDO MORO, 40/42 41030 BOMPORTO (MO) ITALY supporth@annovireverberi.it USE AND MAINTENANCE HANDBOOK page 20...
