MirrorVue RM150 - Installation Manual
RM150

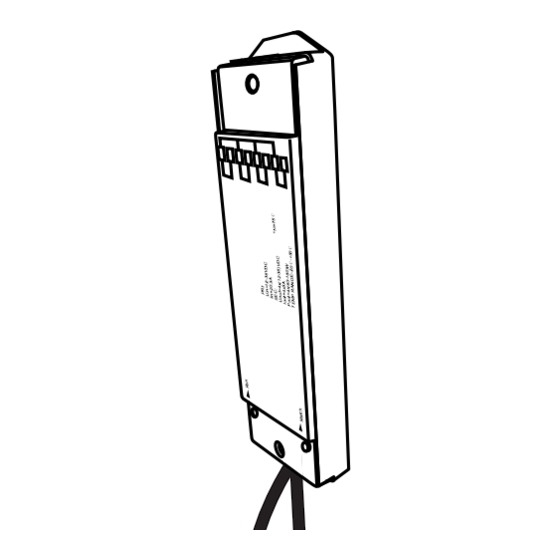

Receiver

Check the items after receiving.

1
Before installing, check to ensure that you have received
all the package contents.

Match the Remote and the Receiver.

4
Press the match button on the receiver. The circle above
the word run will start blinking red. Once that light is
steady, then the receiver has found the remote.
A blue light will also flash on top of the remote to
indicate that it's ready to use.
Information is subject to change without prior notification.
© Copyright. Evervue USA Inc.
www.mirrorvue.com
Remote
Holder

Connect the Receiver and the Mirror.

2
Take the end of the receiver with the male plug and
connect it with the female plug of the mirror
Finished.
5
Your remote is connected and ready to use.
Female Male
Please take note of the
difference between the male
and female plugs.

Connect the Receiver and the Power Supply

3
Take the female end of the receiver and connect it with
the male plug of the power supply. Then plug the
power supply to the power source.
