SATO 8861-90 Instruction Manual

Pt Sensor Connector Box for SK-L753 Datalogger
Thank you for purchasing Pt Sensor Connector Box.
As this product is designed to connect the Datalogger Model SK-L753 Pt Sensor Temperature
Measurement Type and general 4-wire Pt sensor probes, do not use it for other purposes.
Read this manual and the manual for the Datalogger's main unit together thoroughly before
use and keep it in a safe place for future reference.

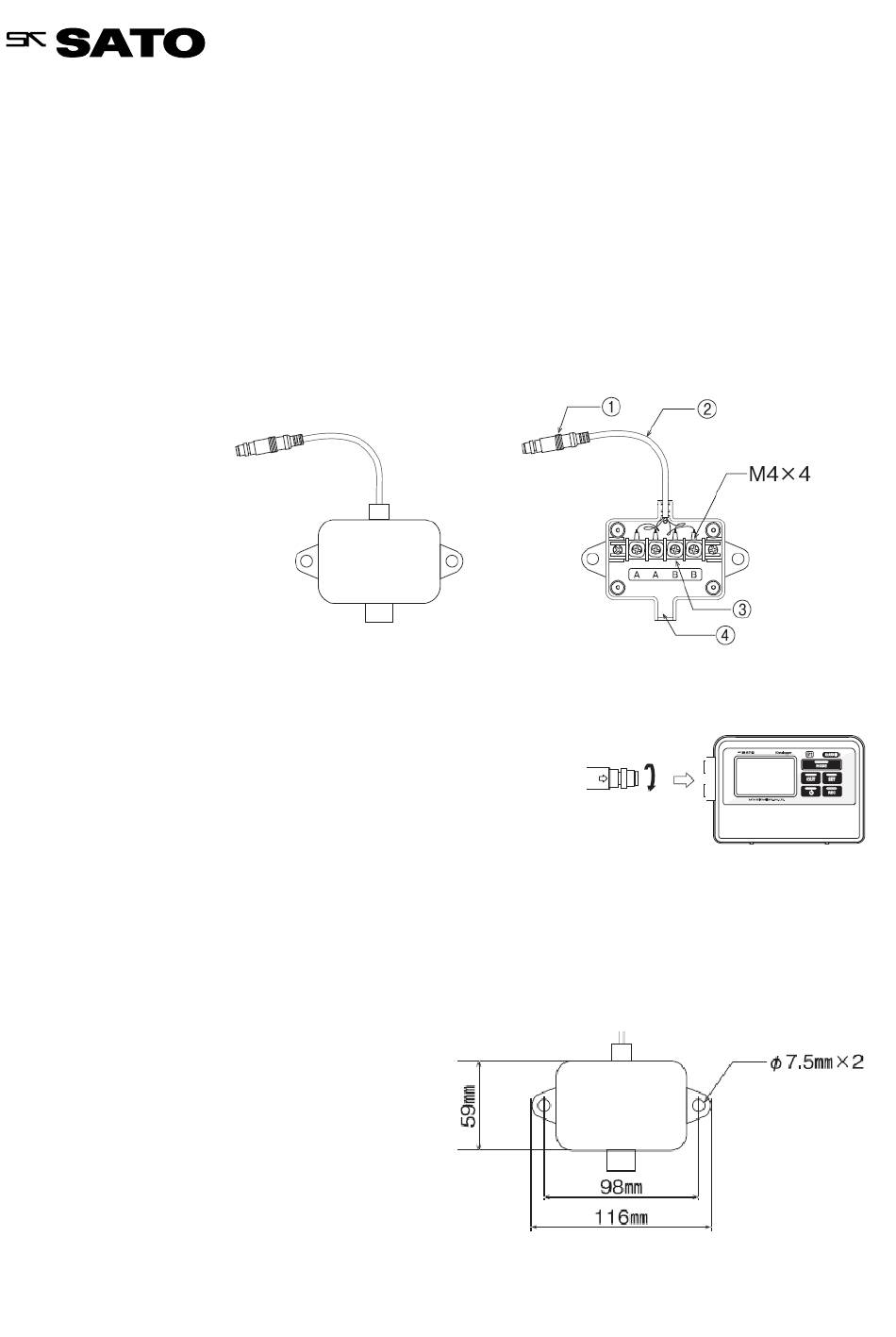

Names of Parts

Connector to main unit
①
Sensor cord
②
Terminal block
③
Sensor insertion point
④

How to Connect

Loosen the screw on the connector box to open its lid, and screw the Pt sensor to the terminal
block inside referring to the carved alphabet. After then
close the lid so as not to nip the cords. Next, insert
into the connector part on the Datalogger's main unit in a
correct direction, and tighten the nut firmly.
Note: Use CH1 on the Datalogger first before CH2. If the connector box is connected to CH2
when CH1 is empty, temperature is measured but not logged.
Note: 4-wire Pt Sensor Probes are sold separately.

How to Install

Fix the box on a wall or a flat surface with two
screws with a diameter smaller than 7.5 mm.
Using a spacer is advised if needed to hold
the box tightly.
Instruction Manual
(Pt Sensor Temperature Measurement Type)
above
①
