StarMax MAX-3 Setup & Operation

Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

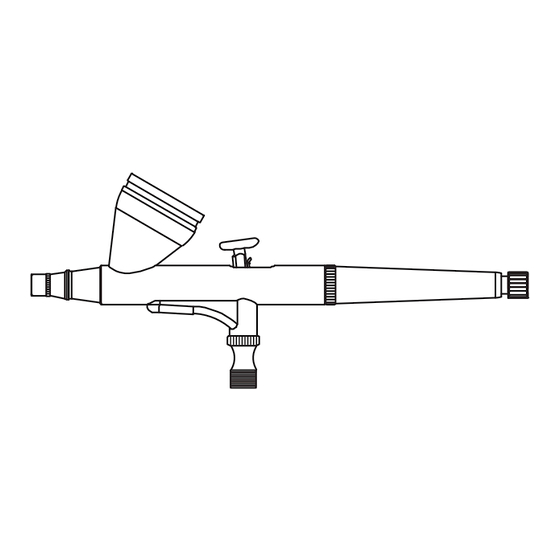

MAX-3

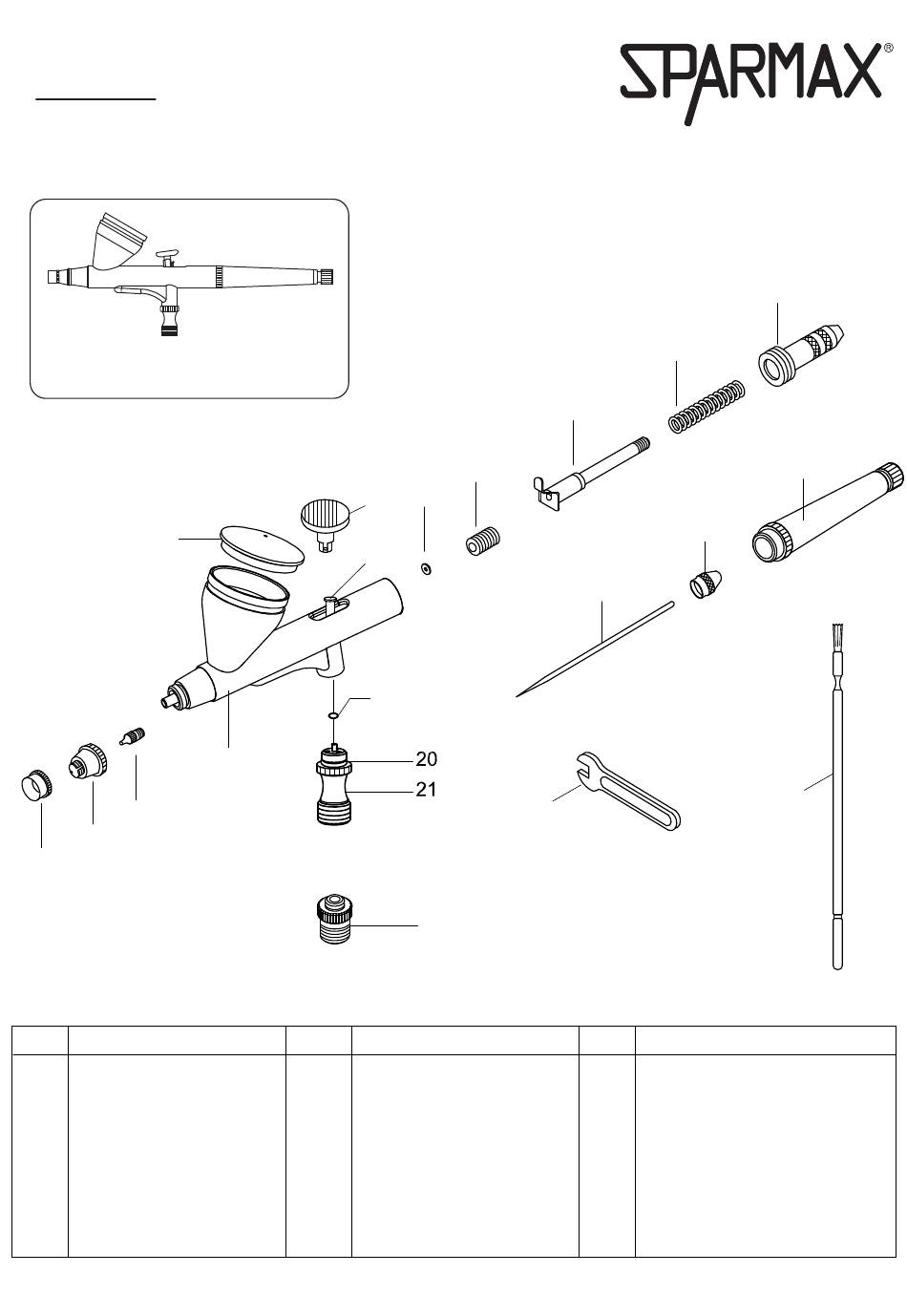

Airbrush Parts
MAX-3: 0.3mm nozzle
17
3
2
1
INDEX
DESCRIPTION
1
Needle cap
2
Nozzle cap
3
Nozzle
4
Body
5
Piston
6
Push button
8
O-ring for needle guide
6
5
19
4
INDEX
9
Needle guide
11
Needle chucking guide
12
Spring
13
Spring case
14
Brush
17
7cc cup cover
19
Piston o-ring
11
9
8
24
21-1
DESCRIPTION
INDEX
www.SPARMAXair.com
12
26
25
DESCRIPTION
20
Air valve o-ring
21
Air valve
21-1
Extra single action air valve set
24
Wrench
25
Needle
26
Needle chucking nut
27
Handle
13
27
14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for StarMax MAX-3

  • Page 1 MAX-3 www.SPARMAXair.com Airbrush Parts MAX-3: 0.3mm nozzle 21-1 INDEX DESCRIPTION INDEX DESCRIPTION INDEX DESCRIPTION Needle cap Needle guide Air valve o-ring Nozzle cap Needle chucking guide Air valve Nozzle Spring 21-1 Extra single action air valve set Body Spring case...

  • Page 2: Setup And Operation

    WARNING: DO NOT remove the nozzle. CAUTION: DO NOT allow paints to sit idle in the cup. CAUTION: Use ONLY airbrush paints and proper airbrush cleaner/thinner. SET UP & OPERATION 1. Connect 1/8” PS end of hose to the airbrush, the other end to the compressor. 2.

  • Page 3: Troubleshooting

    TROUBLE SHOOTING 1. Spidering: 1) Paint too thin -> add paint. 2) Pressure too high -> reduce pressure. 3) Too much paint -> pull back push button less or move airbrush further away from surface. 2. Intermittent spray: 1) Clog within airbrush -> clean airbrush thoroughly. 2) Paint too thick ->...

  • Page 4: Suggested Accessories

    SUGGESTED ACCESSORIES 1. Dual head airbrush tool Replace nozzle with this tool to eliminate overtightening during assembly which damage the nozzle. Include additional function of converting dual action air valve into single action. 2. Cleaning pot Handy tool for airbrush cleaning without creating a mess in the air. Also include airbrush holder and plastic container for protection which can store small items later on.
  • Page 5 TIPS & EXERCISES Basic tips for airbrushing: 1. Always start and end with air only. Adjust the pressure if necessary. 2. With air on, start moving your airbrush, then pull back the push button for color. End by reversing the process, returning the push button to its starting position, but keep air on and continue moving your airbrush.
