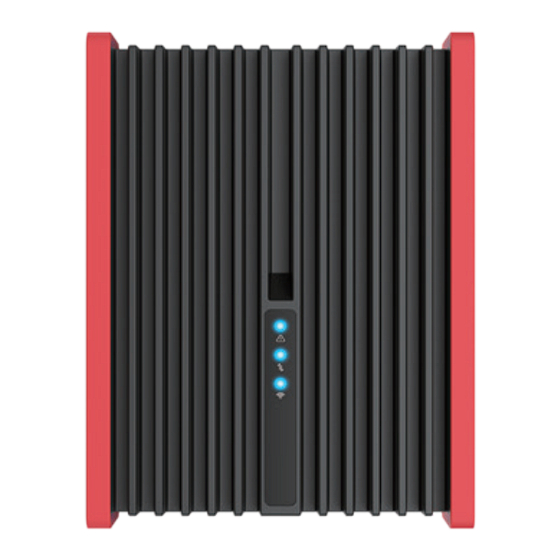

- Page 1 User Manual Travel 3.0 Car （C30G-5S-BTW) Travel 3.0 RV （C30G-5S-BTW.RV) Travel 3.0 Truck （C30G-5S-BTW.TRUCK) FOR VEHICLE Boost Your Bars and Keep You Connected to the World (972) 870-5666 (M-F from 9 am - 5 pm CST)
-
Page 2: Table Of Contents
CONTENTS Package Content Authorized Accessories List Introduction Pre-Installation Instructions LED Indicator Lights App Assisted Installation Troubleshooting Guide Technical Specifications FCC and IC Statements Return and Warranty Policies... -
Page 3: Package Content
Package Content Travel 3.0 Car Booster Outside Magnetic Antenna Inside Panel Antenna DC Power Supply Other Accessories to fix the booster and antenna... - Page 4 Package Content Travel 3.0 RV Booster Outside Omni-Directional Antenna Inside Magnetic Antenna Outside 26ft Cable 15.74in pole *2,Side-Exit Adapter,Spring, Mounting Accessories Power Supply DC Power Supply Other Accessories to fix the booster and inside antenna...
- Page 5 15.74in pole *2,Side-Exit Other Accessories to fix the booster Adapter,Spring, and inside antenna Mounting Accessories Note: Available accessories can be purchased through HiBoost.com Warning: Un-authorized antennas, cables, and/or coupling devices are prohibited by new FCC rules, Please contact FCC for details: 1(888)-CALL-FCC.
-
Page 6: Authorized Accessories List
HiBoost cell booster's exclusive cloud-based Signal Supervisor mobile application and LED indicator allows users to monitor the live status of HiBoost cell phone signal boosters directly from the LED indicator or remotely from a mobile device anywhere at any time. -
Page 7: Pre-Installation Instructions
We strongly recommend you to read the user guide completely before installation. The vehicle booster provides app assisted installation, which is a unique method provided by HiBoost. For more precautions and details to install and use, please follow the Signal Supervisor app. - Page 8 Then why has HiBoost spent extra big efforts and costs to design app signal meter and LED light indicator to help you install? Out of many reasons, the most important one is that we would like you to get maximum gain from the vehicle booster, as it is most crucial for you to still get the signals even in quite remote areas, like in mountains or forests.
- Page 9 Before we start any of the two ways, please allow us to spend 4 pages to make you understand how the vehicle booster system works for you. ※ Please do spend sometime to read it fully, as it is crucial to get the best performance. How HiBoost booster works Travel 3.0 Car 1.Outside antenna receives 2.The booster amplifies the signal...
- Page 10 Travel 3.0 RV 1.Outside antenna receives signal from nearby cell tower and sends it to the booster 2.The booster amplifies 3.Inside antenna broadcasts and sends it to inside it in the vehicle antenna Outside Antenna Booster Power Supply Inside Antenna Travel 3.0 Truck 2.The booster amplifies and sends it to inside antenna...
- Page 11 Working Principle in Formula Outside Outside Outside Booster Inside Inside System Signal Antenna Gain Cable Loss Gain Cable Loss Antenna Gain Output Power Out of the Formula: Outside Signal: To be received by outside antenna from cell tower Outside Antenna Gain: The gain of the outside antenna Outside Cable Loss: The loss of the outside cable...
- Page 12 More notes on how to keep the maximum booster gain The principle is that we need to avoid oscillation between outside and inside antennas as it reduces the gain. Measures can be taken to avoid oscillation: 1) Increase the distance between outside and inside antennas, generally the same vertical distance generates more loss than horizontal distance.
-
Page 13: Led Indicator Lights
LED Indicator Lights Alarm Bluetooth Wi-Fi LED STATUS INDICATORS solid blue normal solid red excessive low input voltage ALARM slow flashing blue slight oscillation booster automatically shut off due to strong quick flashing red oscillation solid blue bluetooth disconnected Bluetooth LED slow flashing blue bluetooth connected solid blue... -
Page 14: App Assisted Installation
App Assisted Installation oscillation Flow Chart of App Assisted Installation Install the booster Download 3rd party apps Select the installation site and antennas Final test in various Signal quality test locations and enjoy the mobile services Step 1: Download the 3rd party apps We are going to use 3rd party app: To find a suitable site to install the booster To test the signal strength and quality... - Page 15 Step 2: Select the installation site Drive to a place with outside signal below -85dBm. Here the 3rd party app “Network Cell Info Lite” is taken as an example. Android users can use it to test the site, so as to make sure the signal strength is about less than -85dBm. IOS users please choose Opensignal or Cell mapper.
- Page 16 You can also use “Network Cell Info Lite” to measure the signal strength before & after install. The good point of Network Cell Info Lite is that you can see the signal levels. Network Cell Info Lite The signal strength requested by the booster system is as below. EXCELLENT GOOD FAIR...
- Page 17 Step 3: Install the booster and antennas Travel 3.0 Car Assemble and Mount the Outside Antenna 1.1 Determine where you would like to set up the outside antenna Usually, the outside antenna is mounted to the roof of the car near the back.
- Page 18 Download the Signal Supervisor App, register ID and booster. Register an ID rst and log in. Add the booster to the device list. Use the Signal Supervisor to help installation The booster will work at best if the gain reaches 50dB. But if you can’t get so, at least ensure the gain on the gauges reaches 46~50dB.
- Page 19 Travel 3.0 RV Assemble and Mount the Outside Antenna 1.1 Determine where you would like to set up the outside antenna Usually, the outside antenna is mounted to a ladder at the top of the vehicle vertically and as high as possible so that it can get a good signal.
- Page 20 Connect the DC Power Supply to the Booster. Use power supply or DC power supply. Place Inside Antenna & Connect the Cable Place the inside antenna horizontally on a desk or a countertop in the area where you would like to cover signal and connect it to the booster. Download the Signal Supervisor App, register ID and booster.
- Page 21 Travel 3.0 Truck Assemble and Mount the Outside Antenna 1.1 Determine where you would like to set up the outside antenna Usually, the outside antenna is mounted to a rearview mirror. It would be great if you could set it as high as possible. Note: Please make sure the outside antenna stay below the height limit allowed by law.
- Page 22 Place Inside Antenna & Connect the Cable Please place the inside antenna on the dash or the side of driver's seat. Download the Signal Supervisor App, register ID and booster. Register an ID rst and log in. Add the booster to the device list. Use the Signal Supervisor to help install The booster will work at best if the gain reaches 50dB.
- Page 23 Step 4: Signal quality test After reaching the MAX possible gain (50dB or as close to 50dB as possible), fix the outside & inside antennas, and then use the mobile phone to test the effect of phone call and browse the web page or video in the vehicle by 3rd party app Network Cell Info Lite &...
- Page 24 Step 5: Drive the vehicle to other places to see how it works Drive the vehicle to various weak areas to test the performance. Drive the vehicle to various strong areas to test the performance. Warm Tips If the vehicle is driving to quite remote places where the signal outside is particularly weak and the mobile phone cannot be used, the inside antenna can cling closely to the back of the mobile phone, so that a certain signal can be obtained.
-
Page 25: Troubleshooting Guide
The APP may push an alarm notice when the alarm light indicates solid blue, you do not need to adjust anything at this time, for this may be a result of excessive strong signal. If there are any issues while installing a HiBoost cell phone signal booster, please contact the technical support team through the following channels: Online Support: Create a ticket or chat via Signal Supervisor app (972) 870-5666 (M-F from 9 am –... -
Page 26: Technical Specifications
Technical Speci cations RF Parameter Uplink Downlink 698-716MHz 728-746MHz LTE(A+B) 776-787MHz 746-757MHz LTE(C) CDMA 824-849MHz 869-894MHz Frequency Range 1850-1915MHz 1930-1995MHz 1710-1755MHz 2110-2155MHz Max. Gain 50dB Max. Power UL 22 dBm DL 0 dBm Electrical Parameter Power Supply Input DC12-24V, Output DC12V-24V/3A Input AC100-240V/1.5A, Output DC12V/3A Input Impedance Mechanical Parameter... -
Page 27: Fcc And Ic Statements
• Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by HiBoost could void the user’s authority to operate the equipment. For a complete list of antennas and cables approved for use... - Page 28 Minimum separation distances for MSCL calculation or measurementsÿ : 30cm FURTHER INFORMATION ON SIGNAL BOOSTER END-USE REGISTRATION The following links are the currently active contacts for booster registration with U.S. wireless providers: https://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp https://ww- w.sprint.com/legal/fcc_boosters.html https://www.verizonwireless.com/solutions-and-services/acce- sories/register-signal-booster/ https://support.t-mobile.com/docs/DOC-9827 https://se- curec45.securewebsession.com/attsignalbooster.com/ ISEDC Statement: This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s).
- Page 29 This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network.If you are unsure, contact your provider.
-
Page 30: Return And Warranty Policies
Returned Material Authorization (RMA) number supplied by us. RMA numbers may be obtained by contacting customer support at 972-870- 5666 or support @hiboost.com This warranty does not apply to any signal boosters or kits determined by us to have been subjected to tampering, misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties. - Page 32 3150 Premier Drive,Suite 130, Irving, TX 75063 (972) 870-5666 service@hiboost.com www.hiboost.com...
