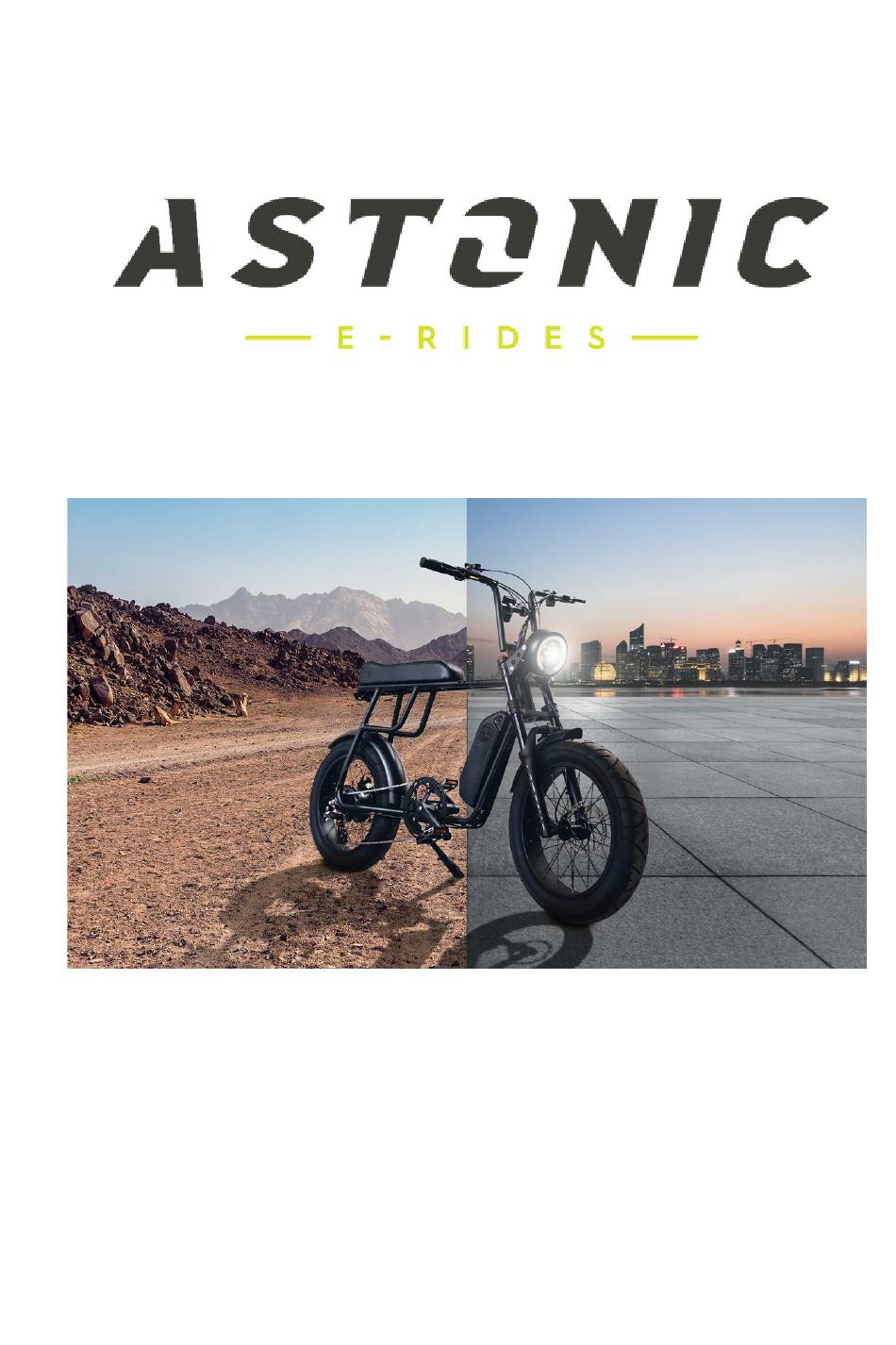

- Page 1 ASTONIC BIKES B.V. Spijkse Kweldijk 104a 4211CX Spijk Kvk80685390 info@astonic-rides.nl 0183201043...
- Page 2 Manual Please read this manual carefully before using the Astonic e-ride to become fully familiar with the proper operation of your bicycle's controls, features, capabilities and limitations. This manual contains safe cycling tips, but does not cover all the techniques and skills required to safely ride an electric bicycle.
- Page 3 PARTS 1. seat 11. gears 2. controller 12. brake handle 3. rear wheel 13. gear shifter 4. rear disc brake 14. handlebars 5. freewheel 15. front suspension* 6. motor 16. front wheel 7. chain 17. front disc brake 8. crank arm 18.
- Page 4 Product specifications Model: Astonic Earth Motor: in rear axle Rims: Astonic Breeze Bafang G060.250 20 inch Double-walled Suspension Power: front fork spokes 250 watt Top speed: Display: Max load: 25 km/h 145 kg 860C Tires: aluminum Hydraulic disc brakes Innova 20*4.0 / frame 4.25...
- Page 5 Display Battery indicator Clock Braking indicatort Lights on/off Motor level Speedometer Current speed Power indicator Maintenance required Distance travelled Logo / errort Clock: 24 hours Lighting indicator: rear light on/off. Speedometer: power indicator Power indicator: current consumption in Watts Distance travelled: total km travelled Battery indicator: shows the status of the battery Brake indicator: lights up when using the brake Motor level: selected motor support level...
- Page 6 Controls plus on / off minus menu • Press and hold the on/off button to switch the display on or off. The display turns off automatically if there is no rotation of the wheels for several minutes. • By pressing the plus button you increase the drive level of the motor. You can press the button as many times as there are assist levels (usually 9) •...
- Page 7 Astonic can never be held liable for incorrect use, violation of laws or regulations or for adjustments made by third parties. In addition, any changes to the settings will void your warranty.
- Page 8 Carefully attach the battery and check that it is properly attached to the holder. After charging, close the cover cap carefully. Never leave the battery empty! If you do not use the Astonic for a number of weeks, store the battery frost-free and half-charged.
- Page 9 Switch off the bicycle before charging. Plug in the charging port first, then the AC plug. Do not place anything on the charger while charging. Remove the AC plug from the wall outlet first and then from the charging port. Keep the battery out of the reach of children.
- Page 10 Replace the wear parts (such as brake pads) in time and with original Astonic parts. These are available in the webshop or by contacting us. Do not place the Astonic e-ride in an environment with a lot of moisture or high temperatures.
- Page 11 Regular cleaning is essential to maintaining your Astonic. We recommend monthly washing and conditioning. Sweat, dirt and salt from winter road maintenance or sea air can damage your bike, so you should clean your bike regularly and protect it from corrosion. Use clean water and maybe a little soap to dissolve grease residues.
- Page 12 This guarantee is only valid for the first purchaser! Any changes to the Astonic e-bike are not covered by this warranty! Damage caused by stunt riding or other mishandling is not covered by this warranty! Make sure you have carefully read the general terms and conditions and extended warranty conditions, for this we refer you to our website.
