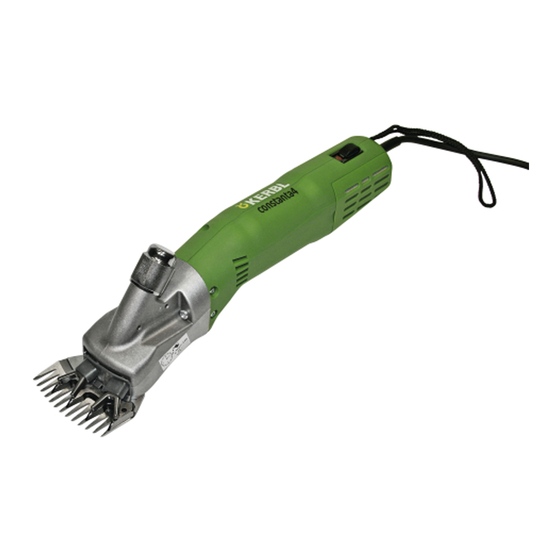

Summary of Contents for Kerbl constanta4

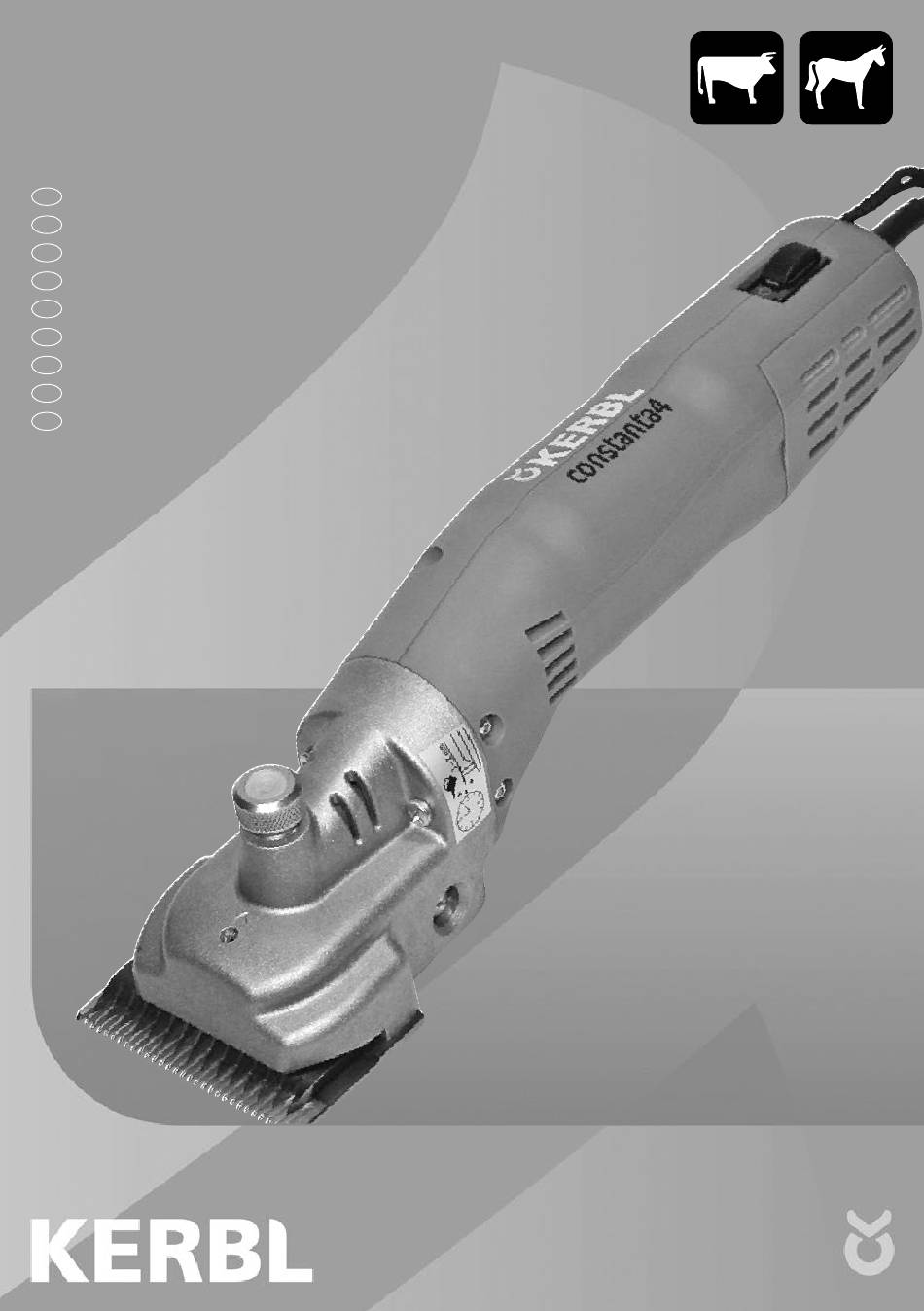

  • Page 1 18990, 18991, 18992 Bedienungsanweisung Mode d’emploi Instructions for use Istruzioni per l’uso Instrucciones de uso Gebruiksaanwijzing Bruksanvisning Brugsanvisning Instrukcja obsługi...
  • Page 2: Table Of Contents

    Instructions for use Table of contents 1. Safety regulations ..............22 1.1 General information.
  • Page 3: Safety Regulations

    1. Safety regulations 1.1 General information These safety regulations contain fundamental information, which must be observed during installation, operation and maintenance. All persons working on and with the clipper must read the operating instructions. The operating instructions must be permanently available at the machine usage site.
  • Page 4: Designated Use

    2.2 Technical data Type designation: ....Constanta4-R Supply voltage: ....230 V AC Constanta4-P Motor rating: .
  • Page 5: Correct Shear Blade Adjustment

    3.2 Correct shear blade adjustment Adjust as follows when placing into operation: Prior to clipping: Turn the tension screw up to the first noticeable resistance (fig. 2) with the machine switched off (fig. 1). Then continue to turn the tension screw by a further 1/4 rotation. During clipping: Reset the tension screw by a further quarter-turn (fig.
  • Page 6: Maintenance

    4. Maintenance Turn the machine off and pull the power supply plug before beginning maintenance work. Always disconnect the power supply first before working on the shear blades/clipper head. Do not touch the shear blade area even if the machine is switched off as long as the clipper is still connected to the current supply.
  • Page 7: Repairs

    5. Repairs 5.1 Introduction You can read up on troubleshooting measures on the next page. Only authorised technical personnel may carry out troubleshooting measu- res marked with an *. 5.2 Malfunction lists Contact an authorised service department to repair not listed malfunctions. Motor component Cause Troubleshooting...
  • Page 8: Environmental Protection And Disposal

    CE-/UKCA-conformity declaration Albert KERBL GmbH hereby declares that the product / device described in these instructions complies with the fundamental requirements and other relevant stipulations and regulations. The CE/UKCA mark confirms compliance with the Directives of the European Union or the...
  • Page 9: Spare Parts List

    8. Spare parts list CATTLE Reference Art. No. Amount Description 1 + 2 Shearing blade replacement depends on application, ask your local retailer! CR603 Screw for bottom cutter CR604 Blade CR605 Shaft screw for blades CR606 Blade spring leaf CR607 Spacer plate for blade spring CR608 Spur gear wheel (28 teeth) with shaft...
  • Page 10 8. Spare parts list HORSE Reference Art. No. Amount Description 1 + 2 Shearing blade replacement depends on application, ask your local retailer! CR603 Screw for bottom cutter CR604 Blade CR605 Shaft screw for blades CR606 Blade spring leaf CR607 Spacer plate for blade spring CP608 Spur gear wheel with shaft...
  • Page 11 Pos. 1 Pos. 2 Pos. 1 Pos. 2 3 - 5 mm...
  • Page 14 Albert Kerbl GmbH Kerbl Austria Handels GmbH Kerbl France Sarl Kerbl UK Limited Felizenzell 9 Wirtschaftspark 1 3 rue Henri Rouby, B.P 46 Soultz 8 Lands End Way 84428 Buchbach, Germany 9130 Poggersdorf, Austria 68501 Guebwiller Cedex, France Oakham, Rutland Tel.
