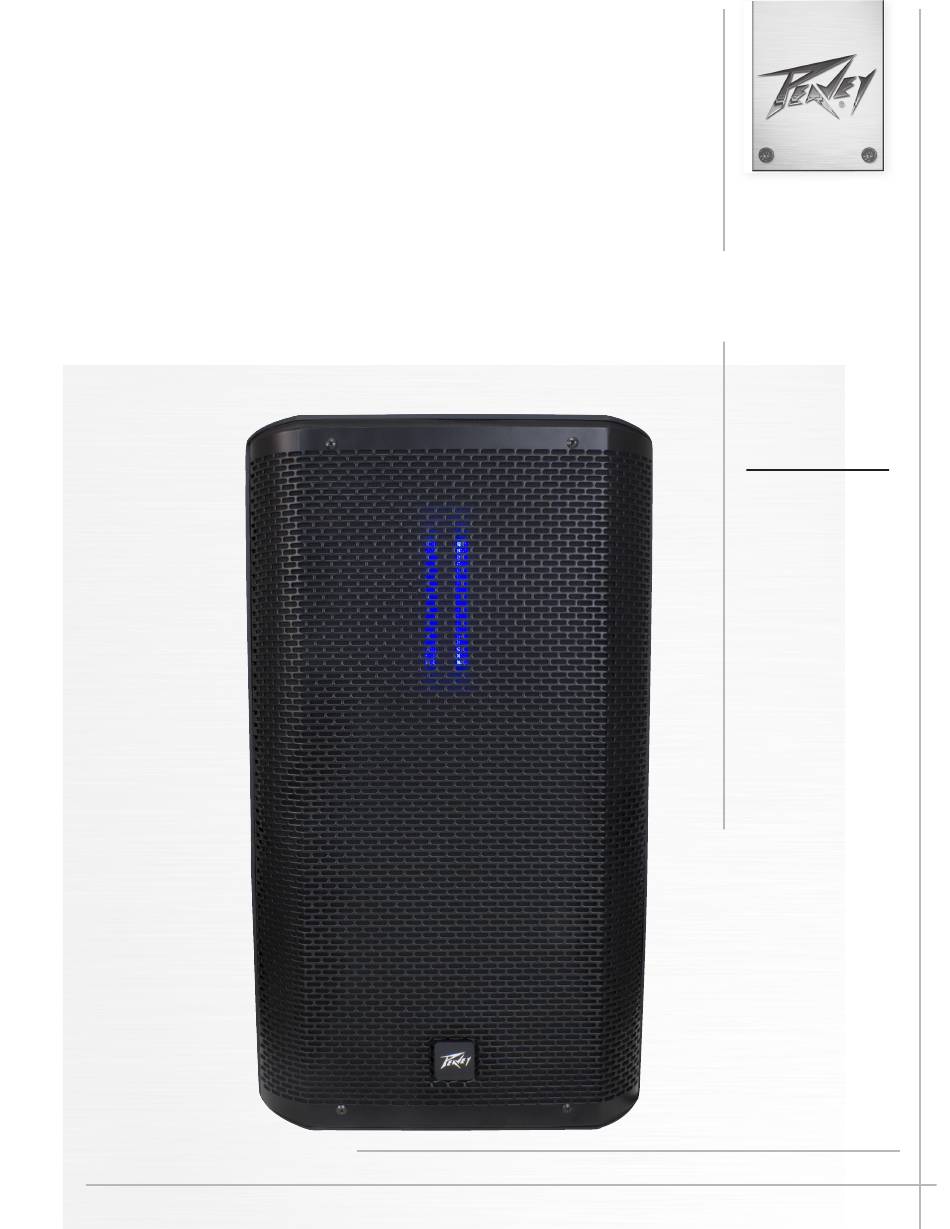

- Page 1 ™ Powered Speaker System Operating Manual www.peavey.com...
- Page 2 FCC/ICES Compliancy Statement This device complies with Part 15 of the FCC rules and Industry Canada license‐exempt RSS Standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, that may cause undesired operation. Le présent appareil est conforme aux CNR d’lndustrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) I’appareil ne doit pas produire de brouillage, et (2) I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user’s authority to use the equipment. Note – This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is ...
- Page 3 ENGLISH Introduction Thank you for purchasing the Peavey® RBN™110 powered speaker system, designed specifically for the profes- sional. The RBN™110 features a bi-amped power section that provides 550 watts of peak power for the woof- er and 500 watts of peak power for the ribbon driver tweeter, both with DDT™ compression. Featuring a 10”...
- Page 4 DJ or musical playback. A typical signal source for the line-level inputs of the Peavey RBN™110 would be a sound reinforcement mixing console (mixer) or the output from a CD player, MP3 player or tape deck. A dynamic microphone can be con-...
-
Page 5: On/Off Switch
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, THIS APPARATUS SHOULD NOT BE EXPOSED TO RAIN OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS. TO PREVENT THE LOWER REAR PANEL RISK OF FIRE HAZARD, REPLACE WITH SAME TYPE 250 VOLT FUSE. -
Page 6: Voltage Selector Switch
ground pin, a suitable grounding adapter should be used and the third wire should be grounded properly. To prevent the risk of shock or fire hazard, always be sure that the mixer and all other associated equipment are properly grounded. VOLTAGE SELECTOR SWITCH (4) The RBN™110 has a voltage selector switch to allow switching between an input power voltage of 120VAC to a range from 220VAC to 240VAC, all at either 50 or 60 cycles per second (Hz). - Page 7 UPPER REAR PANEL INPUTS (5) Two input channels are provided. The line-level input is of the medium impedance balanced type. The jack is a combo female XLR and 1/4” TRS connector. Sensitivity of this input is 0.42 volts for full output, when the MIC/ LINE switch (7) is in the LINE position.
- Page 8 UPPER REAR PANEL button for proper subwoofer set-up and connection. LCD Display (12) Provides a menu read-out manipulated and activated by the Push-To-Select button (13) Push-To-Select button (13) Rotary knob that allow the user to select and choose menu options on the LCD display screen (12). Pushing the button in till it detents makes a menu choice, selecting the action or option highlighted in the LCD screen.
- Page 9 Bolts used on custom mounting brackets must be certified to be a metric grade 8.8 or better. If there are any questions regarding the proper hardware or practices for safe flying or rigging of the Peavey RBN™110, contact a certified structural engineer, or consult with those local rigging companies who have...
- Page 10 OPERATING INSTRUCTIONS Connecting AC Power To The RBN™110 The RBN™110 comes with an 6-foot IEC connection AC power cord. If you are using an extension cord or power strip with this powered speaker, make sure it is of good quality and of a sufficient current capacity to maintain safety and maximize the power output capability of the RBN™110.
- Page 11 sible to use both the combo mic or line input and the 3.5mm input by setting the channel 2 Gain control for the combo input source, and then using the mobile devices headphone volume to adjust its volume. Note that the 3.5 mm jack mixes a stereo signal down to monophonic, as the RBN™110 is a single sound source.
- Page 12 the AC power, while the power cord IEC connector can make intermittent contact before finally becoming fully disconnected, e.g., as when wiggling the cord. RBN™110 DSP User Control Menu Operation A two-line, 16-character per line LCD and a rotary push-to-select encoder make up the interface for this prod- uct.
- Page 13 Processed output sends a subwoofer signal out the processed output. The Hi-pass filter on the RBN™110 woofer is raised to cross-over with the subwoofer processed output at the selected frequency. RBN 110 Location: (configuration submenu) This affects some of the dedicated processing of the woofer to account for boundary surfaces etc.
- Page 14 Floor Monitor Program EQ: Displays current EQ selection (EDM preset is the default on 1st time power up) (Presets) EDM, Voice, Rock, DJ ……. The program EQ selection is applied to the Graphic Equalizer and Bass enhancer. “Custom” is displayed if GEQ has been adjusted by the user. The last preset used, including a Custom one, is what will load the next time the RBN™110 is powered up.
-
Page 15: Troubleshooting
If the RBN™110 has been subjected to direct sunlight or excessive heat, the built-in thermal protection may have been triggered. If so, turn off the RBN™110 and let it cool for a sufficient amount of time. If there is still no output, contact your authorized Peavey dealer or the Peavey International Service Center. Hum or Buzz If the RBN™110 is producing a hum or buzz, this can be AC outlet related. - Page 16 If, after checking all the things listed to check and anything else you can think of to check safely, and the system still exhibits problems, carefully note all conditions and check with your Peavey dealer for advice. Care and Maintenance Your RBN™110 is a sturdy and durable product and will provide years of reliable use if properly cared for.
- Page 17 125 dB with music as a source, when measured at a distance of 1M and driven to full output capacity. The system shall utilize a high-performance 10” woofer and a Peavey RD™2.6 true ribbon driver tweeter. The nominal radiation pattern shall be 110° in the horizontal plane, and 30° in the vertical plane.
-
Page 19: Specifications
SPECIFICATIONS Frequency response: 73 Hz to 20 kHz Low frequency limit (-3 dB point): 73 Hz Usable low frequency limit (-10 dB point): 63 Hz Internal power amplifiers (@120 VAC line): Woofer - 550 watts peak available power Continuous Power: 275 watts @ less than 1% distortion Tweeter - 500 watts peak available power Continuous Power: 250 watts @ less than 1% distortion. - Page 20 DDT dynamic range: Greater than 14 dB THD and IM: Typically less than 0.1 % Damping factor: Greater than 100 @ 1000 Hz, 8 ohms Power requirements of Peavey® RBN™110 system (domestic): Nominal 200 watts, 120 VAC, 60 Hz Fuse Type For 120 VAC USE: International fuse classification T10AH 250V.
- Page 21 Warranty registration and information for U.S. customers available online at www.peavey.com/warranty or use the QR tag below Features and speci cations subject to change without notice. Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005...
