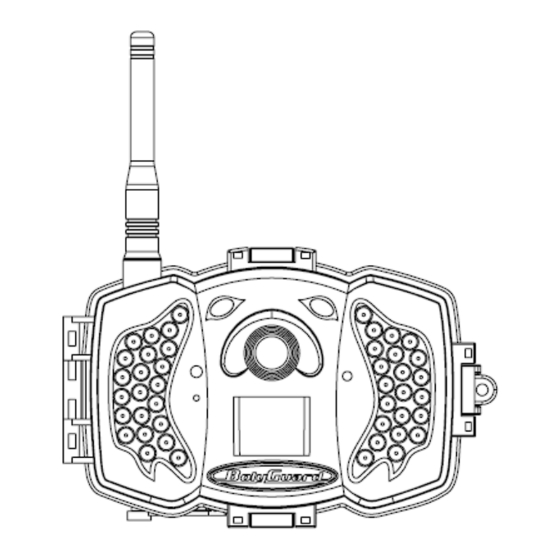

Infrared Mobile Digital Scouting Camera
User's Manual
SG983G series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG983G Series and is the answer not in the manual?

Questions and answers

Summary of Contents for BolyGuard SG983G Series

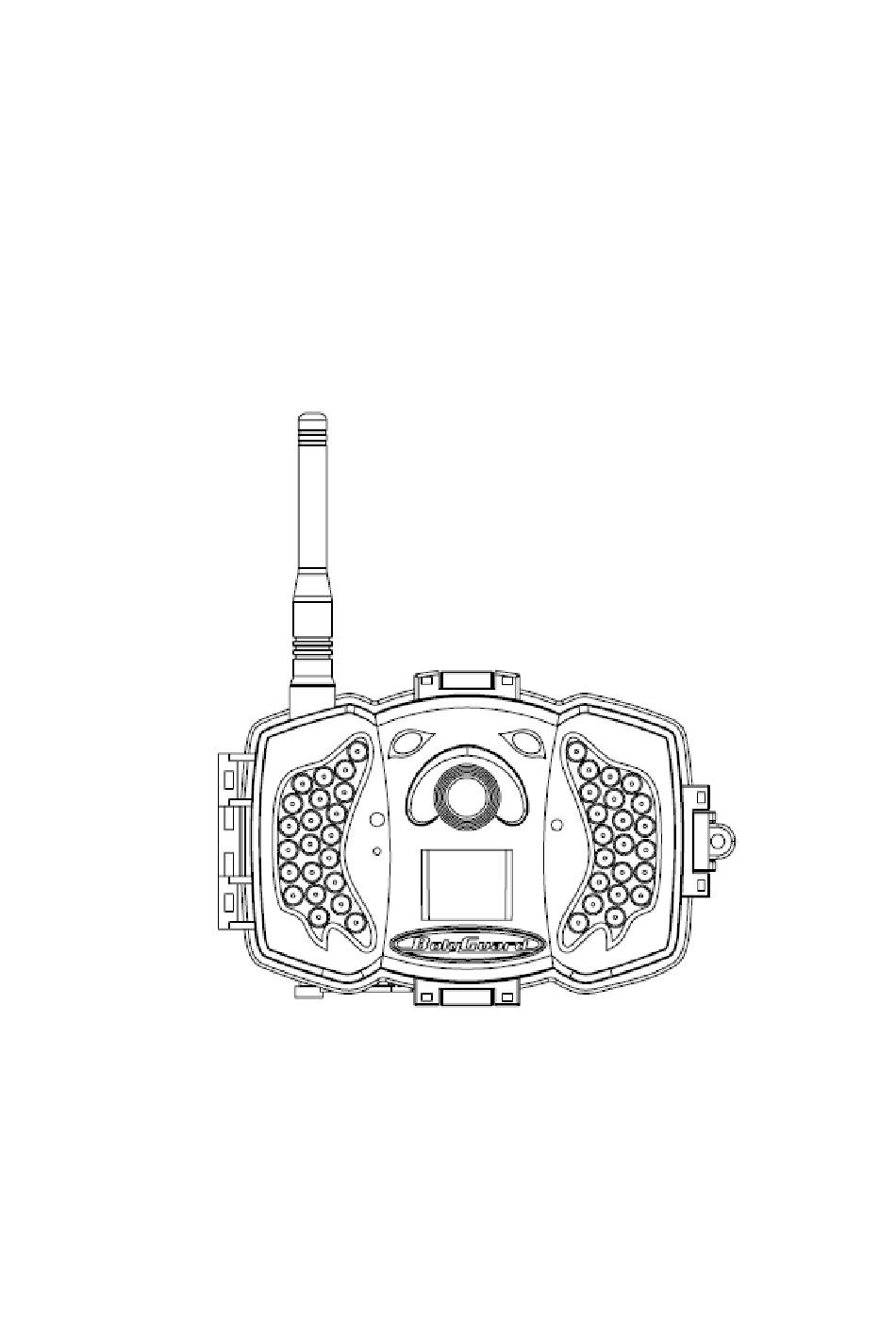

  • Page 1 Infrared Mobile Digital Scouting Camera User’s Manual SG983G series...
  • Page 2: Table Of Contents

    Content  Instruction.......... .1 General Description........ .2 Application.......... .3 Camera Overview........ .4 Shooting Information Display...... .5 Two Way Communication.........   Cautions............   Quick Start Guide.......... .1 Power Supply.......... .2 Insert SD card and SIM card.......  .3 Do the Camera Settings........
  • Page 3: General Description

      SG983G series 1 Instruction 1.1 General Description This camera, a digital scouting camera with 3G communication function, is a digital infrared surveillance camera, triggered by any movement of human or animal monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 30M pixels) or records video clips (1080 FHD).
  • Page 4: Camera Overview

      SG983G series 1.3 Camera Overview Take a few moments to familiarize with the camera controls and displays. It is helpful to bookmark this section and refer to it when reading through the rest of the manual. Figure 1 Diagram of camera functional indicators...
  • Page 5 SG983G series   Figure 2 Inner panel view Figure 3 Diagram of camera interfaces  ...
  • Page 6: Shooting Information Display

      SG983G series 1.4 Shooting Information Display When the camera is turned on (the power switch is slid to SETUP position), the current settings will be displayed on screen. Figure 4 Shooting information display is the correct SIM card status and the available space of SD card should be a none zero value.
  • Page 7   SG983G series your service provider. It supports following bands :GSM with 850MHz, 900MHz, 1800MHz and 1900MHz ; WCDMA with 850MHz, 900MHz, 1900MHz and 2100MHz.  ...
  • Page 8: Cautions

      SG983G series 2 Cautions  The working voltage of the camera is 6V. The camera is supplied by the power adapter or 8 AA batteries.  Please install batteries according to shown polarity.  Please insert the SD card before power on camera. The camera has no internal memory for saving images or videos.
  • Page 9: Quick Start Guide

    SG983G series     3 Quick Start Guide 3.1 Power Supply Use 8 AA batteries. High-density and high-performance alkaline or lithium batteries are recommended. Also 6V external power supply and solar panel are supported. The battery can be just a backup for emergency use support).
  • Page 10     SG983G series 2) Set the camera parameters First, select your country and carriers (step1) according to your SIM card and input your receiving phone number in “administrator number” and receiving e-mail address in “Receive Email 1” (step3). For first time use, we suggest you to use default settings (step2), any settings you want to change, please click “Change Setting”.
  • Page 11 SG983G series     After finish above settings, click “Check WAP/Internet Parameters” to check whether you have all parameters filled in. Then save the GSM folder to the root directory of your SD card (step4). If your country or SIM card operator is not in the list, try to find “Others”, then ask the SIM card operator for the...
  • Page 12: Manually Send A Mms Or Gprs Photo

    SG983G series     and fill in. Also you need to fill in some parameters(send email server, port, email address and password) of an email account as sending email. We suggest you use a gmail. Note, only SMTP is supported by the camera when sending email.
  • Page 13: Sms Control

        SG983G series phone or Email in your mailbox. 3.5 SMS Control When the camera is working, you can send a text message “#T#” to your camera’s SIM card number to get an on spot image or use our Android application tools. Note you need to set SMS control as ON when using SMS command.
  • Page 14: Work Mode

       SG983G series 4 Advanced Operations This chapter explains the advanced operations for customizing the camera settings. Work Mode Setup mode: to program camera or to playback the photos or video clips. Hunting mode: when animal or human intrudes into the monitoring...
  • Page 15: Setting Items

       SG983G series or “◄” to change different item pages or select the different options. Press “OK” to save the settings. 4.2.1 Setting Items Setting Description Items There are three camera modes: Photo, Video and Pic+Video. You can enter the main Camera menu to set the camera mode.
  • Page 16    SG983G series Time lapse means the camera can capture images or videos at a preset time interval regardless of whether motions are detected. The default parameter is Off, which means the time lapse function is disabled. Changing this...
  • Page 17    SG983G series setting time duration in a day. In the rest of the time the camera is sleeping. Set Work Hour as off means the camera works all day. There are 2 Send to modes: 1 Phone MMS: send images to mobile phone.
  • Page 18    SG983G series on Video mode, the camera will send a SMS or video at the preset time. The SMS will show you how many video clips the camera has taken within 24 hours. If you choose “Daily”, you need to set the daily report time: xxH, xxM.
  • Page 19: Default Set

       SG983G series preset time clock for preset times. The audio file must be saved in the directory of \DCIM\BMCIM\ with a name of AUDIxxxx(from 0000 to 9999).WAV after format the SD card and setting the game call as on mode, or choose the audio file(format of WAV, AVI,MP3) in Windows APP.
  • Page 20 SG983G series    4.2.2 Default Set Setting Items Default Options Description Camera Photo Video, Mode Pic+Video Security Mode Photo Size 30MP 20MP 14MP Video Size 1920x1080 1280x720 640x480 Photo Burst 1 Photo 2-3 Photos Video Length 10 Sec.
  • Page 21 SG983G series    Instant, SMS Control Two way communication Game Call Set the time and frequency of audio playback Study Code Enter Language English Suomi, Deutsch, Svenskt, Dansk Norsk, čeština Italiano, Pусский Beep Sound Camera Posit A to Z...
  • Page 22    SG983G series 4.3 Use the Remote Control When it’s in Security Mode, you can use the remote control to easily arm (button A) or disarm (button D). Also you can dial the emergency numbers via button C in case of emergency.
  • Page 23: Load Or Remove A Wireless Sensor

       SG983G series press OK button, then press button A of the remote control . When it's successful, there will be a "√” before RCH. Note, it has not entered Security mode even you set security mode as on, you need to press the left key to enter security mode quickly or wait for about two minutes till there is an “A”...
  • Page 24    SG983G series  ...
  • Page 25    SG983G series  ...
  • Page 26: Change The Settings Via Android App Or Sms

       SG983G series 4.5 Change the Settings via Android APP or SMS When you are far away from your house, you can get spot photos or change camera settings via our android application tools or SMS. 4.6 User Level There are two user levels: administrator and normal users.
  • Page 27: Use Android App

       SG983G series Set normal user administrator Receive emergency calling administrator, normal user Send SMS for on spot picture administrator Receive MMS when triggered administrator, normal user Check camera status administrator, normal user Get help information administrator, normal user 4.7 Use Android APP...
  • Page 28    SG983G series No Function SMS Command Set Normal #n#13800138001#13800138002#1380 Users Phone 0138003# Number Set MMS #m#http://mmsc.monternet.com#10.0.0. Parameters 172#80#cmwap# name#password# (The example parameters are for the carrier of China Mobile) Set Email #s#bmctest123@sina.com#bmc123#25 Parameters #cmnet#smtp.sina.com#name#passwor d#SSL# Set Receive #r#mail1@163.com #...
  • Page 29    SG983G series Change Photo #e#b1# (1~6 photos) Burst Change Video #e#fh#(720p) or #E#fl#(VGA) Size Change Video #e#v5# or #E#v30# (the number after V Length is seconds) Change Date #e#t# (adjustment the time) Time Change Time #e#l1h# (1 hour) or #e#l5m# (5 min)
  • Page 30: Appendix I: Pir Detection Zone

    SG983G series  Ⅰ:    Appendix I: PIR Detection Zone Figure 5 shows Bolymedia’s 5 kinds of detection range at different detection angles. This camera is super long range with 60 degree. Figure 5 PIR Detection Zone The PIR detection angle (α) is just smaller than the field of view (FOV) angle (β).
  • Page 31 SG983G series  Ⅰ:    patented. The new patented PIR’s detection range can reach to 100ft (in good environments). Figure 7 shows the compared detection zone between normal PIR and the new patented PIR. Figure 7 Comparison of Detection Zones of new and existing PIRs ...
  • Page 32: Appendix Ii: Error Code

    SG983G series Ⅱ Appendix : Error Code Appendix II: Error Code Code Meaning Description Possible cause: 1. The user forgets to input the receiving cellphone number. Non-existent 2. The user forgets to input the receiving  address E-mail address. Suggestion: 1.
  • Page 33 SG983G series Ⅱ Appendix : Error Code If it always shows 3926,3927 or 3928, maybe there is a hardware defect. Please send camera back for repair (very small probability). Possible cause: 1. The GSM network is not good or not well covered with the GPRS network.
  • Page 34 SG983G series Ⅱ Appendix : Error Code setting error; 1.Please check to make sure your SIM card has enough balance. 2. Please check the MMS settings. Many codes in the list are used for debugging in the product design phase.
  • Page 35 SG983G series Appendix Ⅲ: Technical Specifications Appendix Ⅲ: Technical Specifications 14MP Color CMOS, Image Sensor 20MP , 30MP Interpolation F/NO=2.2; Lens FOV (Field of View)=60° PIR Detection Range 30m/100ft Display Screen 3’’ LCD Memory Card From 8 MB to 32 GB 30MP=6400×4800...
  • Page 36 SG983G series Appendix Ⅲ: Technical Specifications Security FCC, CE, RoHS Authentication *without battery  ...
  • Page 37: Appendix Ⅳ: Parts List

    SG983G series Appendix Ⅳ: Parts List Appendix Ⅳ: Parts List Part Name Quantity Digital Camera Wireless Remote Control USB Cable Belt User’s Manual Antenna Warranty Card 433MHz Wireless option Sensor Website Information: Down load the APP software from here: http://www.bolyguard.com/download.html (Version 1.0)
  • Page 38 FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
