Summary of Contents for For-x X-500DSP

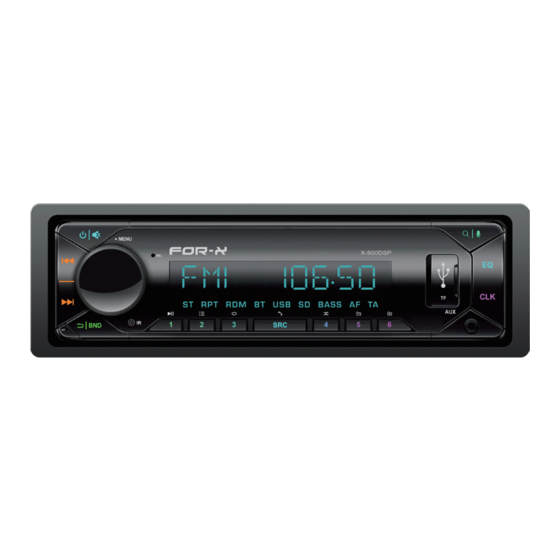

- Page 1 User Manual CAR MP3 RADIO RECEIVERS...
-
Page 2: Table Of Contents
CONTENTS Warnings&Precautions ....................1 EN Product Features .....................1 EN Installation ....................... 2 EN Accessorylist ......................3 EN Dimension(UNIT:MM) ..................... 3 EN Wiring Diagram ....................... 4 EN Remote Operation ....................5 EN Bluetooth Operation ....................5 EN Radio Operation ......................6 EN USB&SD Playback ....................6 EN AUX Input ........................7 EN External Microphone ....................7 EN... -
Page 3: Warnings&Precautions
WARNINGS & PRECAUTIONS To avoid risk of serious injury or possble violation of laws,please read the following thoroughly before installation or connecting. This product is designed specifically for use with 12 volt, negative ground electrical systems only. Having the wiring and installation done by expert. Be sure to diconnect the cable from the negative battery terminal while installtion. - Page 4 2 EN...
-
Page 5: Accessorylist
ACCESSORY LIST Please check the following accessories after opening the package: Remote x1 ISO Male Connector x2 MENU BAND Diassemble keys x2 User Manual / Warranty Card / Service Manual Service Manual Warranty Card 35.0 MUNE X-500DSP 3 EN... -
Page 6: Wiring Diagram
B4: Front Left (+) A5: Battery(+) B5: Front Right (-) A6: SWC/SWI Control Wire 1 B6: Front Right (+) A7: SWC/SWI Control GND B7: Rear Right (-) A8: SWC/SWI Control Wire 2 B8: Rear Right (+) MUNE X-500DSP 4 EN... -
Page 7: Remote Operation
2. Turn on the phone’s Bluetooth to Search X-500DSP. 3. Click on the X-500DSP on the phone to connect. After the connection is successful, the BT will stop flashing. 4. When pairing is complete,the mobile phone audio will automatically transfer to the car audio system whenever a call is made or received, or when the mobile phone plays music. - Page 8 RADIO Europe Area: 87.5 ~ 108.0 KHz (50KHz / Step) U.S.A.Area: 87.5~107.9 KHz (200 KHz / Step) FM Frequency Range ASIA Area: 87.5~108.0 KHz (100 KHz / Step) RUSS Area: 65.0 ~74.0 KHz (30 KHz/ Step) 18FM / 12AM Preset 6 EN...
-
Page 9: External Microphone
X-500DSP EXTERNAL MICROPHONE Rear Panel 3.5mm Microphone(Optional) External Microphone jack Adjust the microphone angel Note: Since the panel microphone is far from the driver's position, when using an external microphone, you can get better voice calls. 7 EN... -
Page 10: Audio Settings
AUDIO SETTINGS 1. Press the knob to enter the [MENU]. 2. Turn the knob to select [AUDIO], then press the knob. Audio Settings List Menu Adjustment SW LEVEL SVOL -8 ~ +8 PRESET EQ USER/NATURAL/POP/CLASSIC/ROCK/JAZZ/FLAT/ COUNTRY/OPTIMAL 30HZ/60HZ/80HZ/120HZ/160HZ/250HZ/400HZ/600HZ/ 1.5KHZ/2KHZ/2.5KHZ/3KHZ/3.5K/4K/5K/6K/7K/8K/9K/11K/ 12K/13K/14K/15K/16K/17K/18K/19K LOUD OFF/ON BASS BASS -7 ~ +7... -
Page 11: Clock And Date Settings
AUDIO SETTINGS Middle Adjustment 1. Turn the knob to select [MIDDLE], then press the knob. 2. Turn the knob to select [ -7 to 7 ]. Tone Adjustment 1. Turn the knob to select [TONE], then press the knob. 2. Turn the knob to select [ -7 to +7 ]. Treble Adjustment 1. -
Page 12: Xover Setup
XOVER SETUP 1. Press the knob to enter the [MENU]. 2. Turn the knob to select [X/OVER], then press the knob. 3. Turn the knob to select [SUB SET], then press the knob. Subwoofer Xover List Menu Adjustment F+R SET HPF FREQ OFF/30HZ/40HZ/50HZ/63HZ//80HZ/100HZ/ /125HZ/160HZ/200HZ/250HZ/... -
Page 13: Dta Settings
DTA SETTINGS 1. Press the knob to enter the [MENU]. 2. Turn the knob to select [DTA SET], then press the knob. DTA Settings List Menu Adjustment SMALL CAR/MEDIUM CAR /LARGE CAR CAR TYPE USER/FRONT R/FRONT L/CENTER POSITION DELAY UNIT MS/CM/INCH FRONT LEFT FL 0CM - 680CM DISTANCE... -
Page 14: Time Alignment(Distance)
TIME ALIGNMENT(DISTANCE) 1. Press the knob to enter the [MENU]. 2. Turn the knob to select [DTA SET], then press the knob. 3. Turn the knob to select [DISTANCE], then press the knob. 4. Turn the knob to select[F LEFT/F RIGHT/R LEFT/R RIGHT/SUBWOOFER] to adjustment. -
Page 15: Tuner Settings
TUNER SETTINGS 1. Press the knob to enter the [MENU]. 2. Turn the knob to select [TUNER], then press the knob. Tunner Settings List Menu Adjustment TUNER MONO/STEREO ST NEWS/AFFAIRS/INFO/SPORT EDUCATE/DRAMA/CULTURE DX/LO C SCIENCE/VARIED/POP M/ROCK ARER EUROPE/USA/ASIA/RUSSIA M/EASY M/LIGHT M/CLASSICS ON/OFF OTHER M/WEATHER/FINANCE TA ON/OFF... -
Page 16: Display Settings
DISPLAY SETTINGS 1. Press the knob to enter the [MENU]. 2. Turn the knob to select [DISPLAY], then press the knob. Display Settings List Menu Adjustment SPECTRUM OFF/ON ID3 TAG OFF/ON MODE SEL C-MODE 1/C-MODE 2/C-MODE 3 BRIGHT MANUAL M-LEVER 1~8 AUTO A-LEVER 1~8→START→18:00→STOP→07:00 VERSION VER 1.0... -
Page 17: Trouble Shooting
TROUBLE SHOOTING Not work Remedy Replace the fuse: 10A(Red) Fuse blown Loose panel contact Take out the panel and reinstall Not responding System problem Reset the unit No bass Enter AUDIO to set SVOL Subwoofer setting level is too small Can't turn on voice Connect Bluetooth Bluetooth is not connected... -
Page 18: Specification
SPECIFICATION Power Supply Requirement DC 12V Maximum Power Output 60W X 4CH Speaker Impedance 4 - 8 Ohm Unit Dimensions(WxHxD) 178 X 111 X 50 mm Weight 0.6 kg Fuse 10 A 65MHz-108.0MHz FM Frequency Range 522 KHz~1620 KHz AM Frequency Range Preset Usable Audio Formats: MP3/WMA... -
Page 19: App Contro
APP CONTRO X-500DSP. X-500DSP 17 EN...
