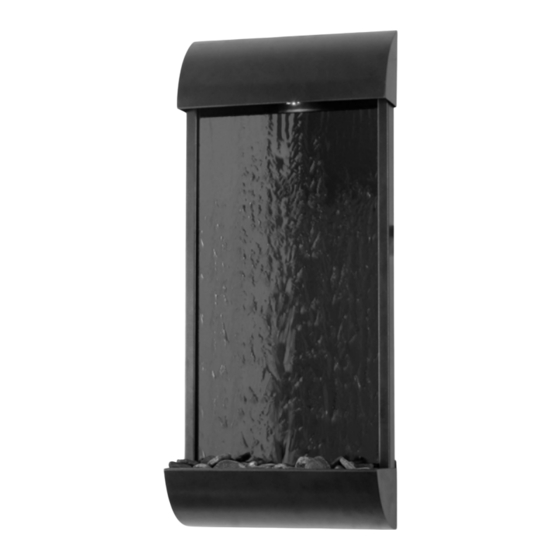

Kenroy Home VALE Care And Instructions Manual

Wall fountain
Hide thumbs

Advertisement

Quick Links

Download this manual
VALE WALL FOUNTAIN
Care and Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the VALE and is the answer not in the manual?

Questions and answers

Related Manuals for Kenroy Home VALE

Summary of Contents for Kenroy Home VALE

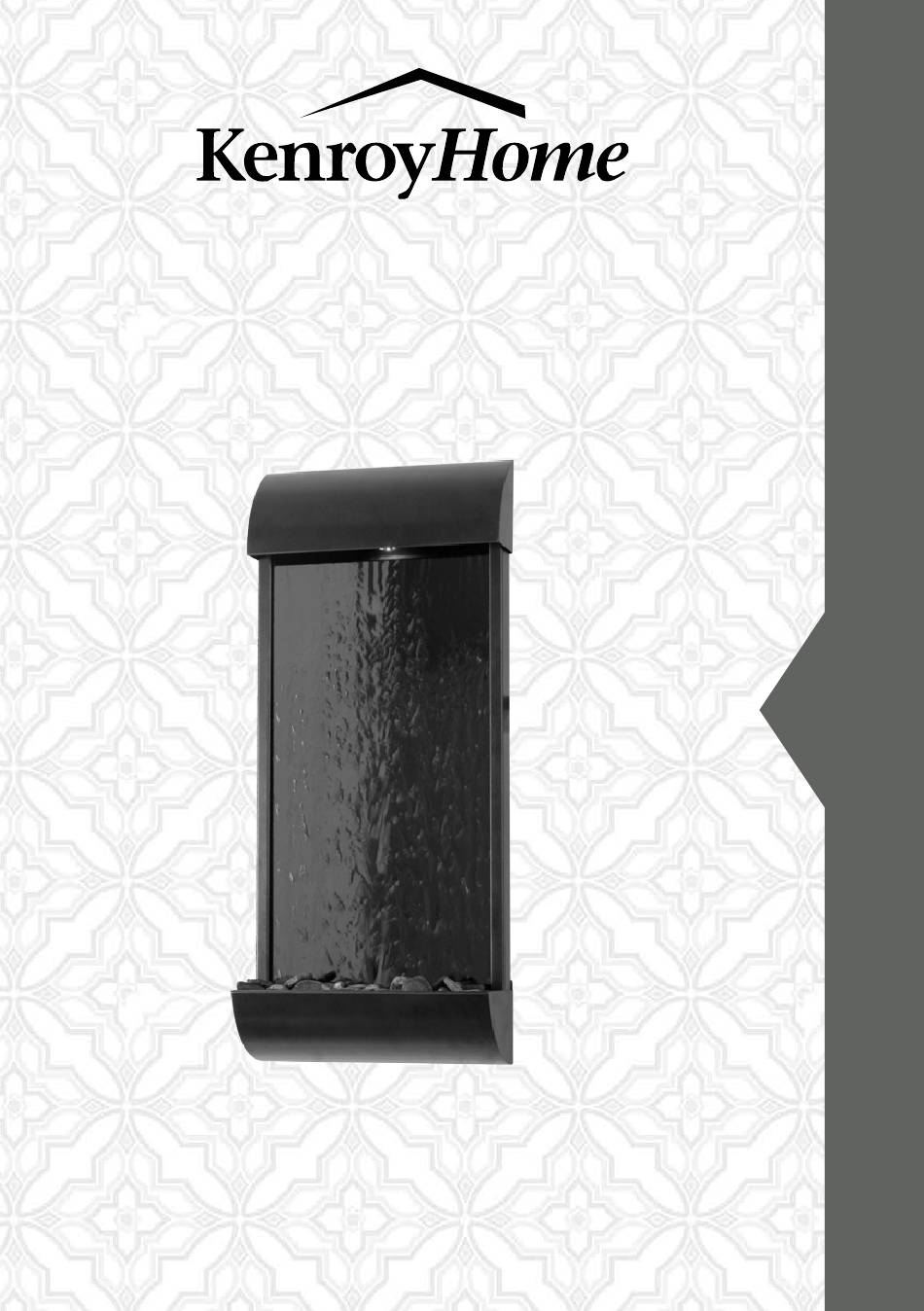

  • Page 1 VALE WALL FOUNTAIN Care and Instruction Manual...
  • Page 2 51055ORB ASSEMBLY INSTRUCTIONS Thank you for purchasing a Kenroy Home water feature, you are now only minutes away from filling your home or outdoor living space with peaceful displays. Our guarantee backs all of our water features, please do not hesitate to contact our...
  • Page 3 51055ORB ASSEMBLY INSTRUCTIONS Please reference the separate parts list and ensure that all pieces are included in the package prior to assembly. SUGGESTED TOOLS NOT SUPPLIED PHILLIPS DRILL LADDER PENCIL SAFETY GOGGLES LEVEL SCREWDRIVER More than one person may be required to complete the assembly of this product.
  • Page 4 51055ORB ASSEMBLY INSTRUCTIONS Please carefully open on a so surface to avoid damage. Insert the light assembly (I) into the slot on back of fountain body (B). Slot Place roof (A) onto the fountain body (B) and secure with clips on back of fountain body (B). Attach the pump (G) to the rubber hose.
  • Page 5 51055ORB ASSEMBLY INSTRUCTIONS Place pump access door (C) into fountain body (B) to cover the entry. Peel paper backing from the wall spacer pad (K) and apply to back of the fountain body (B). Place mounting bracket (D) on wall in desired location, ensure it is level and mark holes.

  • Page 6: Final Steps

    51055ORB ASSEMBLY INSTRUCTIONS Optional, if not using cord covers skip to step 7. Place cord channel (F) on wall and mark holes. Drill 6 mm (1/4”) pilot holes on marked spots and insert (2) anchors (M). (If fastening to studs, skip this step.) Attach cord channel (F) to wall with (2) supplied screws (L).
  • Page 7 51055ORB ASSEMBLY INSTRUCTIONS PUMP SAFETY & TROUBLESHOOTING To clean the pump To keep water clean Unplug the pump from the electrical Periodically change water outlet. Use a small soft brush or place it to prevent algae buildup. under a water stream to remove debris. Tube Rotor/Impeller Impeller cover...
  • Page 8 51055ORB ASSEMBLY INSTRUCTIONS PUMP SAFETY & TROUBLESHOOTING cont. If abnormal noise is heard during operation (with water): • Disconnect the power supply and then remove the pump front cover and impeller cover. • Use hand to grip the impeller, gently pull the impeller/rotor assembly out of the pump housing.

  • Page 9: Frequently Asked Questions

    51055ORB ASSEMBLY INSTRUCTIONS FREQUENTLY ASKED QUESTIONS What should I consider when selecting a water feature? In addition to your personal style tastes, be sure you have an area for your water feature that can be safely exposed to water, as splashing can occur. Also take into consideration what a water feature can add to your environment: the sound of flowing water or decorative lights.
  • Page 10 51055ORB ASSEMBLY INSTRUCTIONS FREQUENTLY ASKED QUESTIONS CONTINUED How much water do I need to keep in the water feature? Where possible in our water features, we have included fill lines to help you visualize the water level required for proper function. If your water feature does not include fill lines, please check the instruction manual for water capacity.
  • Page 11 51055ORB ASSEMBLY INSTRUCTIONS FREQUENTLY ASKED QUESTIONS CONTINUED How do I change my pump speed? Depending on the type of pump, you will need to either move the slider or turn the knob. Flow control valve Maximum Minimum How do I clean my pump? 1.
  • Page 12 www.kenroyhome.com...
